Запчасти Case CX55B (35.310.AA[08]) - CONTROL VALVE SECTION, TRAVEL INDEPENDENCE (35) - HYDRAULIC SYSTEMS

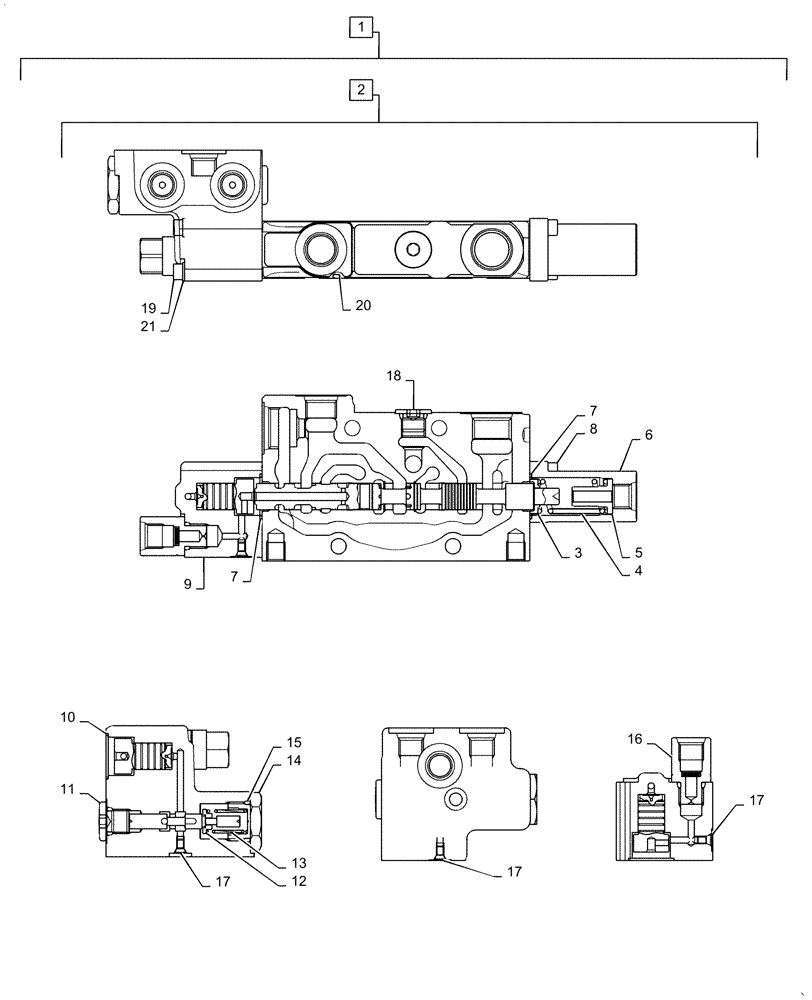

Схема запчастей Case CX55B - (35.310.AA[08]) - CONTROL VALVE SECTION, TRAVEL INDEPENDENCE (35) - HYDRAULIC SYSTEMS
1
15
17
14
5
21
17
19
12
13
4
10
9
2
18
6
16
3
8
7
17
11
7
20

Артикул

Название

Примечание

Количество

1

PS30V00002F1

CONTROL VALVE

Assy,Incl 2 - 21

1шт.

2

PS30V00018F1

SPOOL

Section Assy, Travel Independence, Incl 3 - 21

1шт.

3

PV30V00006S004

SEAT/SLOT

Spring

1шт.

4

PS30V00015S004

SPRING

1шт.

5

PS30V00007S005

SPRING SEAT

1шт.

6

PS30V00007S006

CAP

1шт.

7

PV30V00010S011

O-RING

2шт.

8

PV30V00010S012

SCREW

Socket Head

2шт.

9

PS30V00019F1

BODY

Assy

1шт.

10

PV30V00010S011

O-RING

1шт.

11

YA30V00008S064

PLUG

Assy

1шт.

12

PS30V00019S006

SPRING SEAT

1шт.

13

PS30V00019S007

SPRING

1шт.

14

PS30V00019S008

PLUG

1шт.

15

ZD12P01800

O-RING

1шт.

16

PS30V00019S010

PLUG

Assy

1шт.

17

PS30V00019S011

PLUG

3шт.

18

PS30V00008S033

PLUG

Assy

1шт.

19

PS30V00018S011

BOLT

Socket Head

2шт.

20

PS30V00007S014

O-RING

1шт.

21

PS30V00018S013

WASHER

2шт.

Выбрано товаров: 21
