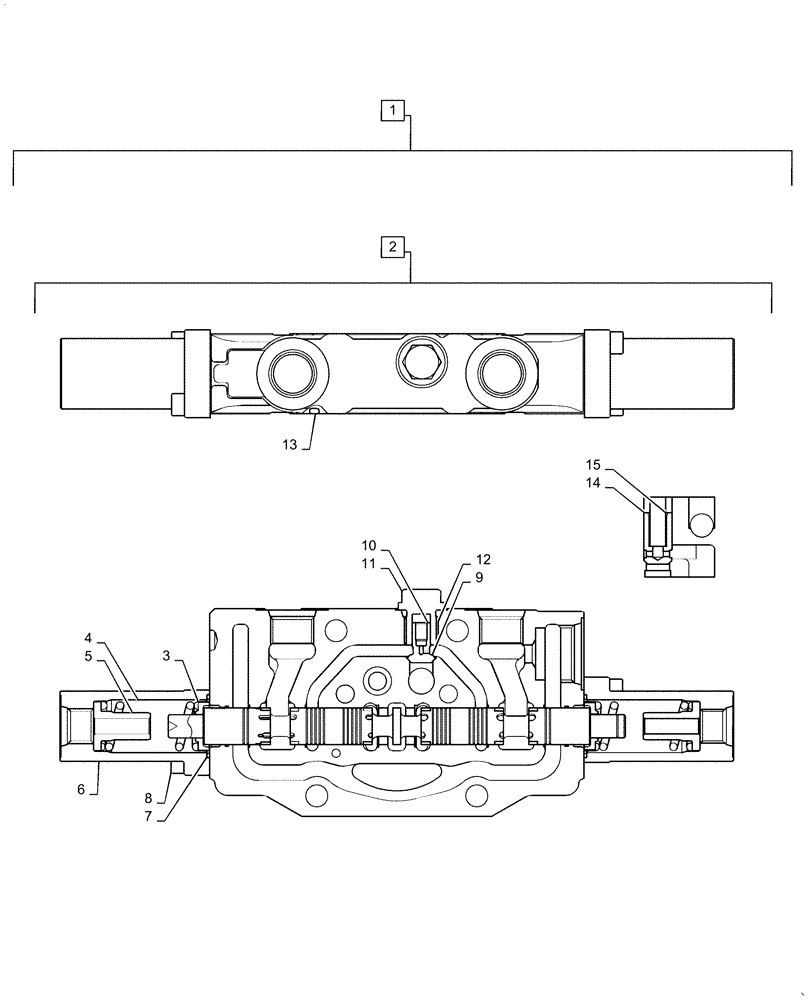

Запчасти Case CX55B (35.310.AA[07]) - CONTROL VALVE SECTION, DOZER (35) - HYDRAULIC SYSTEMS

1

PS30V00002F1

CONTROL VALVE

Assy, Incl 2 - 15

1шт.

2

PS30V00016F1

SPOOL

Section Assy, Dozer, Incl 3 - 15

1шт.

3

PV30V00006S004

SEAT/SLOT

Spring

2шт.

4

PS30V00007S004

SPRING

2шт.

5

PS30V00007S005

SPRING SEAT

2шт.

6

PS30V00007S006

CAP

2шт.

7

PV30V00010S011

O-RING

2шт.

8

PV30V00010S012

SCREW

Socket Head

4шт.

9

PS30V00007S009

POPPET

1шт.

10

PS30V00007S010

SPRING

1шт.

11

PS30V00007S011

PLUG

1шт.

12

ZD12P01100

O-RING

1шт.

13

PS30V00007S014

O-RING

1шт.

14

PS30V00009S009

POPPET

1шт.

15

2436U1757S25

SPRING

1шт.
