Запчасти Case CX55B (35.310.AA[03]) - CONTROL VALVE SECTION - BUCKET, TRAVEL LEFT (35) - HYDRAULIC SYSTEMS

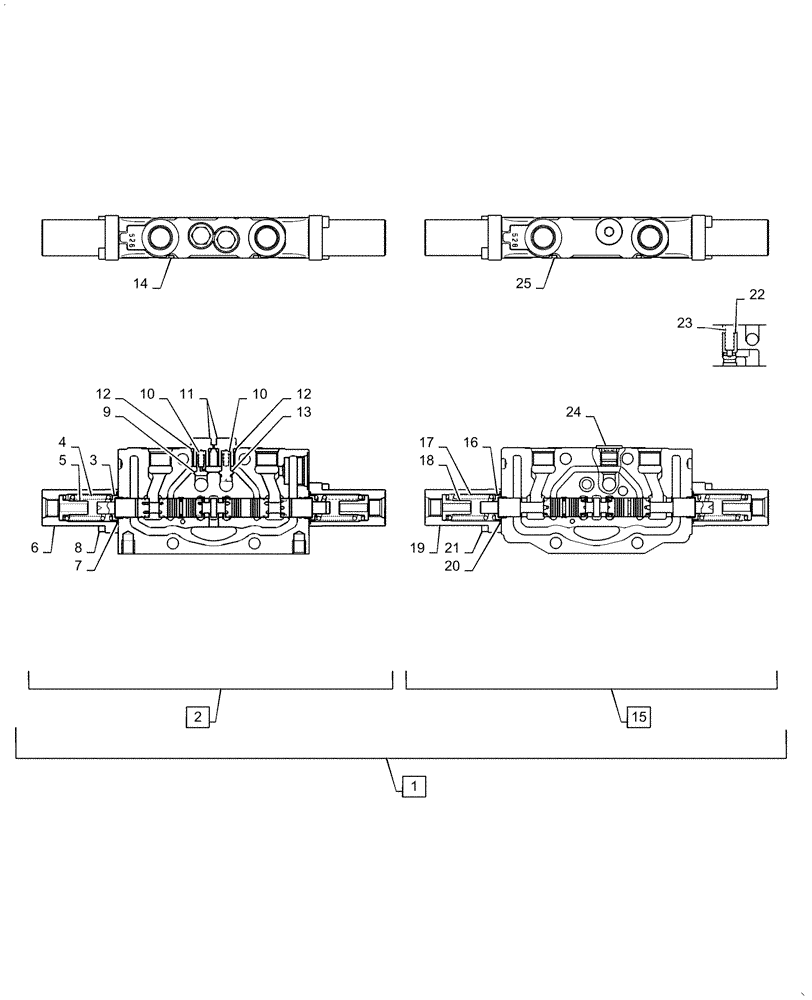

Схема запчастей Case CX55B - (35.310.AA[03]) - CONTROL VALVE SECTION - BUCKET, TRAVEL LEFT (35) - HYDRAULIC SYSTEMS
13
20
15
24
11
2
10
6
1
16
8
19
17
3
14
25
23
7
12
4
12
22
5
18
21
9
10

Артикул

Название

Примечание

Количество

1

PS30V00002F1

CONTROL VALVE

Assy, Incl 2 - 25

1шт.

2

PS30V00007F1

CONTROL VALVE

Section Assy, Bucket, Incl 3 - 14

1шт.

3

PV30V00006S004

SEAT/SLOT

Spring

2шт.

4

PS30V00007S004

SPRING

2шт.

5

PS30V00007S005

SPRING SEAT

2шт.

6

PS30V00007S006

CAP

2шт.

7

PV30V00010S011

O-RING

2шт.

8

PV30V00010S012

SCREW

Socket Head

4шт.

9

PS30V00007S009

POPPET

1шт.

10

PS30V00007S010

SPRING

2шт.

11

PS30V00007S011

PLUG

2шт.

12

ZD12P01100

O-RING

2шт.

13

PS30V00007S013

POPPET

1шт.

14

PS30V00007S014

O-RING

1шт.

15

PS30V00009F1

CONTROL VALVE

Section Assy, Travel Left, Incl 16 - 25

1шт.

16

PV30V00006S004

SEAT/SLOT

Spring

2шт.

17

PS30V00007S004

SPRING

2шт.

18

PS30V00007S005

SPRING SEAT

2шт.

19

PS30V00007S006

CAP

2шт.

20

PV30V00010S011

O-RING

2шт.

21

PV30V00010S012

SCREW

Socket Head

4шт.

22

PS30V00009S009

POPPET

1шт.

23

2436U1757S25

SPRING

1шт.

24

PS30V00008S033

PLUG

Assy

1шт.

25

PS30V00007S014

O-RING

1шт.

Выбрано товаров: 25
