(35.300.AQ[02]) - HYDRAULIC OIL RESERVOIR

Запчасти Case CX55B (35.300.AQ[02]) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

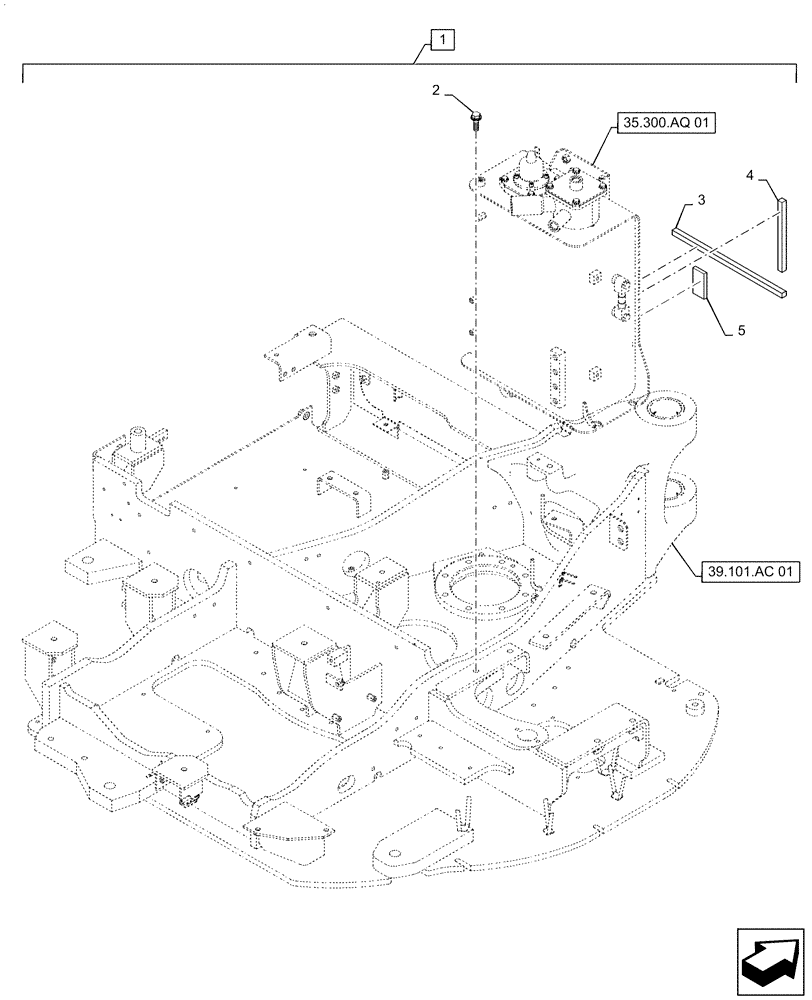

Схема запчастей Case CX55B - (35.300.AQ[02]) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS
35.300.aq 01
5
1
2
39.101.ac 01
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PS33H00003F1

RESERVOIR, HYDRAULIC

Tank Install, Hydraulic, Incl 2 - 5

1шт.

2

ZM73C12040

BOLT,M12x40mm - Course Thread

Sems

4шт.

3

PS33H01010P1

INSULATION

1шт.

4

PS33H01009P1

INSULATION

1шт.

5

PS33H01025P1

RUBBER STRIP

1шт.
