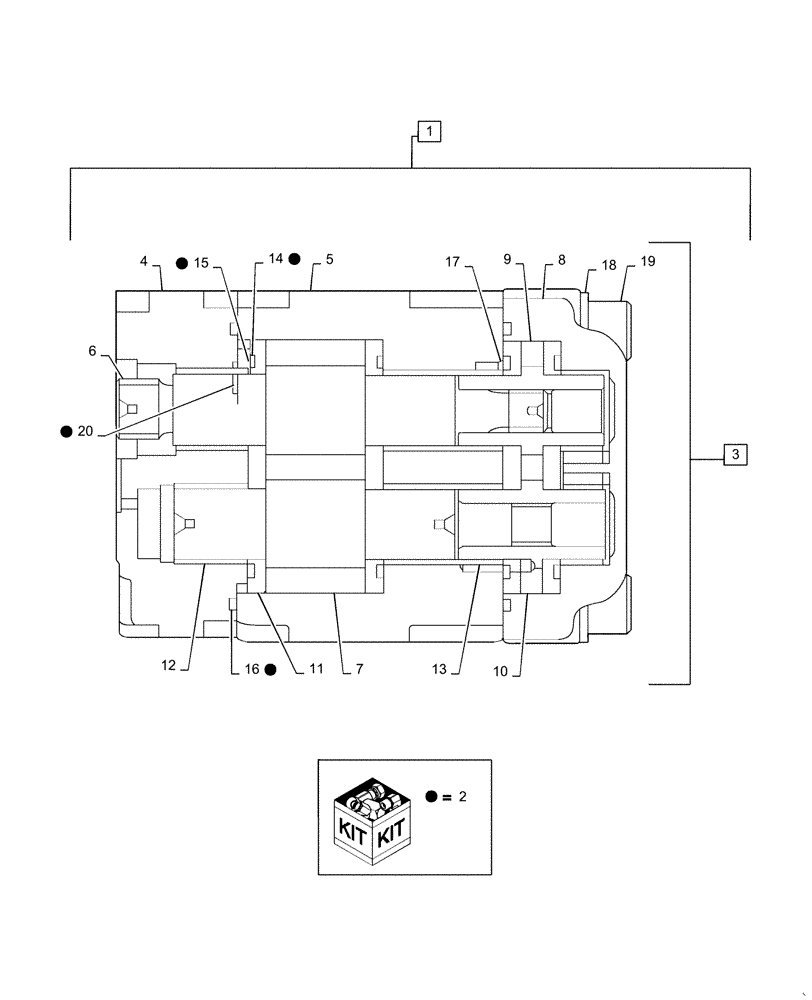

Запчасти Case CX55B (35.106.AD[04]) - HYDRAULIC PUMP, ASSY, CAB (35) - HYDRAULIC SYSTEMS

1

PS10V00002F1

HYDRAULIC PUMP

Assy, Incl 2 - 20

1шт.

2

PS10V00001R100

KIT

Repair, Incl 20 (1), 16 (2), 14 (4), 15 (4)

1шт.

3

PS10V00003F1

HYDRAULIC PUMP

Assy, Gear, Incl 4 - 20

1шт.

4

NSS

NOT SOLD SEPARAT

Cover

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

NSS

NOT SOLD SEPARAT

Gear

1шт.

7

NSS

NOT SOLD SEPARAT

Gear

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Gear

1шт.

10

NSS

NOT SOLD SEPARAT

Gear

1шт.

11

NSS

NOT SOLD SEPARAT

Plate

4шт.

12

NSS

NOT SOLD SEPARAT

Bushing

4шт.

13

NSS

NOT SOLD SEPARAT

Bushing

4шт.

14

NSS

NOT SOLD SEPARAT

Gasket, Incl in 2

4шт.

15

NSS

NOT SOLD SEPARAT

Ring, Back Up, Incl in 2

4шт.

16

NSS

NOT SOLD SEPARAT

Gasket, Incl in 2

2шт.

17

NSS

NOT SOLD SEPARAT

Ball

2шт.

18

NSS

NOT SOLD SEPARAT

Washer

4шт.

19

NSS

NOT SOLD SEPARAT

Screw, Cap

4шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2

1шт.
