(35.106.AD[03]) - HYDRAULIC PUMP, ASSY, CAB

Запчасти Case CX55B (35.106.AD[03]) - HYDRAULIC PUMP, ASSY, CAB (35) - HYDRAULIC SYSTEMS

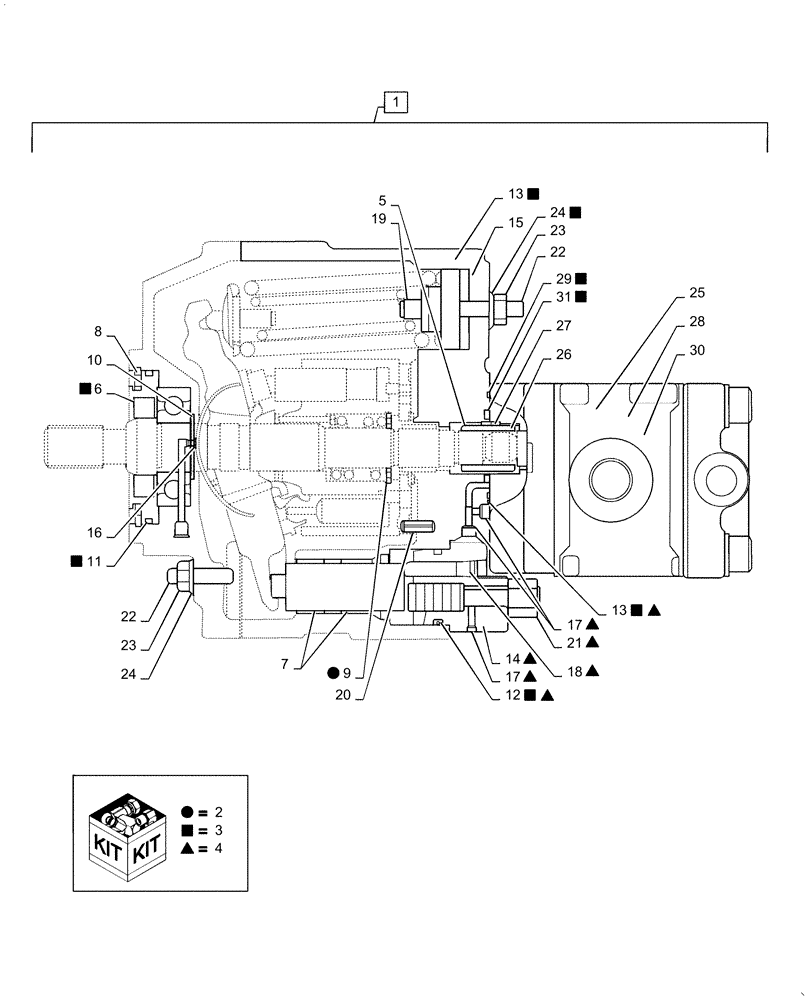

Схема запчастей Case CX55B - (35.106.AD[03]) - HYDRAULIC PUMP, ASSY, CAB (35) - HYDRAULIC SYSTEMS
12
3
4
19
24
11
3
22
23
4
3
4
13
18
16
3
20
17
4
4
1
26
21
9
25
13
4
10
4
27
2
31
28
3
6
7
4
3
14
8
3
3
17
24
2
29
15
23
3
5
4
22
30
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PS10V00002F1

HYDRAULIC PUMP

Assy, Incl 2 - 31

1шт.

2

PS10V00001R100

KIT

Repair, Incl 9 (1)

1шт.

3

PS10V00001R200

KIT

Repair, Incl 6 (1), 11 (1), 12 (1), 29 (1), 31 (1), 24 (2), 13 (4)

1шт.

4

PS10V00002R300

KIT

Repair, Incl 12 (1), 13 (1), 18 (1), 21 (1), 14 (2), 17 (3)

1шт.

5

NSS

NOT SOLD SEPARAT

Bearing, Needle

1шт.

6

NSS

NOT SOLD SEPARAT

Oil Seal, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Bearing

2шт.

8

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Snap, Incl in 2

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3 or 4

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3 or 4

4шт.

14

NSS

NOT SOLD SEPARAT

Capscrew, Incl in 4

2шт.

15

PS10V00001S047

PIN

2шт.

16

PS10V00001S048

ORIFICE

2шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

8шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

19

NSS

NOT SOLD SEPARAT

Pin, Spring

1шт.

20

NSS

NOT SOLD SEPARAT

Pin, Spring

1шт.

21

NSS

NOT SOLD SEPARAT

Bolt, Incl in 4

1шт.

22

NSS

NOT SOLD SEPARAT

Capscrew

2шт.

23

NSS

NOT SOLD SEPARAT

Nut

2шт.

24

NSS

NOT SOLD SEPARAT

Washer, Incl in 3

2шт.

25

PS10V00003F1

HYDRAULIC PUMP

Assy, Gear

1шт.

26

PS10V00001S066

COUPLING

1шт.

27

PV10V00001S058

COLLAR

1шт.

28

NSS

NOT SOLD SEPARAT

Bolt

2шт.

29

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3

1шт.

30

PU10V00014S070

LOCK WASHER

2шт.

31

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3

1шт.
