(35.106.AD[02]) - HYDRAULIC PUMP, ASSY, CANOPY

Запчасти Case CX55B (35.106.AD[02]) - HYDRAULIC PUMP, ASSY, CANOPY (35) - HYDRAULIC SYSTEMS

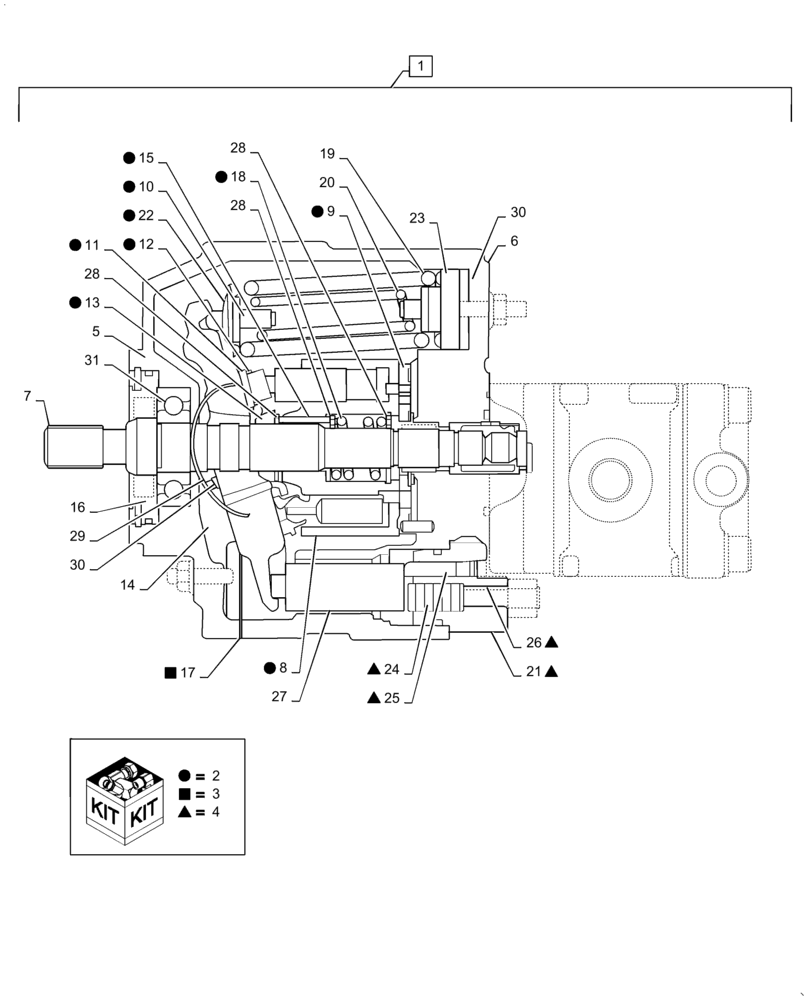

Схема запчастей Case CX55B - (35.106.AD[02]) - HYDRAULIC PUMP, ASSY, CANOPY (35) - HYDRAULIC SYSTEMS
4
5
15
4
29
8
4
6
13
16
9
25
28
4
3
4
22
2
2
21
2
1
28
2
17
27
23
30
18
2
2
19
26
7
3
2
3
28
20
2
2
2
11
2
10
12
4
24
30
14
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PS10V00001F1

HYDRAULIC PUMP

Assy, Incl 2 - 31

1шт.

2

PS10V00001R100

KIT

Repair, Incl 8 (1), 9 (1), 12 (1), 13 (1), 18 (1), 15 (3), 22 (3), 10 (10), 11 (10)

1шт.

3

PS10V00001R200

KIT

Repair, Incl 17 (1)

1шт.

4

PS10V00002R300

KIT

Repair, Incl 21 (1), 24 - 26 (1)

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

PS10V00001S003

SHAFT

1шт.

8

NSS

NOT SOLD SEPARAT

Cylinder Barrel, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Plate, Incl in 2

1шт.

10

NSS

NOT SOLD SEPARAT

Piston, Incl in 2

10шт.

11

NSS

NOT SOLD SEPARAT

Shoe, Incl in 2

10шт.

12

NSS

NOT SOLD SEPARAT

Shoe Holder, Incl in 2

1шт.

13

NSS

NOT SOLD SEPARAT

Barrel Holder, incl in 2

1шт.

14

PS10V00001S010

PLATE

1шт.

15

NSS

NOT SOLD SEPARAT

Needle, Incl in 2

3шт.

16

PS10V00001S012

HOLDER

1шт.

17

NSS

NOT SOLD SEPARAT

Packing, Incl in 3

1шт.

18

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

1шт.

19

PS10V00001S015

SPRING

1шт.

20

PS10V00001S016

SPRING

1шт.

21

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 4

1шт.

22

PS10V00001S018

HOLDER

1шт.

23

PW10V00011S019

GUIDE

1шт.

24

NSS

NOT SOLD SEPARAT

Rod, Incl in 4

1шт.

25

NSS

NOT SOLD SEPARAT

Rod, Incl in 4

1шт.

26

NSS

NOT SOLD SEPARAT

Rod, Incl in 4

1шт.

27

PS10V00001S023

PISTON

1шт.

28

NSS

NOT SOLD SEPARAT

Retainer

3шт.

29

PS10V00001S025

BUSHING

2шт.

30

PS10V00001S028

STOP

2шт.

31

25T819D4

BEARING ASSY

Ball

1шт.
