Запчасти Case CX50B (07-001[02]) - NAME PLATE INSTAL NAME-PLATE

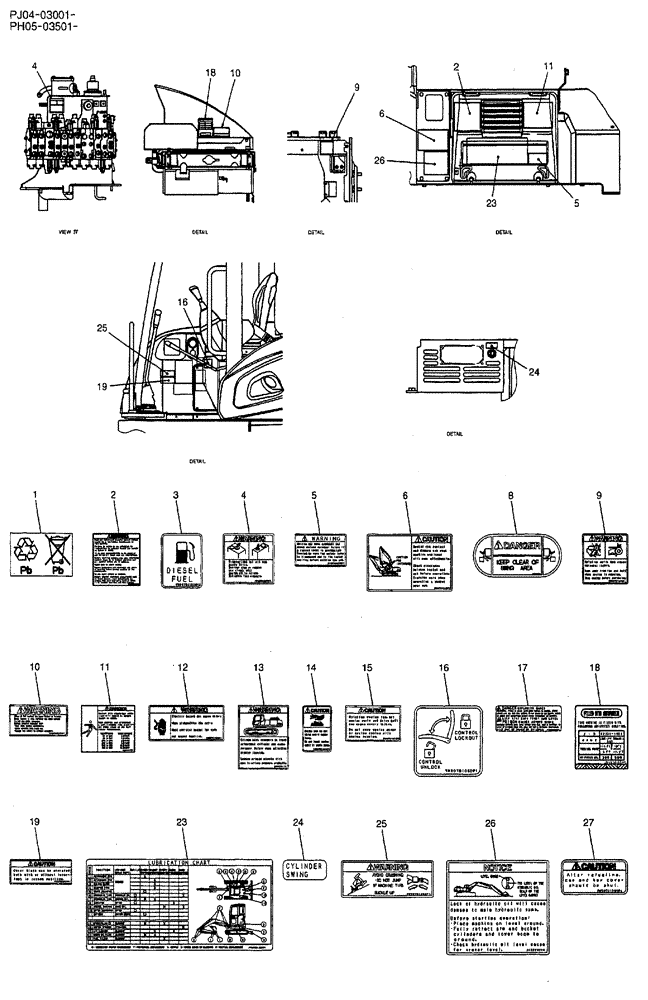

Схема запчастей Case CX50B - (07-001[02]) - NAME PLATE INSTAL NAME-PLATE
8
17
16
5
16
6
24
4
3
5
1
26
10
12
2
11
25
18
26
6
23
15
19
13
4
19
23
11
9
18
14
2
24
9
25
10
27

Артикул

Название

Примечание

Количество

PW22T00083F1

LABEL

NAME PLATE INSTAL

1шт.

1

2432T6179

CAUTION DECAL

Pb

1шт.

2

YN20T01016P1

WARNING DECAL

WARNING

1шт.

3

YN20T01213P1

LABEL

DIESEL FUEL

1шт.

4

PW20T01007P1

LABEL

WARNING, PRESSURIZED HOT OIL CAN CAUSE BURNS.

1шт.

5

PY20T01073P1

WARNING DECAL

WARNING, MACHINE MAY MOVE SUDDENLY...

1шт.

6

YN20T01013P1

LABEL

CAUTION, BUCKET CAN CONTACT AND DAMAGE...

1шт.

8

PE20T01014P1

LABEL

DANGER, KEEP CLEAR OF SWING AREA

1шт.

9

YN20T01009P1

LABEL

WARNING, ROTATING PARTS CAN CAUSE PERSONAL INJURY

1шт.

10

PW20T01094P1

WARNING DECAL

WARNING

1шт.

11

YN20T01006P1

LABEL

DANGER, CONTACT WITH...

1шт.

12

YN20T01338P1

LABEL

WARNING, ELECTRICAL HAZARD MAY CAUSE INJURY...

1шт.

13

2432T6110

LABEL

WARNING, EXTREME HIGH PRESSURE...

2шт.

14

YN20T01220P1

LABEL

CAUTION, ENGINE MAY BE HOT WHICH COULD CAUSE BURNS...

1шт.

15

YN20T01012P1

CAUTION DECAL

CAUTION, ROTATING ENGINE FAN...

1шт.

16

YN20T01050P1

LABEL

CONTROL LOCKOUT

1шт.

17

PY20T01069P1

LABEL

DANGER, EXPLOSIVE GASES...

1шт.

18

PW20T01076P1

LABEL

LABEL, FILLED WITH ANTIFREEZE...

1шт.

19

PY20T01077P1

LABEL

CAUTION, DOZER BLADE CAN BE OPERATED...

1шт.

23

PV20T01003P1

LABEL

LUBRICATION CHART, POSITION

1шт.

24

PW20T01044P1

LABEL

CYLINDER SWING

1шт.

25

PE20T01027P1

LABEL

WARNING, AVOID CRUSHING...

1шт.

26

2432P3379

LABEL

NOTICE, LACK OF HYDRAULIC OIL...

1шт.

27

PW20T01090P1

LABEL

CAUTION, AFTER REFUELING...

1шт.

Выбрано товаров: 24
