Запчасти Case CX50B (09-017) - FUEL INJECTION PUMP (INNER PARTS) ENGINE COMPONENTS

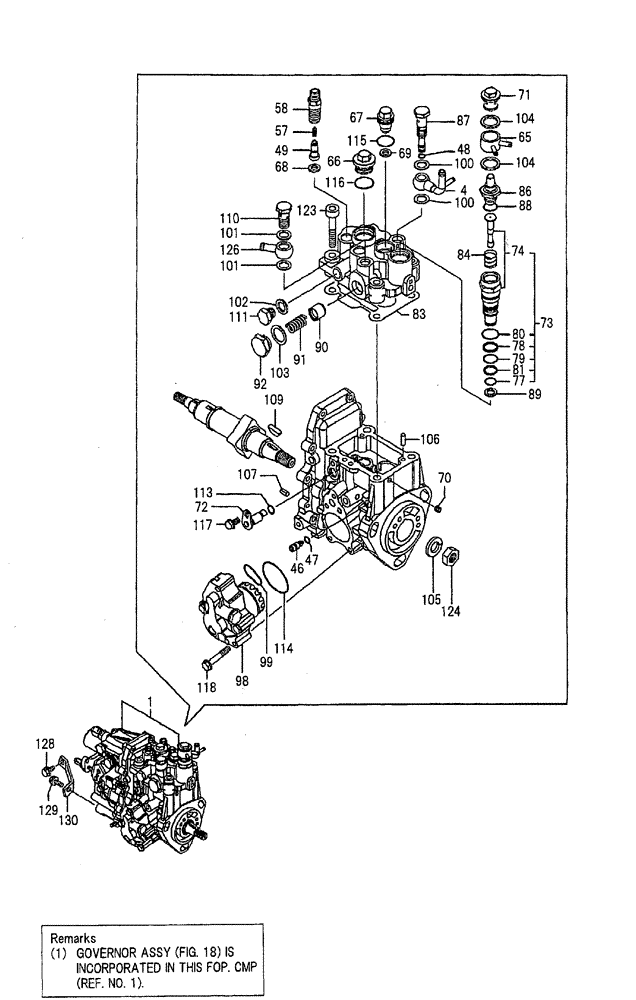

Схема запчастей Case CX50B - (09-017) - FUEL INJECTION PUMP (INNER PARTS) ENGINE COMPONENTS

Артикул

Название

Примечание

Количество

1

VV72964251400

FUEL INJECTION PUMP

Assembly

1шт.

4

VV15855251670

BANJO FITTING

JOINT

1шт.

46

VV15860051270

STOP

STOPPER

1шт.

47

VV15856351281

O-RING

O-RING

1шт.

48

VV15856351281

O-RING

O-RING

1шт.

49

VV15856051300

VALVE

ASSY, DELIVERY

4шт.

57

VV15856351330

SPRING

SPRING

4шт.

58

VV15860151340

HOLDER

DELIVERY

4шт.

65

VV15855351551

BANJO FITTING

JOINT, COOLING WATER

1шт.

66

VV15860151550

PLUG

PLUG

1шт.

67

VV11980251560

PLUG

BARREL

1шт.

68

VV15855251570

SEAL

PK (BARREL PLUG)

4шт.

69

VV15855251570

SEAL

PK (BARREL PLUG)

1шт.

70

VV15855751570

PLUG

PLUG

1шт.

71

VV15860151570

PLUG

WATER PUMP

1шт.

72

VV15855251580

LEVER & PIN ASSY

LIFTER

1шт.

73

VV11980251590

TIMER

SET

1шт.

74

VV11980251600

TIMER

CMP

1шт.

77

VV15855351670

O-RING

1011

1шт.

78

VV11980251680

BACK-UP RING

BACKUP RING

1шт.

79

VV11980251690

O-RING

O-RING

1шт.

80

VV24356010200

O-RING

1020

1шт.

81

VV24372000150

BACK-UP RING

T2 P15

1шт.

83

VV15855251600

SEAL

HEAD

1шт.

84

VV15855351630

SPRING

TIMER

1шт.

86

VV15855351640

ELEMENT

THERMO

1шт.

87

VV15860151650

BANJO FITTING

JOINT

1шт.

88

VV15855351660

O-RING

P14

1шт.

89

VV15855351680

SEAL

TIMER

1шт.

90

VV15860151770

PISTON

PISTON

1шт.

91

VV15855251780

DAMPER

ASSY

1шт.

92

VV15860151790

PLUG

PLUG

1шт.

98

VV15855252100

FUEL PUMP

PUMP ASSY, FEED

1шт.

99

VV15855252310

O-RING

O-RING

1шт.

100

VV22190120002

SEAL

SEAL WASHER 12

2шт.

101

VV22190120002

SEAL

SEAL WASHER 12

2шт.

102

VV22190120002

SEAL

SEAL WASHER 12

1шт.

103

VV22190180002

SEAL

SEAL WASHER 18

1шт.

104

VV22190180002

SEAL

SEAL WASHER 18

2шт.

105

VV22217140000

SPRING WASHER

SPRING WASHER 14

1шт.

106

VV22312050140

PARALLEL PIN,M5 x 14mm

PARALLEL PIN 5 X 14

2шт.

107

VV22351050010

SPRING,5 x 10mm

SPRING PIN 5 X 10

2шт.

109

VV11980251090

WOODRUFF KEY,M4 x 16mm

KEY, WOODRUFF 4 X 16

1шт.

110

VV23857060000

BANJO BOLT

JOINT BOLT 6, PIPE

1шт.

111

VV23887120002

PLUG

PLUG M12, HEX.

1шт.

113

VV24311000070

O-RING

O-RING 1A P-7.0

1шт.

114

VV15855252400

O-RING

O-RING 4E S42

1шт.

115

VV24356010180

O-RING

G-RING

1шт.

116

VV24356010200

O-RING

PACKING, 1020

1шт.

117

VV26106060102

BOLT,M6 x 10mm

BOLT M6 X 10 PLATED

1шт.

118

VV15855351770

SCREW

BOLT

4шт.

123

VV26450080452

SCREW,M8 x 45mm

BOLT M8 X 45

4шт.

124

VV26776140002

LOCK NUT,M14

LOCK NUT M14 PLATED

1шт.

126

VV12991659020

BANJO FITTING

JOINT 12, PIPE

1шт.

128

VV26106080162

BOLT,M8 x 16mm

BOLT M8 X 16 PLATED

1шт.

129

VV26106080202

BOLT,M8 x 20mm

BOLT M8 X 20 PLATED

1шт.

130

VV12960151250

SUPPORT

SUPPORT, FIP

1шт.

Выбрано товаров: 57
