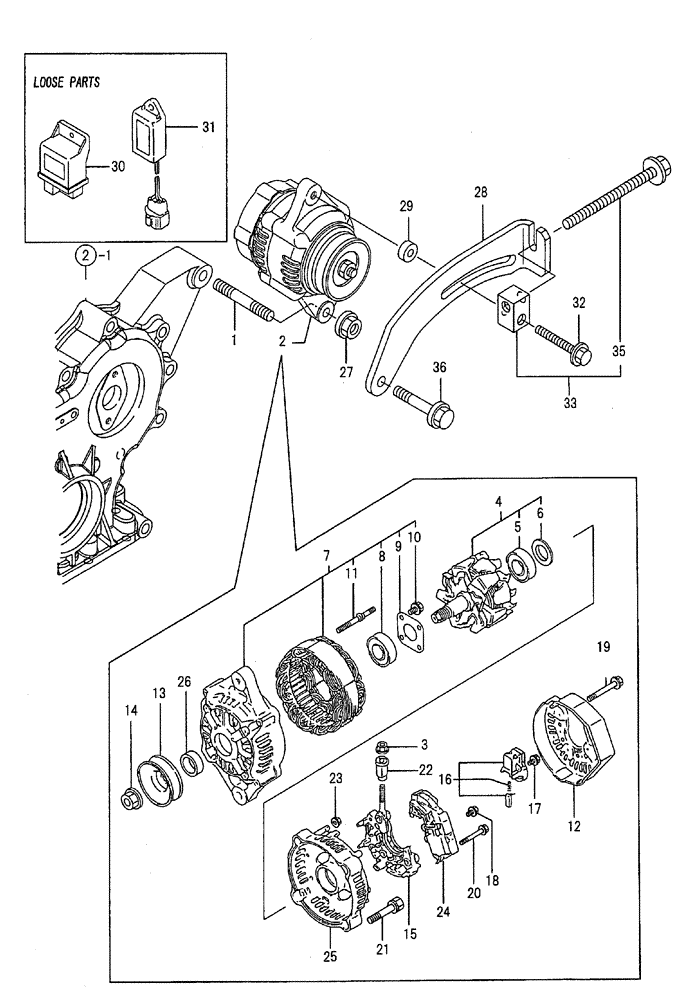

Запчасти Case CX50B (09-015) - GENERATOR ENGINE COMPONENTS

1

VV12979501900

STUD

STUD

1шт.

2

VV11962677210

ALTERNATOR,12V, 55 Amp

ALTERNATOR ASSY

1шт.

3

VVX9490561001

NUT

NUT

1шт.

4

VV12905277380

ROTOR

ROTATOR ASSY

1шт.

5

VV12350179240

BALL BEARING

BEARING, BALL

1шт.

6

VV11962079250

COVER ASSY

COVER, BEARING

1шт.

7

VV12905277422

KIT

FRAME ASSY

1шт.

8

VV11962079200

BALL BEARING

BALL BEARING

1шт.

9

VV11962079210

PLATE

PLATE

1шт.

10

VV11962079220

SCREW

SCREW

4шт.

11

VV11962079230

BOLT

BOLT, STUD

2шт.

12

VV12840177440

COVER

FLAME

1шт.

13

VV11962077461

PULLEY

PULLEY

1шт.

14

VV11962077471

NUT

NUT

1шт.

15

VV12905279260

HOLDER

HOLDER, SUB, RECTIFIER

1шт.

16

VV12905279270

HOLDER

HOLDER, BRUSH

1шт.

17

VV11962079290

SCREW

SCREW

6шт.

18

VV11962079300

SCREW

SCREW

1шт.

19

VV11962079310

BOLT

BOLT

3шт.

20

VV11962079320

SCREW

SCREW W/WASHER

2шт.

21

VV11962079330

BOLT

BOLT

2шт.

22

VV11962079340

FOAM INSULATION

INSULATION BUSH

1шт.

23

VV11962079350

NUT

NUT

2шт.

24

VV12942377710

REGULATOR

REGULATOR ASSY

1шт.

25

VV11962679410

COVER ASSY

COVER, END, RR

1шт.

26

VV11962077490

COLLAR

COLLAR

1шт.

27

VV26306100002

NUT,M10

NUT

1шт.

28

VV12964277310

ADJUSTER

ADJUSTER, BELT

1шт.

29

VV11994077270

SPACER

ADJUSTER, BELT

1шт.

30

VV11980277200

RELAY

RELAY, SAFETY

1шт.

31

VV12921177920

TIMER

TIMER

1шт.

32

VV26106080502

BOLT,M8 x 50mm

BOLT M8 X 50 PLATED

1шт.

33

VV11962477350

BLOCK

BROCK, GENERATOR CMP

1шт.

35

VV26106081004

BOLT

BOLT M8 X 100

1шт.

36

VV26106080452

BOLT,M8 x 45mm

BOLT M8 X 45 PLATED

1шт.
