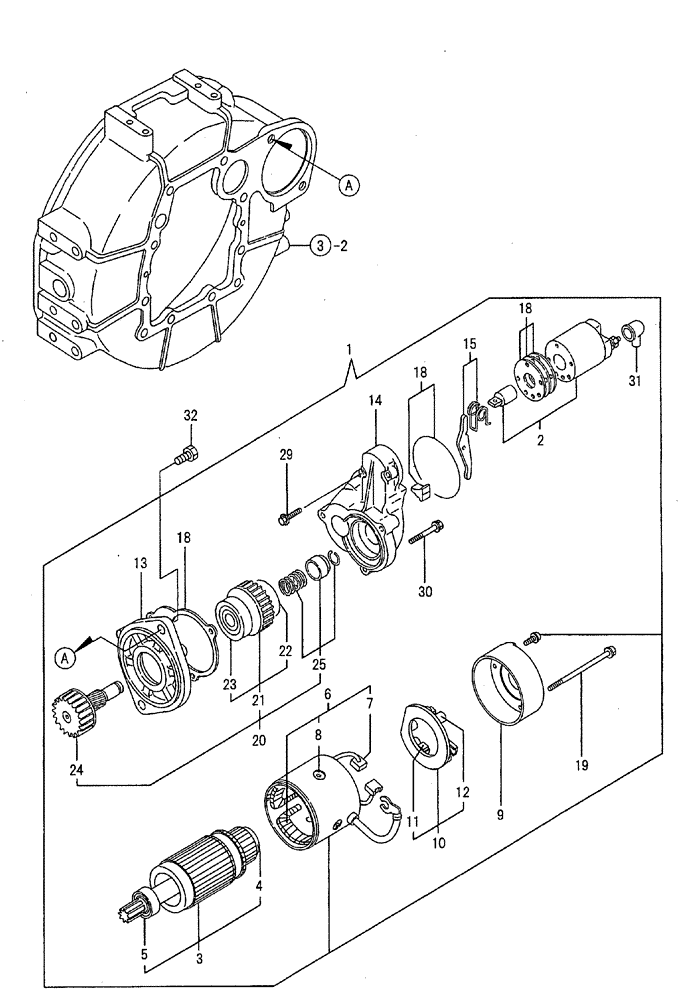

Запчасти Case CX50B (09-014) - STARTING MOTOR ENGINE COMPONENTS

1

VV12913677011

STARTER MOTOR

STARTER

1шт.

2

VV12913677310

SHAFT

PINION

1шт.

3

VV12990077400

ARMATURE

ASSY

1шт.

4

VVX2130350900

BALL BEARING

BALL BEARING

1шт.

5

VVX2114255110

BALL BEARING

BALL BEARING

1шт.

6

VV12990077440

COIL ASSY.

COIL ASSY, FIELD

1шт.

7

VV12990077450

COMMUTATOR BRUSH

BRUSH (+)

2шт.

8

VV17100877450

SCREW

SCREW, POLE CORE SET

4шт.

9

VV12990077460

REAR COVER

COVER, REAR

1шт.

10

VV12990077480

HOLDER

ASSY, BRASH

1шт.

11

VV12990077450

COMMUTATOR BRUSH

BRUSH (+)

2шт.

12

VV12940077490

SPRING

BRUSH

4шт.

13

VV17100877510

TRANSMISSION HOUSING

HOUSING ASSY, GEAR

1шт.

14

VV12913677520

HOUSING

CENTER

1шт.

15

VV17100877540

LEVER

LEVER SET, SHIFT

1шт.

18

VV12940077571

COVER

DUST COVER, (NON-ASB.

1шт.

19

VV12990077640

BOLT

THROUGHT

2шт.

20

VV17100877650

PINION

ASSY

1шт.

21

VVX2114555500

CLUTCH ASSEMBLY

CLUTCH ASSY

1шт.

22

VVX2114955020

BALL BEARING

BEARING

1шт.

23

VVX2240410100

BALL BEARING

BEARING

1шт.

24

VV17100877660

SHAFT

PINION

1шт.

25

VV17100877670

STOP

STOPPER SET, PINION

1шт.

29

VV26106060322

BOLT,M6 x 32mm

BOLT M6 X 32 PLATED

2шт.

30

VV26106060402

BOLT,M6 x 40mm

BOLT M6 X 40 PLATED

3шт.

31

VV17100877750

PROTECTIVE COVER

COVER, M TERMINAL

1шт.

32

VV26116120252

BOLT

BOLT M12 X 25 PLATED

2шт.
