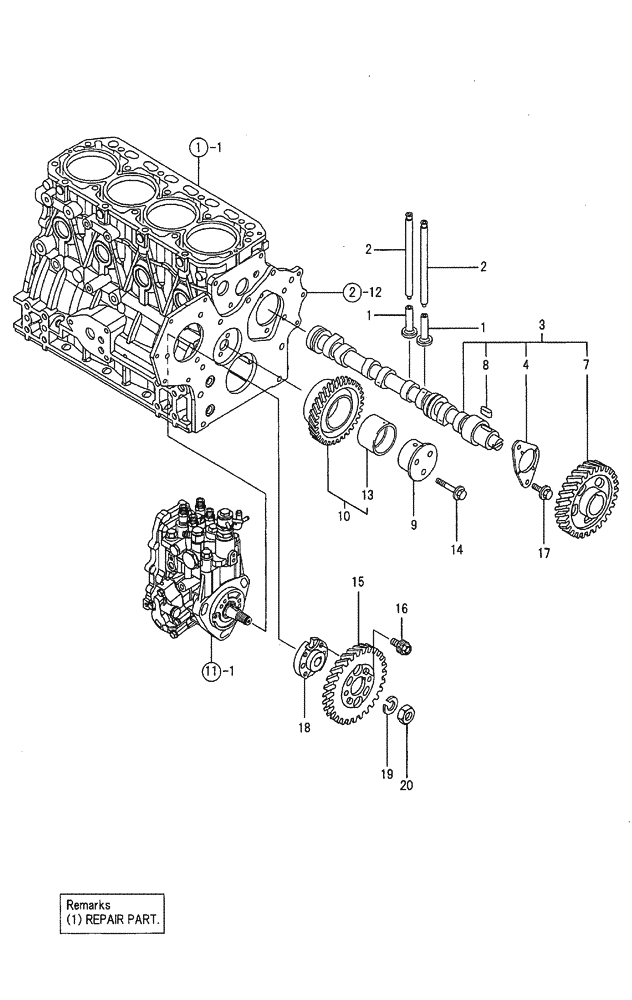

Запчасти Case CX50B (09-007) - CAMSHAFT & DRIVING GEAR ENGINE COMPONENTS

NSS

NOT SOLD SEPARAT

CAMSHAFT & DRIVING GEAR

1шт.

1

VV12915014200

TAPPET

TAPPET

8шт.

2

VV12915014400

PUSH ROD

ROD, PUSH

8шт.

3

VV72940214580

CAMSHAFT

CAMSHAFT ASSY

1шт.

4

VV12915002450

METAL LINER

METAL, THRUST (CAM)

1шт.

7

VV12915014101

GEAR SET

GEAR, CAMSHAFT

1шт.

8

VV22512070140

KEY,M7 x 14mm

KEY 7 X 14

1шт.

9

VV11980225051

SHAFT

SHAFT, IDLE GEAR

1шт.

10

VV11980225100

GEAR

GEAR ASSY, IDLE

1шт.

13

VV11980225070

BUSHING

BUSH, IDLE GEAR

1шт.

14

VV26106080402

BOLT,M8 x 40mm

BOLT M8 X 40 PLATED

3шт.

15

VV11980225901

GEAR

GEAR, PUMP

1шт.

16

VV12915025301

BOLT

BOLT, FI-P

4шт.

17

VV26106080142

BOLT,M8 x 14mm

BOLT M8 X 14 PLATED

2шт.

18

VV15855251151

FLANGE

FLANGE

1шт.

19

VV22217140000

SPRING WASHER

SPRING WASHER 14

1шт.

20

VV26776140002

LOCK NUT,M14

LOCK NUT M14 PLATED

1шт.
