(09-003) - FLYWHEEL HOUSING & OIL SUMP

Запчасти Case CX50B (09-003) - FLYWHEEL HOUSING & OIL SUMP ENGINE COMPONENTS

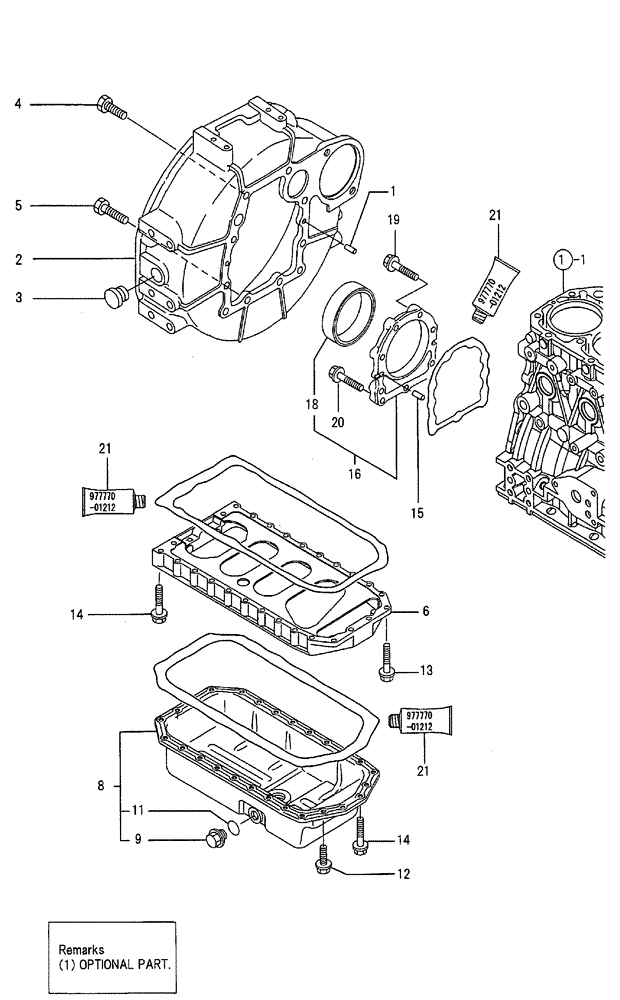

Схема запчастей Case CX50B - (09-003) - FLYWHEEL HOUSING & OIL SUMP ENGINE COMPONENTS
1
5
12
14
2
11
15
19
20
16
3
21
4
13
8
9
1
21
6
18
21
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

FLYWHEEL HOUSING & OIL SUMP

1шт.

1

VV12910001580

PIN,M8 x 16mm

PARALLEL PIN 8 X 16

2шт.

2

VV12961201600

HOUSING

HOUSING, FLYWHEEL

1шт.

3

VV11962001750

CAP

CAP, FLYWHEEL COVER

1шт.

4

VV26206100252

BOLT,M10 x 25mm

BOLT M10 X 25

6шт.

5

VV26206100302

BOLT,M10 x 30mm

BOLT M10 X 30

4шт.

6

VV12940001730

SPACER

SPACER, OIL SUMP

1шт.

8

VV12940001770

SUMP

SUMP ASSY, LUB. OIL

1шт.

9

VV17130101640

PLUG

PLUG M22

1шт.

11

VV24341000250

O-RING

O-RING 1A S-25.0

1шт.

12

VV26106080162

BOLT,M8 x 16mm

BOLT M8 X 16 PLATED

4шт.

13

VV26106080252

BOLT,M8 x 25mm

BOLT M8 X 25 PLATED

2шт.

14

VV26106080452

BOLT,M8 x 45mm

BOLT M8 X 45 PLATED

24шт.

15

VV12910001580

PIN,M8 x 16mm

PARALLEL PIN 8 X 16

2шт.

16

VV12910001640

BOX

CASE ASSY, OIL SEAL

1шт.

18

VV12979501780

OIL SEAL

SEAL, OIL

1шт.

19

VV12948601670

BOLT,M8 x 30mm

BOLT M8 X 30, COLLAR HD

6шт.

20

VV26106080352

BOLT,M8 x 35mm

BOLT M8 X 35 PLATED

3шт.

21

VV97777001212

GASKET

GASKET, LIQUID

1шт.
