(08-040) - CYLINDER ASSEMBLY, SWING

Запчасти Case CX50B (08-040) - CYLINDER ASSEMBLY, SWING ELECTRICAL AND HYDRAULIC COMPONENTS

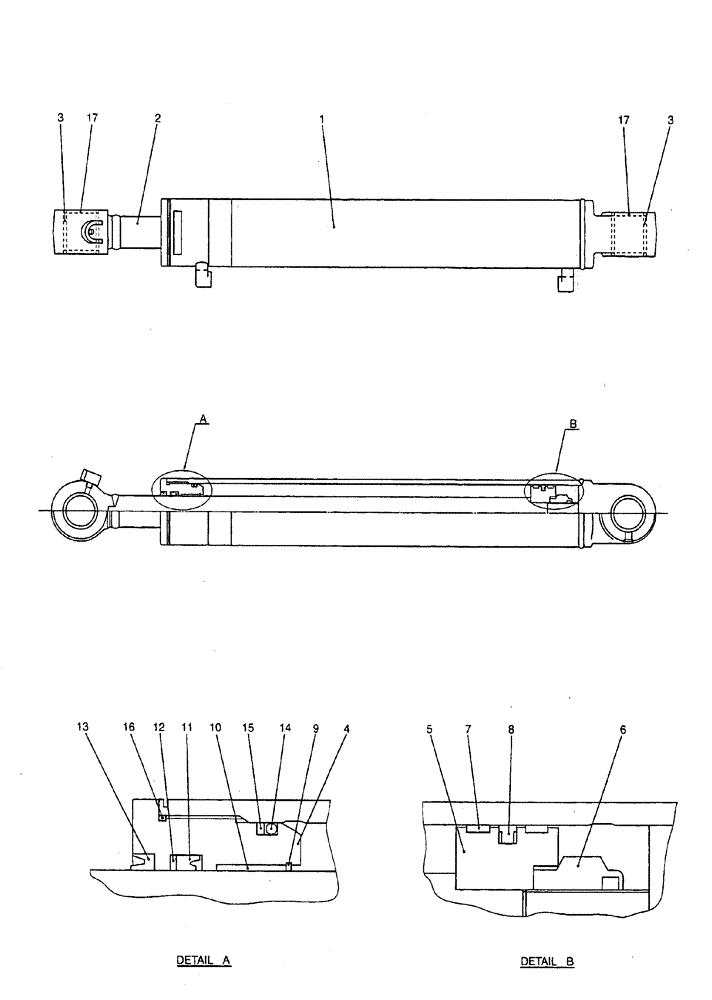

Схема запчастей Case CX50B - (08-040) - CYLINDER ASSEMBLY, SWING ELECTRICAL AND HYDRAULIC COMPONENTS
17
3
11
8
6
10
1
13
14
15
7
4
9
12
3
17
16
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH01V00031F1

CYLINDER

ASSY, SWING

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

3

PH01V00031S003

BUSHING

2шт.

4

PH01V00031S004

CYLINDER HEAD

CYLINDER HEAD

1шт.

5

PH01V00031S005

PISTON

1шт.

6

PH01V00031S006

NUT

1шт.

7

PH01V00027S010

RING

WEAR

2шт.

8

PH01V00027S011

RING

SEAL

1шт.

9

PH01V00027S013

RING

RETAINING

1шт.

10

PH01V00031S010

BUSHING

1шт.

11

PH01V00027S015

CIRCLIP

U-RING

1шт.

12

PH01V00027S016

RING

BACK UP

1шт.

13

PH01V00027S017

RING

WIPER

1шт.

14

ZD12P08000

O-RING

1шт.

15

ZD85P08000

BACK-UP RING

1шт.

16

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

17

PH01V00027S021

RING

WIPER

4шт.

PH01V00031R100

REPAIR KIT

CONSISTS OF REF. 1 (1), 3 (1)

1шт.

PH01V00031R200

REPAIR KIT

CONSISTS OF REF. 2 (1), 3 (1)

1шт.

PH01V00031R300

REPAIR KIT

CONSISTS OF REF. 7 (2), 8 (1), 11 (1), 12 (1), 13 (1), 14 (1), 15 (1), 16 (1)

1шт.
