(08-039) - CYLINDER ASSEMBLY, DOZER

Запчасти Case CX50B (08-039) - CYLINDER ASSEMBLY, DOZER ELECTRICAL AND HYDRAULIC COMPONENTS

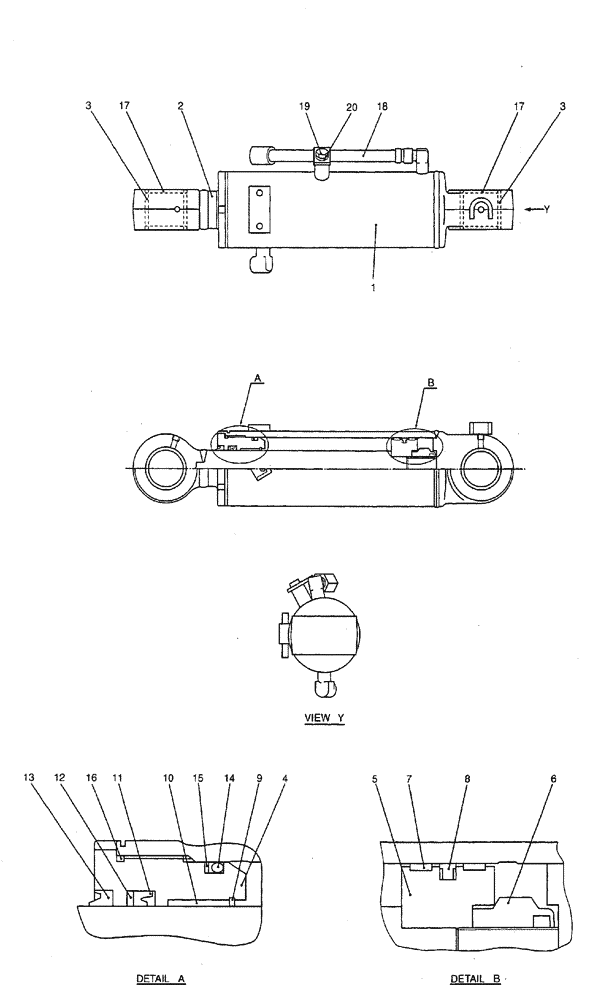

Схема запчастей Case CX50B - (08-039) - CYLINDER ASSEMBLY, DOZER ELECTRICAL AND HYDRAULIC COMPONENTS
13
1
12
8
5
10
2
14
7
19
6
4
11
9
3
15
20
18
17
17
16
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY01V00040F1

CYLINDER

CYLINDER ASSY, DOZER

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

3

PY01V00040S003

BUSHING

2шт.

4

PY01V00040S004

CYLINDER HEAD

1шт.

5

PY01V00040S005

PISTON

PISTON

1шт.

6

PH01V00031S006

NUT

NUT

1шт.

7

PY01V00040S007

RING

RING, WEAR

2шт.

8

PY01V00040S008

RING

RING, SEAL

1шт.

9

PY01V00037S014

RING

RING, RETAINING

1шт.

10

PY01V00040S010

BUSHING

BUSHING

1шт.

11

PY01V00037S015

CIRCLIP

U-RING

1шт.

12

PY01V00037S016

RING

RING, BACK UP

1шт.

13

PY01V00037S017

RING

RING, WIPER

1шт.

14

ZD12P08500

O-RING

O-RING

1шт.

15

ZD85P08500

BACK-UP RING

RING, BACK UP

1шт.

16

ZD11G09500

O-RING,94.40mm ID x 100.60mm OD x 3.10mm

O-RING

1шт.

17

PY01V00040S017

RING

RING, WIPER

4шт.

18

PY01V00040S018

TUBE

TUBE ASSY

1шт.

19

ZS18C10016

SCREW,Hex, M10 x 16mm

CAP

1шт.

20

PH01V00027S023

WASHER

1шт.

PY01V00040R100

REPAIR KIT

CONSISTS OF REF. 1 (1), 3 (!)

1шт.

PY01V00040R200

REPAIR KIT

CONSISTS OF REF. 2 (1), 3 (1)

1шт.

PY01V00040R300

REPAIR KIT

CONSISTS OF REF. 7 (2), 8 (1), 11 (1), 12 (1), 13 (1), 14 (1), 15 (1), 16 (1)

1шт.
