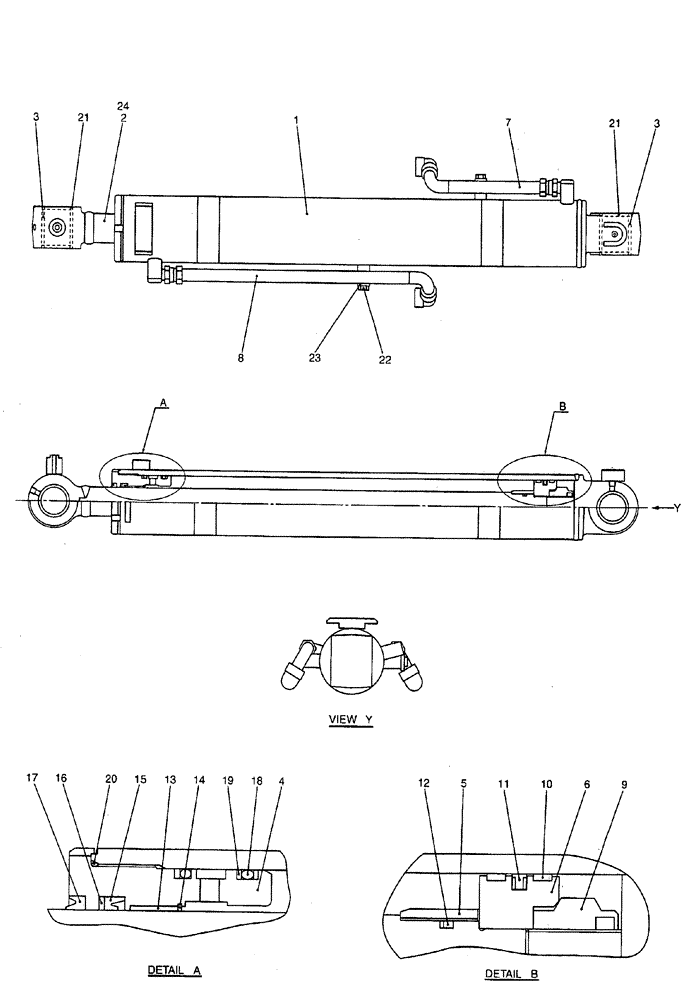

Запчасти Case CX50B (08-035) - CYLINDER ASSEMBLY, BOOM (CANOPY) ELECTRICAL AND HYDRAULIC COMPONENTS

PY01V00037F1

CYLINDER

ASSY, BOOM

1шт.

PY01V00037F2

CYLINDER,Double Acting, 55mm Rod, 699mm Stroke

CYLINDER ASSY, BOOM

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

3

PH01V00027S003

BUSHING

2шт.

4

PY01V00037S004

CYLINDER HEAD

1шт.

5

PY01V00037S005

BUSHING

BEARING

1шт.

6

PY01V00037S006

PISTON

1шт.

7

PY01V00037S007

TUBE

ASSY

1шт.

8

PY01V00037S008

TUBE

ASSY

1шт.

9

PY01V00037S009

NUT

1шт.

10

PY01V00037S010

RING

WEAR

2шт.

11

PY01V00037S011

RING

SEAL

1шт.

12

PY01V00037S012

RING

1шт.

13

PY01V00037S013

BUSHING

1шт.

14

PY01V00037S014

RING

RETAINING

1шт.

15

PY01V00037S015

CIRCLIP

U-RING

1шт.

16

PY01V00037S016

RING

BACK UP

1шт.

17

PY01V00037S017

RING

WIPER

1шт.

18

ZD12P09000

O-RING

2шт.

19

ZD85P09000

BACK-UP RING

3шт.

20

ZD11G10000

O-RING,99.40mm ID x 105.60mm OD x 3.10mm

1шт.

21

PH01V00027S021

RING

SEAL, DUST

4шт.

22

ZS18C10016

SCREW,Hex, M10 x 16mm

CAP

2шт.

23

PH01V00027S023

WASHER

2шт.

24

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

PY01V00037R100

REPAIR KIT

CONSISTS OF REF. 1 (1), 3 (1)

1шт.

PY01V00037R200

REPAIR KIT

CONSISTS OF REF. 2 (1), 3 (1)

1шт.

PY01V00037R300

REPAIR KIT

CONSISTS OF REF. 10 (2), 11 (1), 15 (1), 16 (1), 17 (1), 18 (1), 19 (3), 20 (1)

1шт.

PY01V00037R400

REPAIR KIT

CONSISTS OF REF. 3 (1), 24 (1)

1шт.
