(08-024) - PUMP ASSEMBLY

Запчасти Case CX50B (08-024) - PUMP ASSEMBLY ELECTRICAL AND HYDRAULIC COMPONENTS

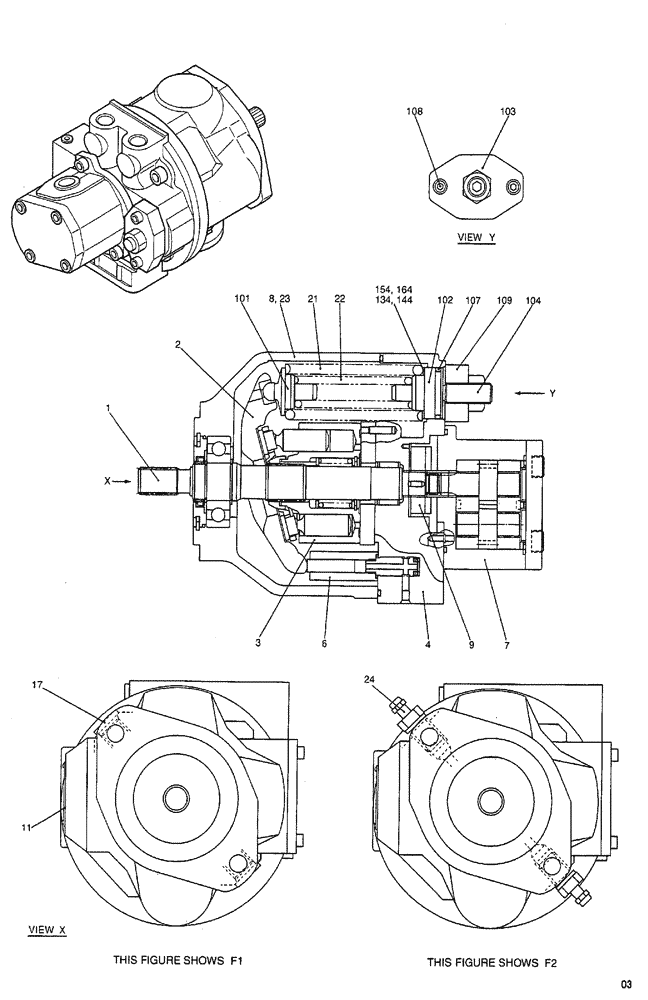

Схема запчастей Case CX50B - (08-024) - PUMP ASSEMBLY ELECTRICAL AND HYDRAULIC COMPONENTS
23
6
21
8
108
9
17
3
4
103
134
164
1
104
109
101
24
102
22
2
144
154
11
107
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH10V00010F1

PUMP

ASSY

1шт.

PH10V00010F2

PUMP

ASSY

1шт.

1

YJ10V01001F1

SHAFT ASSY.

SEE FIG. 08-025

1шт.

2

PY1OV01002F1

BLOCK ASSY, SEE FIG. 08-026

1шт.

3

PY10V01005F1

ROTOR ASSY.

SEE FIG/ 08-027

1шт.

4

PH10V01007F1

COVER ASSY

SEE FIG. 08-028

1шт.

6

PH10V01008F1

PISTON ASSY

SEE FIG. 08-029

1шт.

7

PH10V00011F1

PUMP

ASSY, GEAR, SEE FIG. 08-031

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

9

PH10V00007F1

PUMP

ASSY

1шт.

11

PH10V00010S011

IDENTITY PLATE

NAME

1шт.

17

PY10V00010S017

PLUG

2шт.

21

PY10V01004S006

SPRING

1шт.

22

PH10V01003S005

SPRING

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

24

PY10V00007S017

BREATHER

PLUG

2шт.

101

PY10V01004S001

SPRING SEAT

1шт.

102

PH10V01003S002

SPRING SEAT

1шт.

103

PY10V01004S003

COVER

1шт.

104

PY10V01004S004

ADJUSTMENT SCREW

1шт.

107

ZD11P03400

O-RING

1шт.

108

ZS23C08030

SCREW,Hex Socket Head, M8 x 30mm

CAP

2шт.

109

PY10V01004S009

NUT

1шт.

134

PM10V01005S054

SHIM,0.3mm Thk

2шт.

144

PW10V00001S047

SHIM,0.5mm Thk

2шт.

154

PW10V00001S048

SHIM,1.0mm Thk

2шт.

164

PW10V00001S049

SHIM,2.0mm Thk

2шт.
