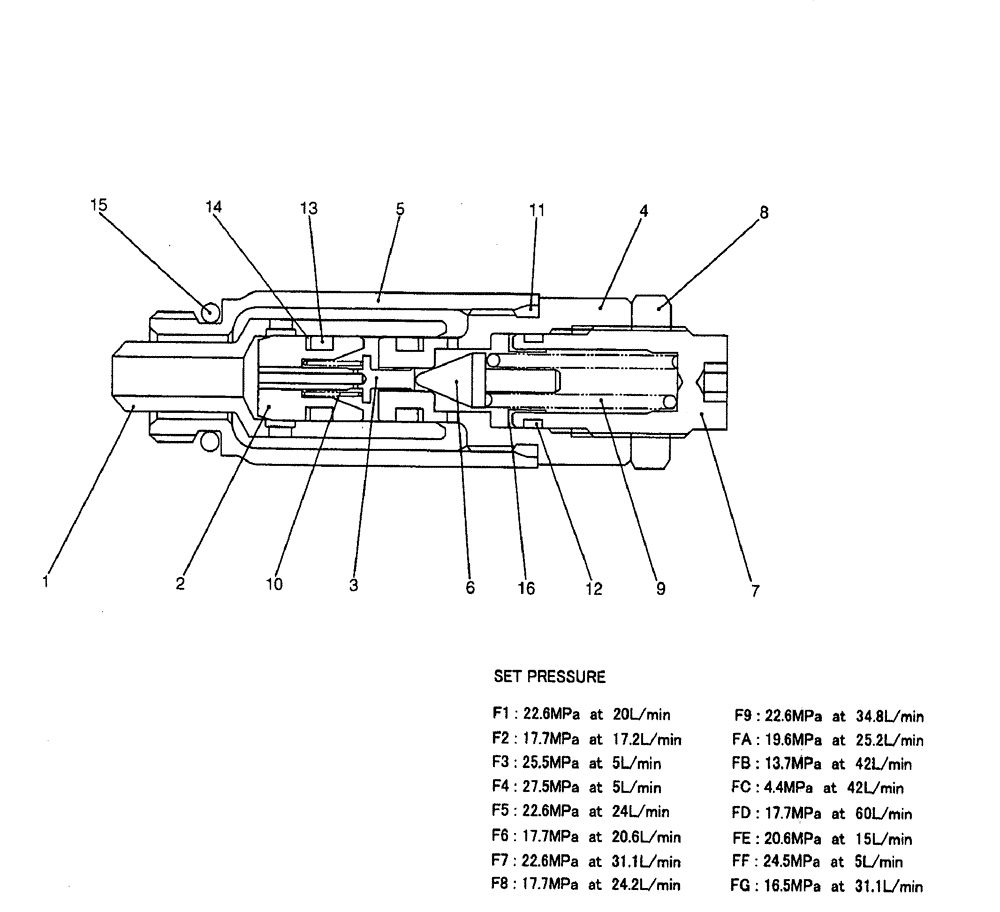

Запчасти Case CX50B (08-016) - VALVE ASSEMBLY, OVERLOAD RELIEF ELECTRICAL AND HYDRAULIC COMPONENTS

PM22V00005F1

BLEEDER VALVE

ASSY, OVERLOAD RELIEF

1шт.

PM22V00005F2

VALVE

ASSY, OVERLOAD RELIEF

1шт.

PM22V00005F3

VALVE PRESSURE RELIE

ASSY, OVERLOAD

1шт.

PM22V00005F4

VALVE PRESSURE RELIE

ASSY, OVERLOAD

1шт.

PM22V00005F5

VALVE PRESSURE RELIE

ASSY, OVERLOAD

1шт.

PM22V00005F6

VALVE

ASSY, OVERLOAD

1шт.

1

NSS

NOT SOLD SEPARAT

SOCKET

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE, CONTROL

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

BODY

1шт.

5

NSS

NOT SOLD SEPARAT

BODY

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE, CONTROL

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, ADJUST

1шт.

8

NSS

NOT SOLD SEPARAT

NUT

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING

1шт.

11

ZD12P01500

O-RING

1шт.

12

2436R612S13

O-RING

1шт.

13

PH22V00003S013

O-RING

2шт.

14

PH22V00003S014

BACK-UP RING

2шт.

15

ZD12P01400

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

GUIDE

1шт.
