(08-013) - VALVE ASSEMBLY, CONTROL (BUCKET)

Запчасти Case CX50B (08-013) - VALVE ASSEMBLY, CONTROL (BUCKET) ELECTRICAL AND HYDRAULIC COMPONENTS

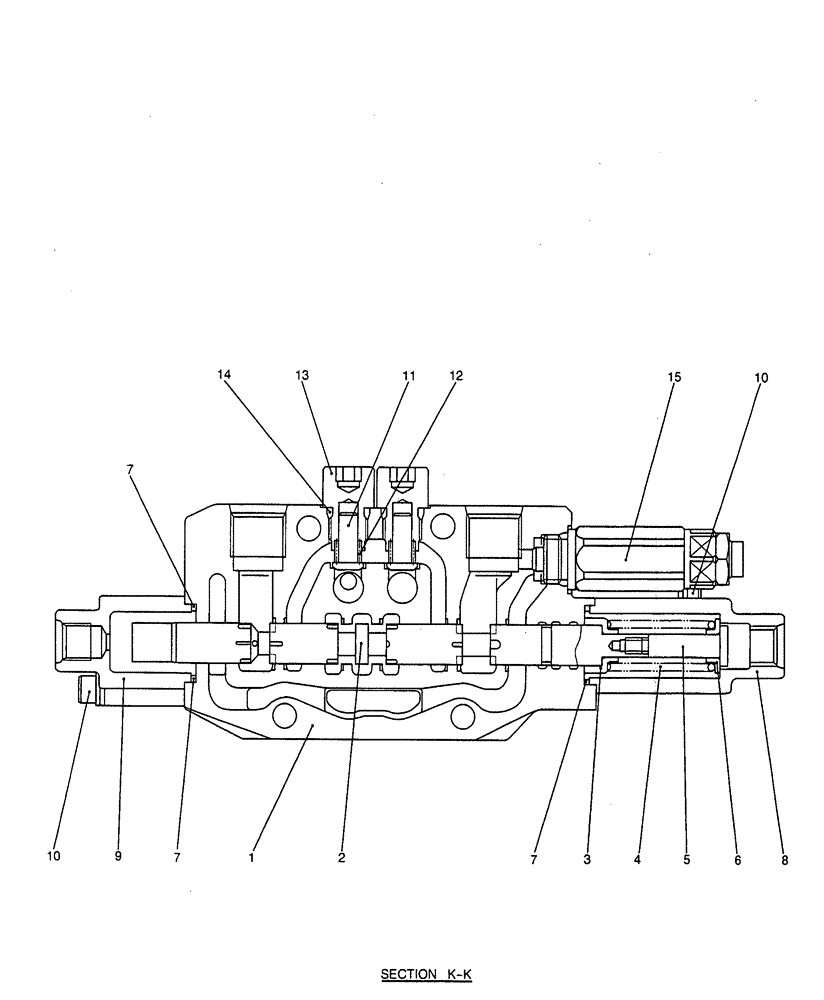

Схема запчастей Case CX50B - (08-013) - VALVE ASSEMBLY, CONTROL (BUCKET) ELECTRICAL AND HYDRAULIC COMPONENTS
10
7
15
11
1
14
2
6
5
10
7
9
8
4
13
3
7
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY30V00046F1

VALVE SECTION

ASSY, CONTROL

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT, SPACER

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

7

PH30V00009S007

O-RING

2шт.

8

PH30V00009S008

COVER

CAP

1шт.

9

PH30V00009S011

COVER

CAP

1шт.

10

PH30V00009S019

CAPSCREW

CAP

4шт.

11

PH30V00003S006

POPPET

2шт.

12

PH30V00003S007

SPRING

2шт.

13

PH30V00009S015

PLUG

2шт.

14

ZD12P01100

O-RING

2шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

ASSY, OVERLOAD, SEE FIG. 08-016

1шт.

PY30V00046R100

REPAIR KIT

REPAIR KIT CONSISTS OF REF. 2 (1), 3 (1), 4 (1), 5 (1), 6 (1)

1шт.
