(08-011) - VALVE ASSEMBLY, CONTROL (TRAVEL LEFT)

Запчасти Case CX50B (08-011) - VALVE ASSEMBLY, CONTROL (TRAVEL LEFT) ELECTRICAL AND HYDRAULIC COMPONENTS

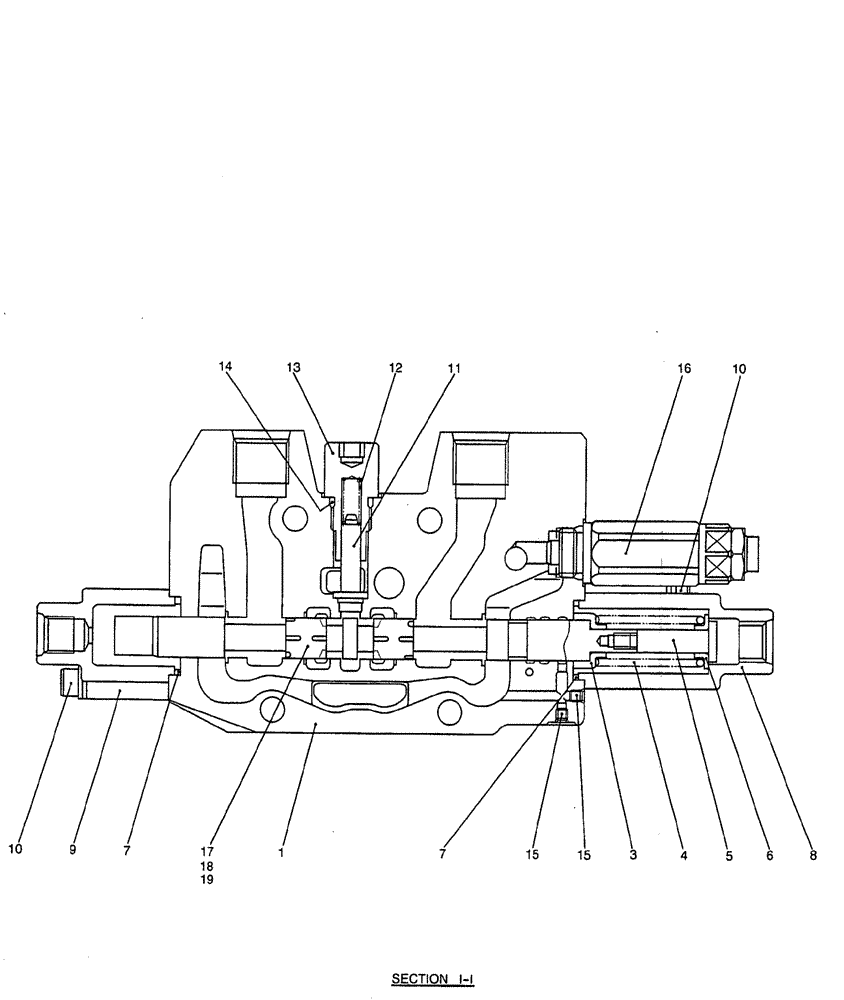

Схема запчастей Case CX50B - (08-011) - VALVE ASSEMBLY, CONTROL (TRAVEL LEFT) ELECTRICAL AND HYDRAULIC COMPONENTS
18
4
19
15
12
11
1
10
3
7
17
10
7
16
13
5
14
15
6
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY30V00044F2

VALVE

ASSY, CONTROL

1шт.

PY30V00044F3

VALVE SECTION

VALVE ASSY, CONTROL

1шт.

PY30V00044F4

VALVE SECTION

ASSY

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT, SPACER

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

7

PH30V00009S007

O-RING

2шт.

8

PH30V00009S008

COVER

CAP

1шт.

9

PH30V00009S011

COVER

CAP

1шт.

10

PH30V00009S019

CAPSCREW

CAP

4шт.

11

PH30V00014S012

POPPET

1шт.

12

PH30V00014S013

SPRING

1шт.

13

PH30V00014S015

PLUG

1шт.

14

ZD12P01100

O-RING

1шт.

15

2436U1317S22

PLUG

2шт.

16

PM22V00005F4

VALVE PRESSURE RELIE

ASSY, OVERLOAD, SEE FIG. 08-016

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

PY30V00044R200

REPAIR KIT

CONSISTS OF REF. 3 (1), 4 (1), 5 (1), 6 (1), 17 (1)

1шт.

PY30V00044R300

REPAIR KIT CONSISTS OF REF. 3 (1), 4 (1), 5 (1), 6 (1), 18 (1)

1шт.

PY30V00044R400

REPAIR KIT

CONSISTS OF REF. 3 (1), 4 (1), 5 (1), 6 (1), 19 (1)

1шт.
