(08-008) - VALVE ASSEMBLY, CONTROL (BOOM SWING)

Запчасти Case CX50B (08-008) - VALVE ASSEMBLY, CONTROL (BOOM SWING) ELECTRICAL AND HYDRAULIC COMPONENTS

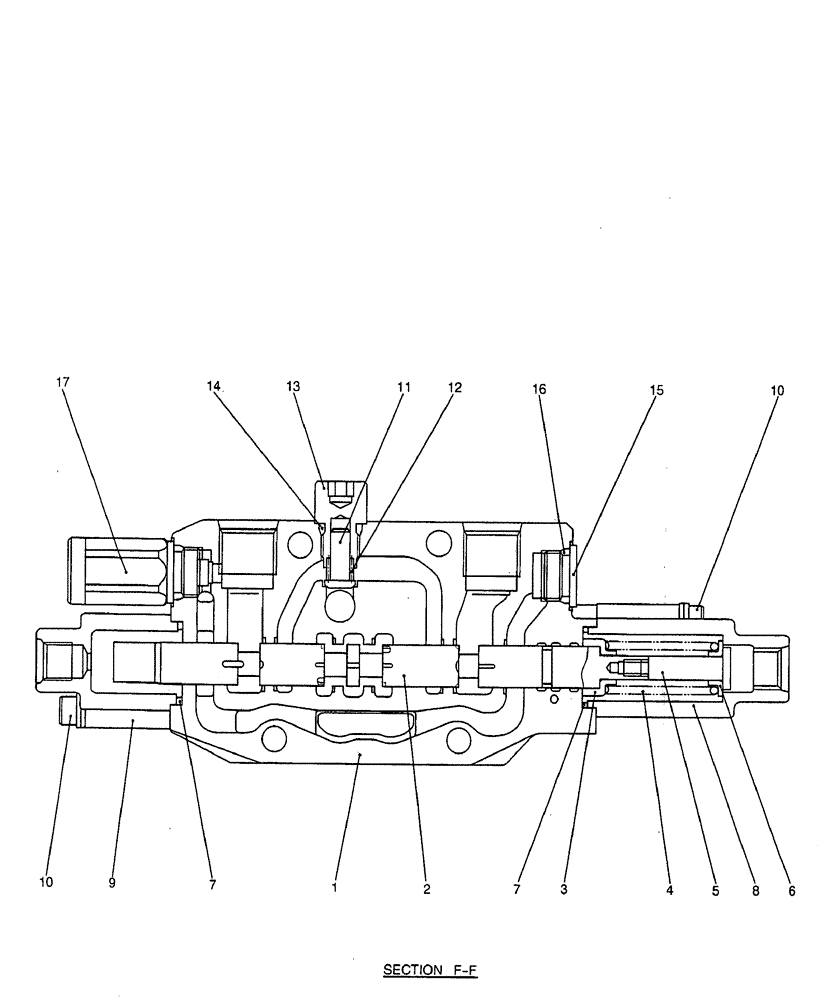

Схема запчастей Case CX50B - (08-008) - VALVE ASSEMBLY, CONTROL (BOOM SWING) ELECTRICAL AND HYDRAULIC COMPONENTS
12
3
5
2
10
13
7
1
10
15
14
8
7
4
9
16
6
11
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY30V00048F1

VALVE SECTION

VALVE ASSY, CONTROL

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT, SPACER

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

7

PH30V00009S007

O-RING

2шт.

8

PH30V00009S008

COVER

CAP

1шт.

9

PH30V00009S011

COVER

CAP

1шт.

10

PH30V00009S019

CAPSCREW

CAP

4шт.

11

PH30V00003S006

POPPET

1шт.

12

PH30V00003S007

SPRING

1шт.

13

PH30V00009S015

PLUG

1шт.

14

ZD12P01100

O-RING

1шт.

15

PL30V00007S034

PLUG

1шт.

16

ZD12P01400

O-RING

1шт.

17

PH21V00001F1

BLEEDER VALVE

ASSY, ANTI CAVITATION

1шт.

PY30V00048R100

REPAIR KIT

CONSISTS OF REF. 2 (1), 3 (1), 4 (1), 5 (1), 6 (1)

1шт.
