(08-007) - VALVE ASSEMBLY, CONTROL (SERVICE)

Запчасти Case CX50B (08-007) - VALVE ASSEMBLY, CONTROL (SERVICE) ELECTRICAL AND HYDRAULIC COMPONENTS

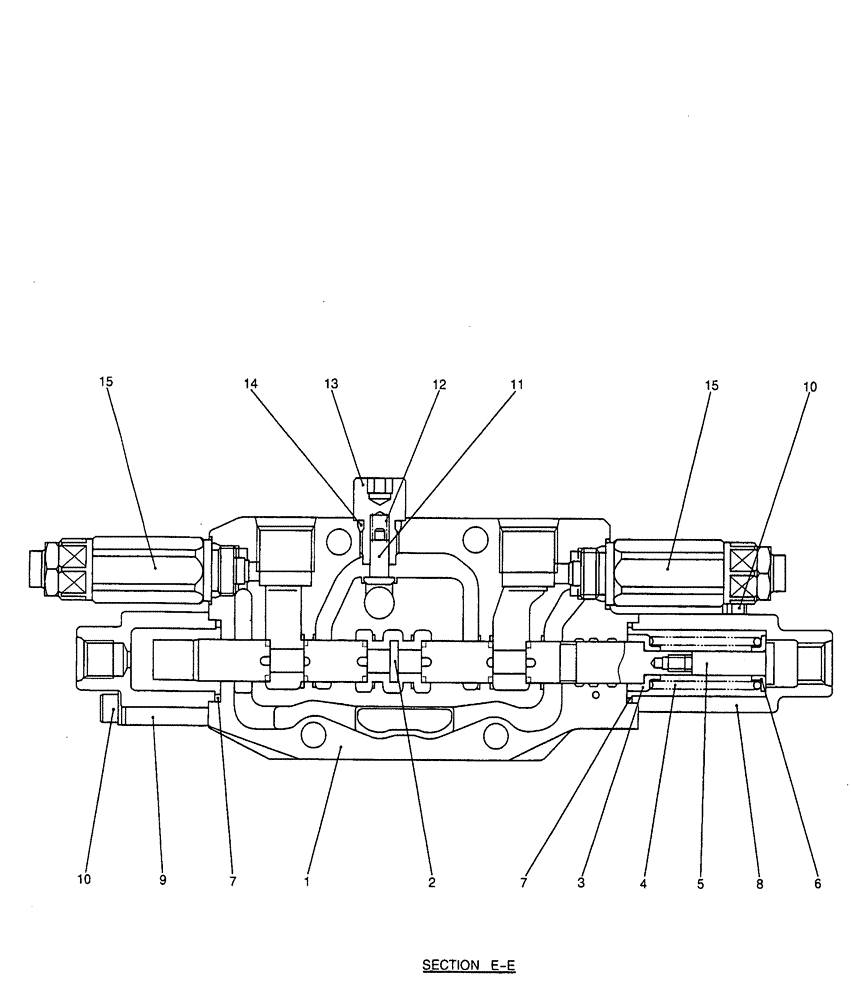

Схема запчастей Case CX50B - (08-007) - VALVE ASSEMBLY, CONTROL (SERVICE) ELECTRICAL AND HYDRAULIC COMPONENTS
10
8
15
7
5
7
3
6
4
1
11
13
15
9
10
12
14
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY30V00047F1

VALVE SECTION

ASSY

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT, SPACER

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

7

PH30V00009S007

O-RING

2шт.

8

PH30V00009S008

COVER

CAP

1шт.

9

PH30V00009S011

COVER

CAP

1шт.

10

PH30V00009S019

CAPSCREW

CAP

4шт.

11

PF30V00005S009

POPPET

1шт.

12

PF30V00005S010

SPRING

1шт.

13

YJ30V00024S013

PLUG

1шт.

14

ZD12P01100

O-RING

1шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

ASSY, OVERLOAD, SEE FIG. 08-016

2шт.

PY30V00040R100

REPAIR KIT

CONSISTS OF REF. 2 (1), 3 (1), 4 (1), 5 (1), 6 (1)

1шт.
