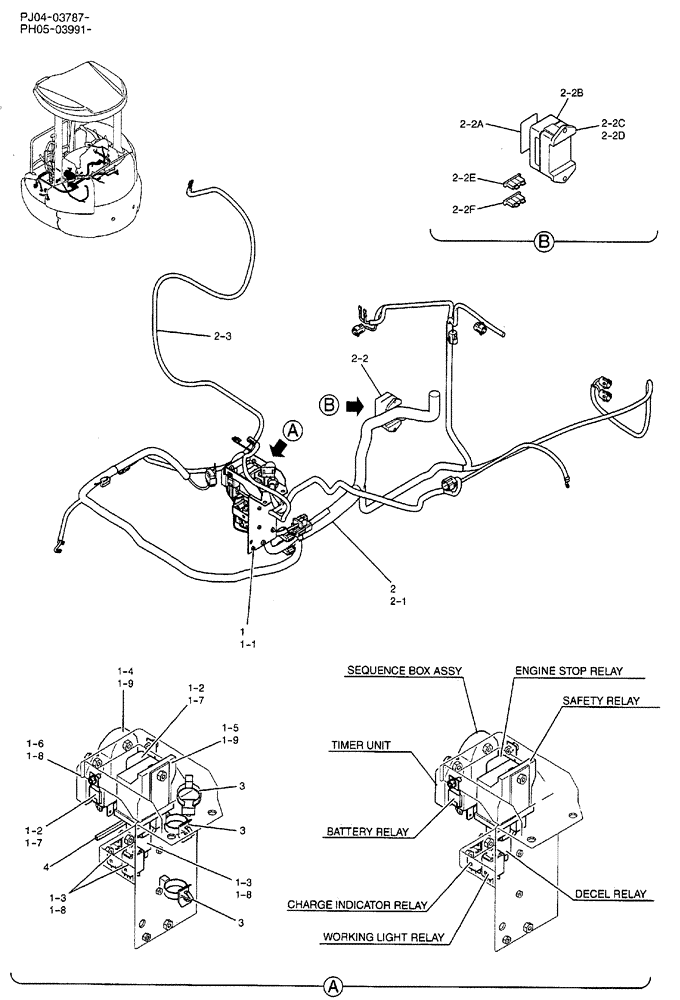

Запчасти Case CX50B (02-102) - RELAY ASSEMBLY P/N PH24E00026F1 (05) - SUPERSTRUCTURE

PH24E00026F1

RELAY

RELAY ASSY

1шт.

1

PM24E00038F1

KIT

ASSY

1шт.

1-1

PM24E01072P3

PLATE

1шт.

1-2

PH24S00001P1

RELAY,12V, 70amp

2шт.

1-3

PA24E01001P1

RELAY,12V - 20amp

3шт.

1-4

PA24S00002P3

RELAY,DC12V

1шт.

1-5

PX24S00001P1

RELAY

1шт.

1-6

PH25S00002P1

TIMER

1шт.

1-7

ZM61C05012

BOLT

SEMS

2шт.

1-8

ZM61C06016

BOLT

SEMS

3шт.

1-9

ZM61C06020

BOLT

SEMS

2шт.

2

PH14E01028P1

HARNESS

1шт.

PH73S00001P1

FUSE,45 Amp

Not Shown - 45A Fusible Link

1шт.

2-1

NSS

NOT SOLD SEPARAT

HARNESS

1шт.

2-2

PW73E00001F1

FUSE,10 Amp

ASSY

1шт.

2-2a

PW73E01002P1

LABEL

1шт.

2-2b

2479U1458S2

COVER

1шт.

2-2c

2479U1458S1

BASE

1шт.

2-2d

2479U1458S3

BLOCK

1шт.

2-2e

2479R655S8

FUSE,10 Amp

2шт.

2-2f

YN73E00001S022

FUSE,30 Amp

7шт.

2-3

PH14E01018D1

HARNESS

1шт.

3

YN03E01001D5

CLIP

3шт.

4

YN22M01006D5

BUSHING,50mm L

1шт.
