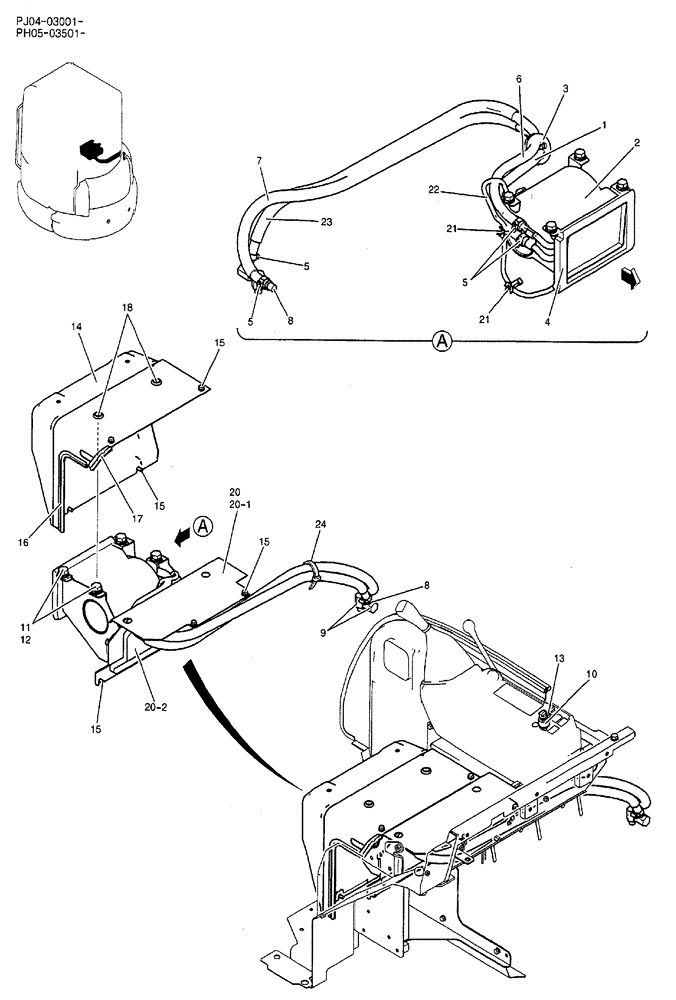

Запчасти Case CX50B (02-092) - HEATER ASSEMBLY (WITH HEATER) (05) - SUPERSTRUCTURE

PH21M00005F1

HOSE

HEATER ASSY

1шт.

1

R18T0026D3

HOSE ASSY.

1шт.

2

PM21M00005F1

HEATER ASSY.

Components are NSS, Includes Blower Motor

1шт.

3

PW03M01461P1

GROMMET

1шт.

4

PW21M01021P1

RUBBER

1шт.

5

ZC16X02000

CLIP

4шт.

6

R18T0026D55

HOSE,12mm ID x 1350mm L

1шт.

7

YN20M01046DV

PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 950.00mm

1шт.

8

2444Z1630

FITTING

CONNECTOR

2шт.

9

PM21M01018P1

ELBOW

2шт.

10

PY50S00003P1

SWITCH

, Serial Range: PJ04-03001-PJ04-03060

1шт.

10

PY50S00003P1

SWITCH

, Serial Range: PH05-03501-PH05-03786

1шт.

PY50S00003P2

SWITCH

, Start Serial: PJ04-03061

1шт.

PY50S00003P2

SWITCH

, Start Serial: PH05-03787

1шт.

11

PV01P01007P1

WASHER

4шт.

12

ZM11C08016

BOLT

SEMS

4шт.

13

PW17M01019P1

LABEL

1шт.

14

PW03M01492P2

COVER

COVER

1шт.

15

PA03M01093D2

BOLT

SEMS

10шт.

16

YN21C01712D5

WEATHERSTRIP

1шт.

17

PM22C01013DE

WEATHERSEAL STRIP

1шт.

18

2420R429D4

GROMMET

2шт.

20

PH21M01018F1

COVER ASSY

1шт.

20-1

PW10M01144P3

COVER

1шт.

20-2

PH21M01017P1

FOAM INSULATION

1шт.

21

YN03E01001D5

CLIP

2шт.

22

PW13E01068P1

HARNESS

1шт.

23

YN20M01046D3

PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 800.00mm

1шт.

24

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

1шт.
