(02-090) - GAUGE ASSEMBLY, CLUSTER

Запчасти Case CX50B (02-090) - GAUGE ASSEMBLY, CLUSTER (05) - SUPERSTRUCTURE

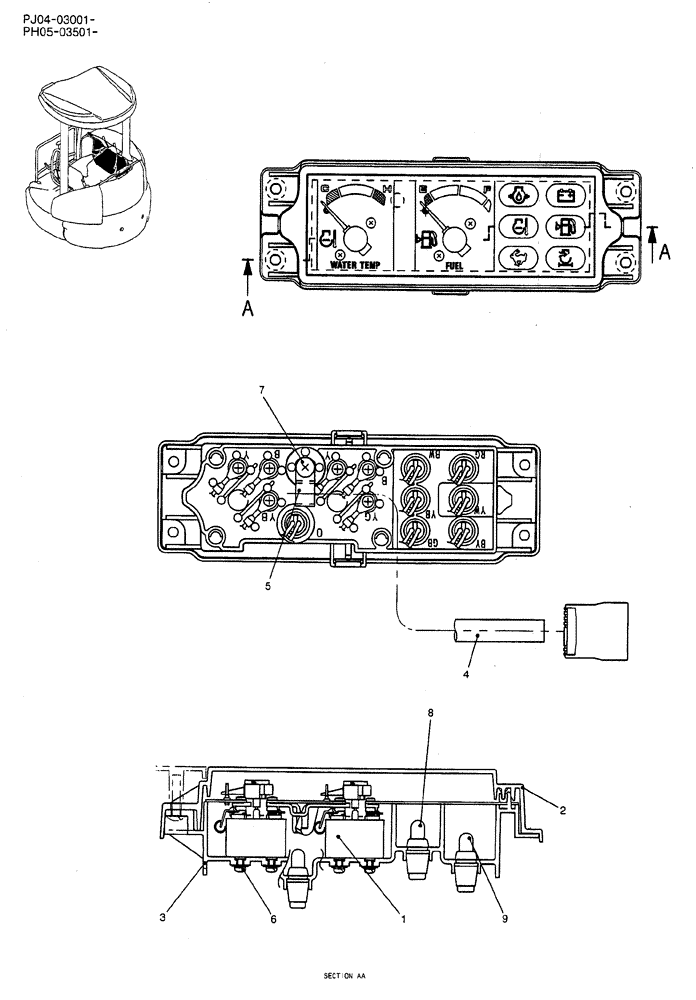

Схема запчастей Case CX50B - (02-090) - GAUGE ASSEMBLY, CLUSTER (05) - SUPERSTRUCTURE
4
1
9
3
8
6
5
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH59S00005F1

GAUGE ASSY.

CLUSTER

1шт.

1

PH59S00005S001

GAUGE ASSY.

1шт.

2

PH59S00005S002

GLASS

1шт.

3

PH59S00005S003

CASE

1шт.

4

PH59S00005S004

HARNESS

1шт.

5

PH59S00005S005

CLIP

1шт.

6

PH59S00005S006

SCREW

MACHINE

6шт.

7

PH59S00005S007

SCREW

MACHINE

1шт.

8

PH59S00005S008

LAMP

6шт.

9

PH59S00005S009

LAMP

1шт.
