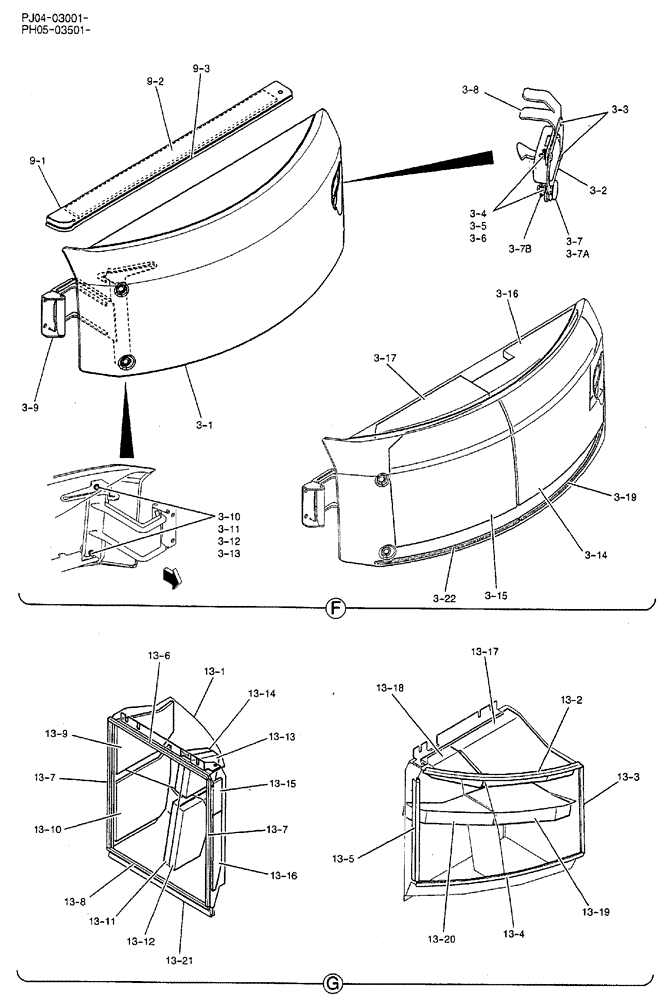

Запчасти Case CX50B (02-088) - GUARD INSTAL (CAB) (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
3-1
PH22C01136P1
COWLING
BONNET
1шт.
3-2
PW22C01067P1
LOCK
1шт.
3-3
PH22C01023P1
BOLT
4шт.
3-4
ZN18C05004
NUT
4шт.
3-5
ZW26X05000
LOCK WASHER
LOCK
4шт.
3-6
ZW16H05000
WASHER
4шт.
3-7
PM21C01268F1
LOCK
ASSY
1шт.
3-7a
YR22C01025P2
LOCK
1шт.
3-7b
PM21C01269P1
PLATE
1шт.
3-8
PW22C01160P2
BRACKET
GUIDE
1шт.
3-9
PH22C01108P1
HINGE
1шт.
3-10
PW21C01413P1
CAPSCREW
CAP
2шт.
3-11
ZW16X08000
WASHER,8mm ID x 17mm OD x 1.6mm Thk
2шт.
3-12
ZW26X08000
LOCK WASHER
Lock
2шт.
3-13
ZN18C08007
NUT
2шт.
3-14
PH22C01182P1
FOAM INSULATION
, Serial Range: PJ04-03001-PJ04-03129
1шт.
3-14
PH22C01182P1
FOAM INSULATION
, Serial Range: PH05-03501-PH05-03605
1шт.
PH22C01182P2
FOAM INSULATION
, Start Serial: PJ04-03130
1шт.
PH22C01182P2
FOAM INSULATION
, Start Serial: PH05-03606
1шт.
3-15
PH22C01183P1
FOAM INSULATION
1шт.
3-16
PH22C01186P1
FOAM INSULATION
1шт.
3-17
PH22C01185P1
FOAM INSULATION
1шт.
3-19
PH21C01160D3
WEATHERSTRIP
1шт.
3-22
PM22C01013D4
WEATHERSEAL STRIP
1шт.
9-1
PH21C01416P1
COVER
COVER
1шт.
9-2
PH21C01400P1
FOAM INSULATION
1шт.
9-3
PH21C01531P1
WEATHERSTRIP
1шт.
13-1
PH22C01152P1
DUCT
1шт.
13-2
PY01P01019D2
WEATHERSTRIP
1шт.
13-3
LE21C01070DR
WEATHERSTRIP
STRIP, WEATHER
1шт.
13-4
YT21C01163D2
WEATHERSTRIP
1шт.
13-5
PY01P01019DJ
WEATHERSTRIP
1шт.
13-6
PH22C01163D1
RUBBER
1шт.
13-7
PH22C01163D2
RUBBER
2шт.
13-8
PH22C01163D3
RUBBER
1шт.
13-9
PH22C01164P2
FOAM INSULATION
1шт.
13-10
PH22C01190P1
FOAM INSULATION
1шт.
13-11
PH22C01166P2
FOAM INSULATION
1шт.
13-12
PH22C01188P1
FOAM INSULATION
1шт.
13-13
PH22C01168P2
FOAM INSULATION
1шт.
13-14
PH22C01169P2
FOAM INSULATION
1шт.
13-15
PH22C01170P1
FOAM INSULATION
1шт.
13-16
PH22C01171P2
FOAM INSULATION
1шт.
13-17
PH22C01172P2
FOAM INSULATION
1шт.
13-18
PH22C01173P2
FOAM INSULATION
1шт.
13-19
PH22C01174P2
FOAM INSULATION
1шт.
13-20
PH22C01187P1
FOAM INSULATION
1шт.
13-21
YN21C01692D5
STRIP
1шт.
Выбрано товаров: 48
