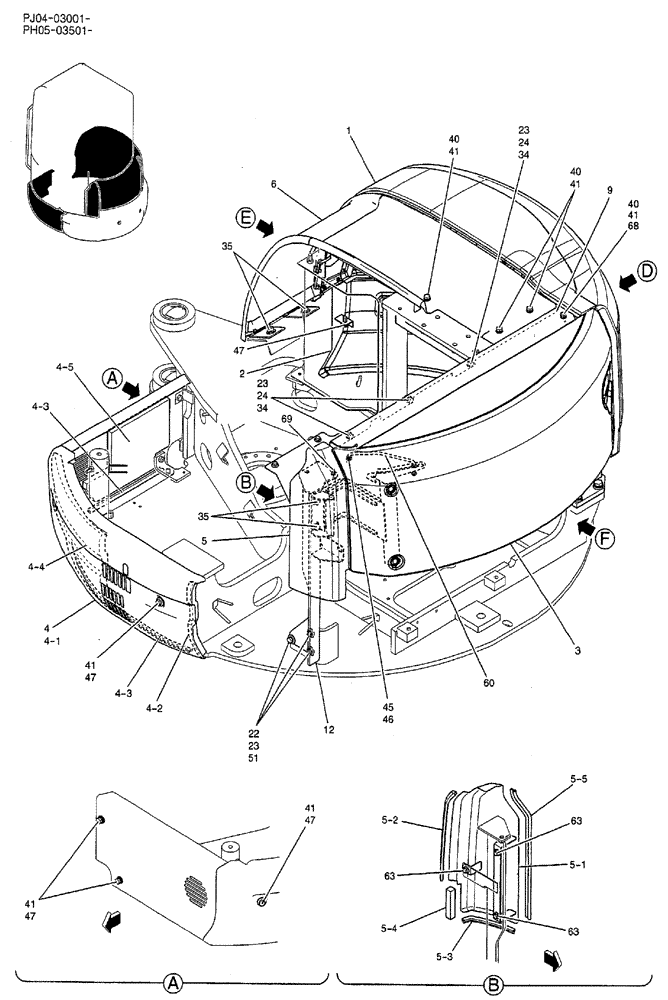

Запчасти Case CX50B (02-085) - GUARD INSTAL (CAB) P/N PH21C00011F1 (05) - SUPERSTRUCTURE

PH21C00011F1

GUARD INSTAL

1шт.

1

PH21C00007F1

COVER ASSY

ASSY, SIDE

1шт.

2

PW21C01569F1

COVER

COVER ASSY

1шт.

3

PH22C00009F1

COVER ASSY

BONNET ASSY

1шт.

4

PH21C00009F1

COVER ASSY

COVER ASSY, L/H

1шт.

4-1

PH21C01317P1

COVER

COVER ASSY

1шт.

4-2

PM21C01233P1

RUBBER

1шт.

4-3

YT21C01039DM

WEATHERSTRIP

1шт.

4-4

PW21C01683P1

FOAM INSULATION

1шт.

4-5

PH21C01398P1

FOAM INSULATION

1шт.

5

PH21C01411F1

COVER ASSY

COVER ASSY

1шт.

5-1

PH21C01412P1

COVER

1шт.

5-2

YN21C01528DA

WEATHERSTRIP

1шт.

5-3

YN21C01136D7

WEATHERSTRIP

1шт.

5-4

PW21C01718D1

RUBBER

1шт.

5-5

YT21C01039DL

WEATHERSTRIP

1шт.

6

PH21C01470F1

COVER

GUARD ASSY

1шт.

9

PH21C01352F1

COVER ASSY

1шт.

12

PH21C01324P1

STAY

, Serial Range: PJ04-03001-PJ04-03041

1шт.

12

PH21C01324P1

STAY

, Serial Range: PH05-03501-PH05-03540

1шт.

PH21C01324P2

STAY

, Serial Range: PJ04-03042-PJ04-04594

1шт.

PH21C01324P2

STAY

, Serial Range: PH05-03541-PH05-04175

1шт.

PH21C01324P3

STAY

STAY, Start Serial: PJ04-04595

1шт.

PH21C01324P3

STAY

STAY, Start Serial: PH05-04176

1шт.

22

ZS18C10035

SCREW,Hex, M10 x 35mm

CAP

3шт.

23

ZW26X10000

LOCK WASHER

6шт.

24

ZW16X10000

WASHER

3шт.

34

ZS18C10025

SCREW,Hex, M10 x 25mm

3шт.

35

YN02C01299P1

BOLT

M12x1.75x35mm (Incls. Washer & Lockwasher)

4шт.

40

PA41C01005D1

BOLT

SEMS, Serial Range: PJ04-03001-PJ04-03129

4шт.

40

PA41C01005D1

BOLT

SEMS, Serial Range: PH05-03501-PH05-03605

4шт.

PA41C01005D1

BOLT

SEMS, Start Serial: PJ04-03130

3шт.

PA41C01005D1

BOLT

SEMS, Start Serial: PH05-03606

3шт.

41

YT21C01187P1

WASHER

, Serial Range: PJ04-03001-PJ04-03316

8шт.

41

YT21C01187P1

WASHER

, Serial Range: PH05-03501-PH05-03717

8шт.

YT21C01187P2

WASHER

, Start Serial: PJ04-03317

7шт.

YT21C01187P2

WASHER

, Start Serial: PH05-03718

7шт.

45

ZW11X08000

WASHER

1шт.

46

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

47

PA41C01005D3

BOLT

SEMS

5шт.

51

2418T12346

WASHER

ID 11 x OD 30 x Th 3.2mm

3шт.

60

PH22C01109P1

STAY

1шт.

63

PM21C01202P1

BOLT

SEMS

3шт.

68

PA41C01005D2

BOLT (STEP)

SEMS, Start Serial: PJ04-03130

1шт.

68

PA41C01005D2

BOLT (STEP)

SEMS, Start Serial: PH05-03606

1шт.

69

ZM73C10025

BOLT,M10x25mm - Course Thread

M10x1.50x25mm (Incls. Washer), Start Serial: PJ04-04595

1шт.

69

ZM73C10025

BOLT,M10x25mm - Course Thread

M10x1.50x25mm (Incls. Washer), Start Serial: PH05-04176

1шт.
