Запчасти Case CX50B (02-084) - GUARD INSTAL (CANOPY) P/N PH22C01136P1 (05) - SUPERSTRUCTURE

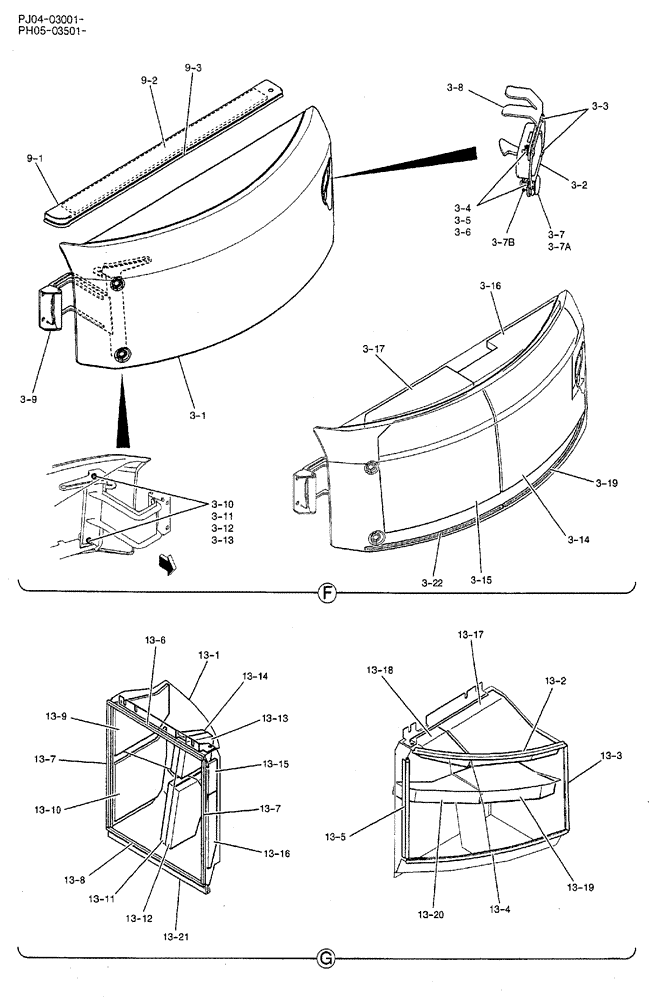

Схема запчастей Case CX50B - (02-084) - GUARD INSTAL (CANOPY) P/N PH22C01136P1 (05) - SUPERSTRUCTURE
3-19
3-8
3-22
3-13
3-3
13-3
3-12
13-13
3-7
13-1
9-2
13-20
13-7
9-3
3-2
3-14
13-2
3-9
3-6
13-9
3-17
13-14
3-10
3-7b
13-18
13-10
3-11
13-19
13-17
13-5
3-15
13-21
13-7
13-8
13-12
3-5
13-11
13-4
3-4
3-1
13-6
13-16
3-7a
3-16
13-15
9-1

Артикул

Название

Примечание

Количество

3-1

PH22C01136P1

COWLING

BONNET

1шт.

3-2

PW22C01067P1

LOCK

1шт.

3-3

PH22C01023P1

BOLT

4шт.

3-4

ZN18C05004

NUT

4шт.

3-5

ZW26X05000

LOCK WASHER

LOCK

4шт.

3-6

ZW16H05000

WASHER

4шт.

3-7

PM21C01268F1

LOCK

ASSY

1шт.

3-7a

YR22C01025P2

LOCK

1шт.

3-7b

PM21C01269P1

PLATE

1шт.

3-8

PW22C01160P2

BRACKET

GUIDE

1шт.

3-9

PH22C01108P1

HINGE

1шт.

3-10

PW21C01413P1

CAPSCREW

CAP

2шт.

3-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

3-12

ZW26X08000

LOCK WASHER

Lock

2шт.

3-13

ZN18C08007

NUT

2шт.

3-14

PH22C01182P2

FOAM INSULATION

1шт.

3-15

PH22C01183P1

FOAM INSULATION

1шт.

3-16

PH22C01186P1

FOAM INSULATION

1шт.

3-17

PH22C01185P1

FOAM INSULATION

1шт.

3-19

PH21C01160D3

WEATHERSTRIP

1шт.

3-22

PM22C01013D4

WEATHERSEAL STRIP

1шт.

9-1

PH21C01416P1

COVER

COVER

1шт.

9-2

PH21C01400P1

FOAM INSULATION

1шт.

9-3

PH21C01531P1

WEATHERSTRIP

1шт.

13-1

PH22C01152P1

DUCT

1шт.

13-2

PY01P01019D2

WEATHERSTRIP

1шт.

13-3

LE21C01070DR

WEATHERSTRIP

1шт.

13-4

YT21C01163D2

WEATHERSTRIP

1шт.

13-5

PY01P01019DJ

WEATHERSTRIP

1шт.

13-6

PH22C01163D1

RUBBER

1шт.

13-7

PH22C01163D2

RUBBER

2шт.

13-8

PH22C01163D3

RUBBER

1шт.

13-9

PH22C01164P2

FOAM INSULATION

1шт.

13-10

PH22C01190P1

FOAM INSULATION

1шт.

13-11

PH22C01166P2

FOAM INSULATION

1шт.

13-12

PH22G01188P1

INSULATION

1шт.

13-13

PH22C01168P2

FOAM INSULATION

1шт.

13-14

PH22C01169P2

FOAM INSULATION

1шт.

13-15

PH22C01170P1

FOAM INSULATION

1шт.

13-16

PH22C01171P2

FOAM INSULATION

1шт.

13-17

PH22C01172P2

FOAM INSULATION

1шт.

13-18

PH22C01173P2

FOAM INSULATION

1шт.

13-19

PH22C01174P2

FOAM INSULATION

1шт.

13-20

PH22C01187P1

FOAM INSULATION

1шт.

13-21

YN21C01692D5

STRIP

TRIM

1шт.

Выбрано товаров: 45
