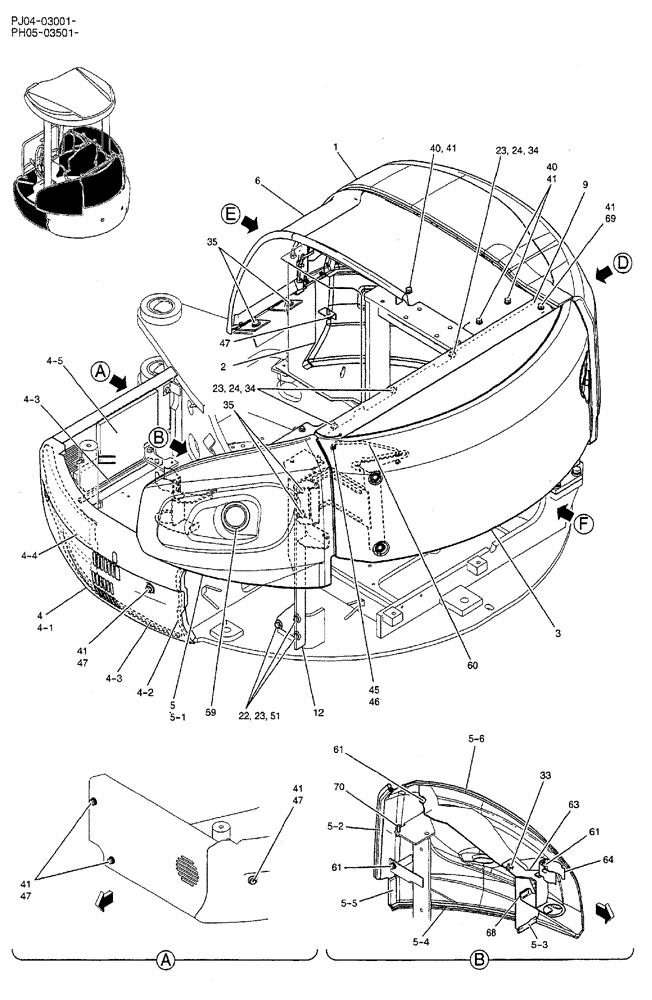

Запчасти Case CX50B (02-081) - GUARD INSTAL (CANOPY) P/N PH21C00013F1 (05) - SUPERSTRUCTURE

PH21C00013F1

GUARD

INSTAL

1шт.

1

PH21C00007F1

COVER ASSY

SIDE

1шт.

2

PW21C01569F1

COVER

COVER ASSY

1шт.

3

PH22C00009F1

COVER ASSY

BONNET ASSY

1шт.

4

PH21C00009F1

COVER ASSY

COVER ASSY, L.H.

1шт.

4-1

PH21C01317P1

COVER

COVER ASSY

1шт.

4-2

PM21C01233P1

RUBBER

1шт.

4-3

YT21C01039DM

WEATHERSTRIP

1шт.

4-4

PW21C01683P1

FOAM INSULATION

1шт.

4-5

PH21C01398P1

FOAM INSULATION

INSULATION

1шт.

5

PH21C01387F1

COVER ASSY

COVER ASSY

1шт.

5-1

PH21C01316P1

COVER

COVER

1шт.

5-2

YZ21C01094D8

WEATHERSTRIP

1шт.

5-3

PM21C01152DR

WEATHERSTRIP

1шт.

5-4

PY21C01007DM

WEATHERSTRIP

1шт.

5-5

PW21C01718D1

RUBBER

1шт.

5-6

PE21C01135D3

TRIM PANEL

1шт.

6

PH21C01470F1

COVER

GUARD ASSY

1шт.

9

PH21C01352F1

COVER ASSY

1шт.

12

PH21C01324P2

STAY

, Serial Range: PJ04-03001-PJ04-04602

1шт.

12

PH21C01324P2

STAY

, Serial Range: PH05-03501-PH05-04244

1шт.

PH21C01324P3

STAY

, Start Serial: PJ04-04603

1шт.

PH21C01324P3

STAY

STAY, Start Serial: PH05-04245

1шт.

22

ZS18C10035

SCREW,Hex, M10 x 35mm

CAP

3шт.

23

ZW26X10000

LOCK WASHER

6шт.

24

ZW16X10000

WASHER

3шт.

33

PM21C01142P1

BOLT

SEMS

1шт.

34

ZS18C10025

SCREW,Hex, M10 x 25mm

3шт.

35

YN02C01299P1

BOLT

M12x1.75x35mm (Incls. Washer & Lockwasher)

4шт.

40

PA41C01O05D1

SEMS-BOLT

3шт.

41

YT21C01187P1

WASHER

, Serial Range: PJ04-03001-PJ04-03316

8шт.

41

YT21C01187P1

WASHER

, Serial Range: PH05-03501-PH05-03717

8шт.

YT21C01187P2

WASHER

, Start Serial: PJ04-03317

7шт.

YT21C01187P2

WASHER

, Start Serial: PH05-03718

7шт.

45

ZW11X08000

WASHER

1шт.

46

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

47

PA41C01005D3

BOLT

SEMS

5шт.

51

2418T12346

WASHER

ID 11 x OD 30 x Th 3.2mm

3шт.

59

PM20P01083P1

GROMMET

1шт.

60

PH22C01109P1

STAY

1шт.

61

PA21C01133P1

BOLT

SEMS, Serial Range: PJ04-03001-PJ04-03219

4шт.

61

PA21C01133P1

BOLT

SEMS, Serial Range: PH05-03501-PH05-03642

4шт.

PA21C01133P1

BOLT

, Start Serial: PJ04-03220

2шт.

PA21C01133P1

BOLT

, Start Serial: PH05-03643

2шт.

63

PW21C01743P2

BRACKET

, Serial Range: PJ04-03001-PJ04-03219

1шт.

63

PW21C01743P2

BRACKET

, Serial Range: PH05-03501-PH05-03642

1шт.

64

PM21C01563P1

HOLDER

, Serial Range: PJ04-03001-PJ04-03219

1шт.

64

PM21C01563P1

HOLDER

, Serial Range: PH05-03501-PH05-03642

1шт.

68

PA33H01057P1

RUBBER

, Serial Range: PJ04-03001-PJ04-03219

1шт.

68

PA33H01057P1

RUBBER

, Serial Range: PH05-03501-PH05-03642

1шт.

69

PA41C01005D2

BOLT (STEP)

SEMS

1шт.

70

ZM73C10025

BOLT,M10x25mm - Course Thread

M10x1.50x25mm (Incls. Washer), Start Serial: PJ04-04603

1шт.
