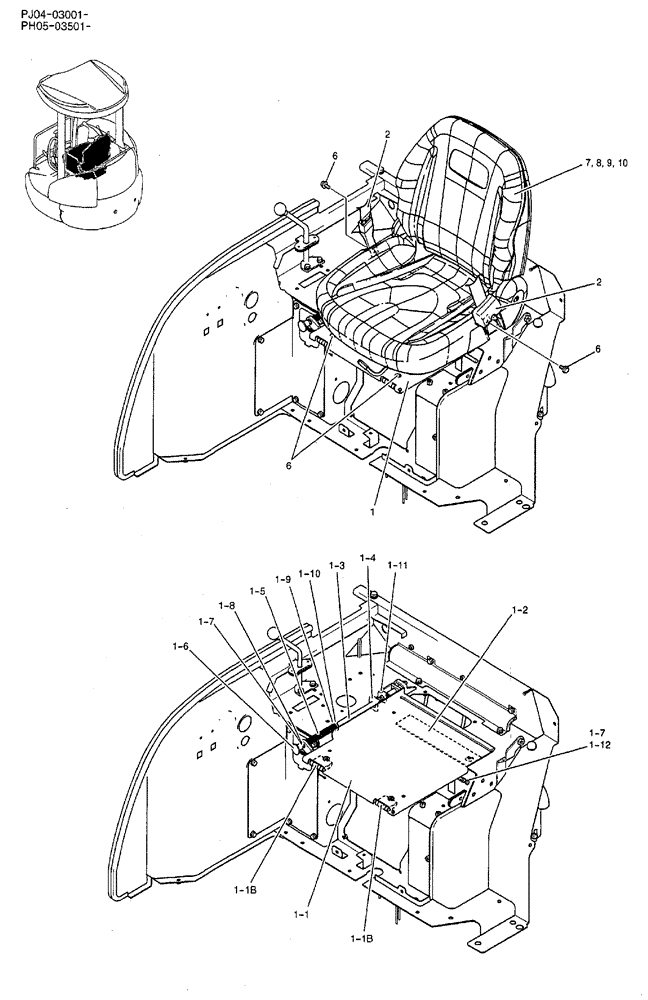

Запчасти Case CX50B (02-080) - SEAT INSTAL (05) - SUPERSTRUCTURE

PW25M00013F1

SEAT

INSTAL

1шт.

1

PW25M01037F1

COVER ASSY

1шт.

1-1

PW25M01044P4

COVER

, Serial Range: PH05-03501-PH05-03639

1шт.

PW25M01044P5

COVER

, Start Serial: PJ04-03212

1шт.

PW25M01044P5

COVER

, Start Serial: PH05-03640

1шт.

1-1b

PW10M01060P2

HINGE

, Serial Range: PJ04-03001-PJ04-03212

2шт.

1-1b

PW10M01060P2

HINGE

, Serial Range: PH05-03501-PH05-03639

2шт.

PW25M01069P1

HINGE

, Start Serial: PJ04-03212

2шт.

PW25M01069P1

HINGE

, Start Serial: PH05-03640

2шт.

1-2

PW25M01050P1

RUBBER

1шт.

1-3

PW25M01046P2

ROD, Serial Range: PH05-03501-PH05-03639

1шт.

PW25M01046P3

STOP

, Start Serial: PJ04-03213

1шт.

PW25M01046P3

STOP

ROD, Start Serial: PH05-03640

1шт.

1-4

PW25M01048D2

SPRING

1шт.

1-5

PW25M01047P1

SPRING

1шт.

1-6

PH03M01169P1

KNOB

1шт.

1-7

ZN18C08007

NUT

2шт.

1-8

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

1-9

ZW16X14000

WASHER

1шт.

1-10

ZR36X01000

RING

RETAINING

1шт.

1-11

ZM66C04008

BOLT

SEMS

2шт.

1-12

ZS28C08040

SCREW,Hex Socket Head, M8 x 40mm

CAPSCREW

1шт.

2

PW25M00015F1

SEAT BELT,48mm W x 1250mm L, Black

SAFETY BELT

1шт.

6

ZM27C10020

BOLT

SEMS

4шт.

7

PW25M00014F1

SEAT

ASSY

1шт.

8

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

9

ZW26X08000

LOCK WASHER

Lock

4шт.

10

ZN18C08007

NUT

4шт.
