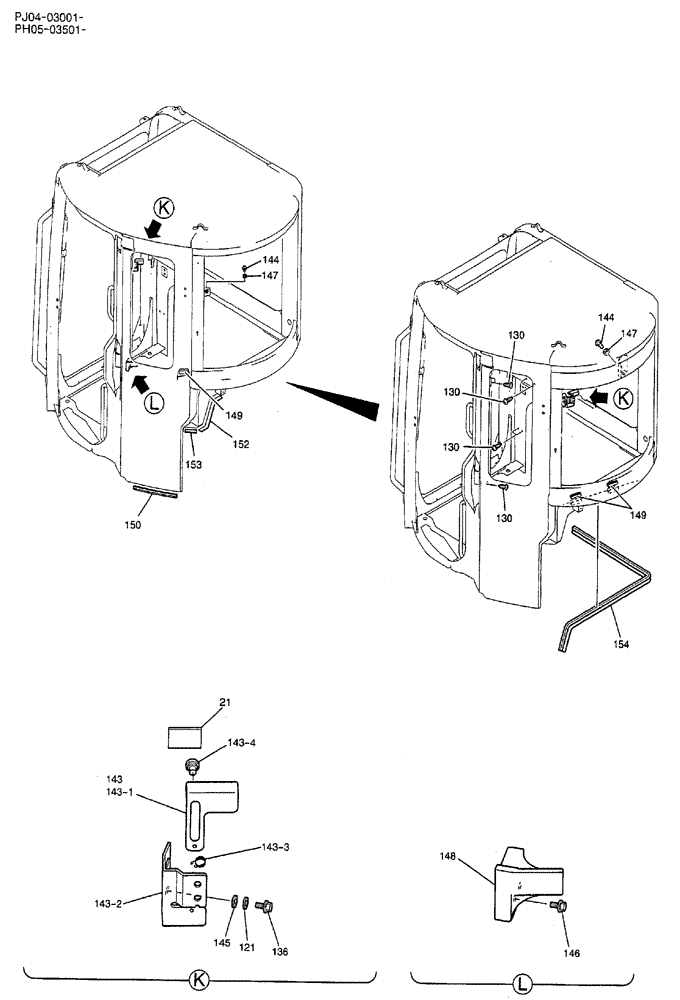

Запчасти Case CX50B (02-069) - CAB ASSEMBLY, P/N PA33H01057P1 (05) - SUPERSTRUCTURE

21

PA33H01057P1

RUBBER

1шт.

121

PM02C01504D1

SHIM,0.5mm Thk

, Serial Range: PJ04-03001-PJ04-03222

1шт.

121

PM02C01504D1

SHIM,0.5mm Thk

, Serial Range: PH05-03501-PH05-03663

1шт.

2420Z1227D2

SCREW

, Start Serial: PJ04-03223

8шт.

130

2420Z1227D2

SCREW

MACHINE SCREW, Start Serial: PH05-03664

8шт.

136

ZM46C06016

SCREW

SEMS

2шт.

143

PW02C01265F1

BRACKET

ASSY

1шт.

143-1

PW02C01260P1

PLATE

1шт.

143-2

PW02C01261P1

PLATE

1шт.

143-3

PW02C01262P1

SPRING

1шт.

143-4

PM02C01346P1

PIN

2шт.

144

YR02C01503P1

STOP

1шт.

145

PM02C01504D2

SHIM,1.0mm Thk

, Serial Range: PJ04-03001-PJ04-03222

2шт.

145

PM02C01504D2

SHIM,1.0mm Thk

, Serial Range: PH05-03501-PH05-03663

2шт.

146

ZM46C06030

BOLT

SEMS, Serial Range: PJ04-03001-PJ04-03222

2шт.

146

ZM46C06030

BOLT

SEMS, Serial Range: PH05-03501-PH05-03663

2шт.

147

ZN17C10006

NUT

1шт.

148

PW02C01239P1

HOLDER

, Serial Range: PJ04-03001-PJ04-03222

1шт.

148

PW02C01239P1

HOLDER

, Serial Range: PH05-03501-PH05-03663

1шт.

149

YT02C01081D1

SEAL

, Serial Range: PJ04-03001-PJ04-03222

1шт.

149

YT02C01081D1

SEAL

, Serial Range: PH05-03501-PH05-03663

1шт.

PY02C01087P1

STOP

, Start Serial: PJ04-03223

2шт.

PY02C01087P1

STOP

, Start Serial: PH05-03664

2шт.

150

PM02C01035D5

WEATHERSTRIP

STRIP, WEATHER, Serial Range: PJ04-03001-PJ04-03639

1шт.

PW02C01342D1

WEATHERSTRIP

, Start Serial: PJ04-03213

1шт.

PW02C01342D1

WEATHERSTRIP

, Start Serial: PH05-03640

1шт.

152

PF21C01175D2

RUBBER

1шт.

153

PF21C01175D3

RUBBER

, Serial Range: PJ04-03213-PJ04-03469

1шт.

153

PF21C01175D3

RUBBER

, Serial Range: PH05-03640-PH05-03881

1шт.

PW02C01353P1

WEATHERSTRIP

STRIP, WEATHER, Start Serial: PJ04-03470

1шт.

154

PW02C01353P1

WEATHERSTRIP

STRIP, WEATHER, Start Serial: PH05-03882

1шт.
