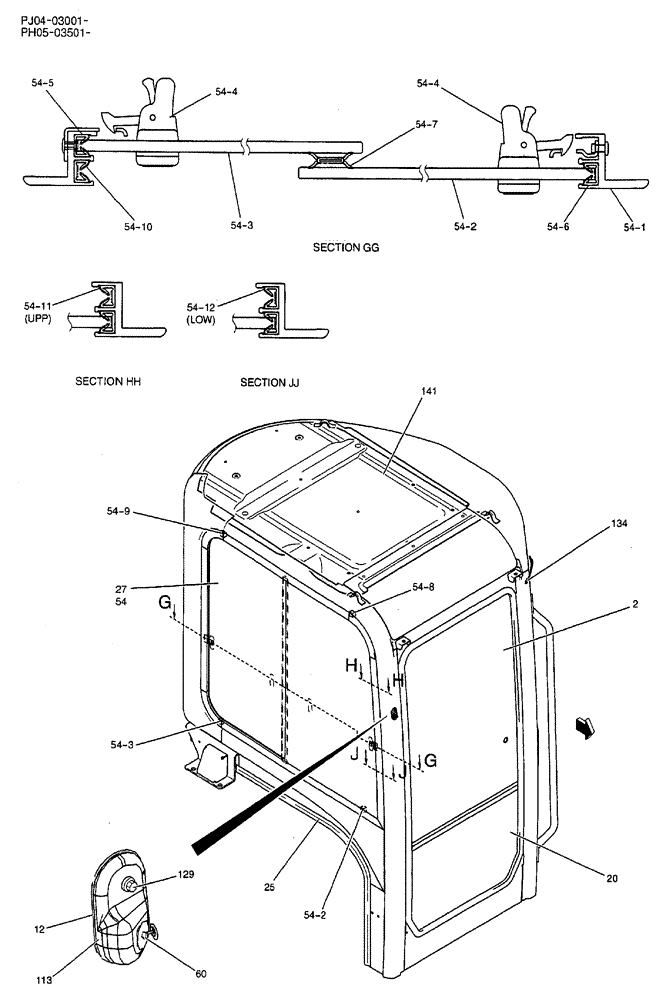

Запчасти Case CX50B (02-066) - CAB ASSEMBLY, P/N PW50C00002F1 (05) - SUPERSTRUCTURE

2

PW50C00002F1

WINDOW

Assembly - Inc. Frame SEE FIG. 02-071

1шт.

12

PM02C01475P1

RUBBER

1шт.

20

PW02C01117P1

GLASS

1шт.

25

PM02C01035D4

WEATHERSTRIP

, Serial Range: PJ04-03001-PJ04-03212

1шт.

25

PM02C01035D4

WEATHERSTRIP

, Serial Range: PH05-03501-PH05-03639

1шт.

PW02C01328D2

WEATHERSEAL STRIP

, Serial Range: PJ04-03213-PJ04-03469

1шт.

PW02C01328D2

WEATHERSEAL STRIP

, Serial Range: PH05-03640-PH05-03881

1шт.

27

PM02C01172D3

SEAL,7mm W x 4.8mm H x 4000mm L

1шт.

54

PW02C01114F1

GLASS

SASH ASSY

1шт.

54-1

PW02C01114S001

FRAME ASSY

1шт.

54-2

PW02C01224P1

GLASS

1шт.

54-3

PW02C01225P1

GLASS

1шт.

54-4

PW02C01114S004

LOCK ASSY

2шт.

54-5

PW02C01114S005

SEAL

1шт.

54-6

PW02C01114S006

SEAL

1шт.

54-7

PW02C01114S007

SEAL

1шт.

54-8

PW02C01114S008

STOP

2шт.

54-9

PW02C01114S009

STOP

2шт.

54-10

PW02C01114S010

SEAL

1шт.

54-11

PW02C01114S011

SEAL

1шт.

54-12

PW02C01114S012

SEAL

1шт.

60

PM02C01480P1

NOZZLE

1шт.

113

PM02C01474P1

BASE PLATE

1шт.

129

ZM46C05020

BOLT (STEP)

SEMS

1шт.

134

PW02C01162P1

GROMMET

1шт.

141

PW02C01295P1

FOAM INSULATION

, Serial Range: PJ04-03001-PJ04-03212

1шт.

141

PW02C01295P1

FOAM INSULATION

, Serial Range: PH05-03501-PH05-03639

1шт.

PW02C01295P2

FOAM INSULATION

, Start Serial: PJ04-03213

1шт.

PW02C01295P2

FOAM INSULATION

, Start Serial: PH05-03640

1шт.
