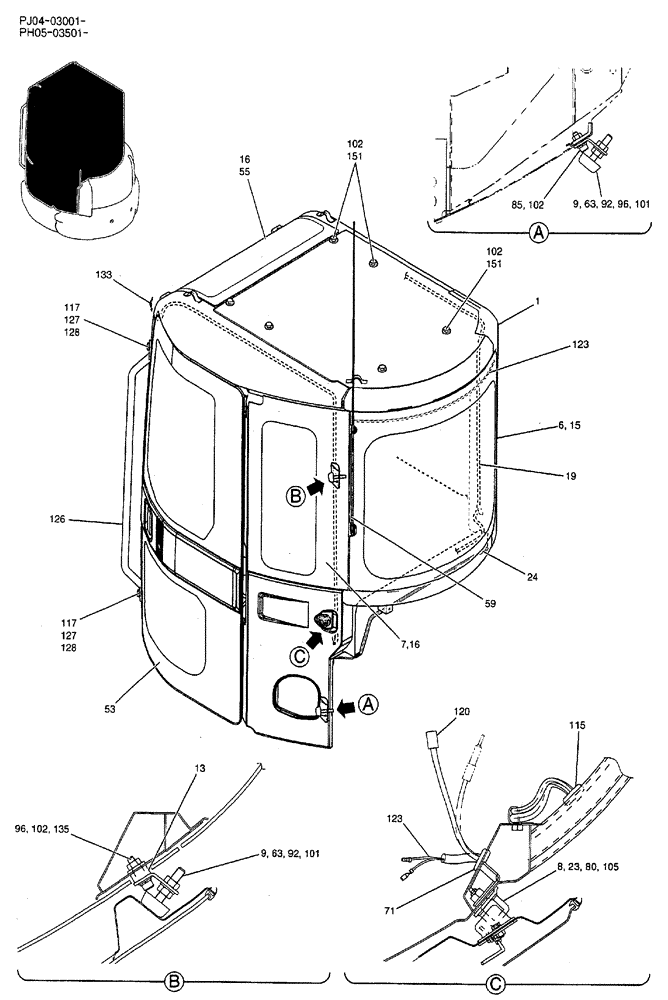

Запчасти Case CX50B (02-065) - CAB ASSEMBLY, P/N PW02C00015F1 (05) - SUPERSTRUCTURE

PW02C00015F1

CAB

ASSY

1шт.

1

PW02C00019P1

CAB

1шт.

6

PW02C01205P1

GLASS

1шт.

PW02C01336P2

LABEL

Decal, Window Tint (736x345.5mm) -- No Shown

1шт.

7

PW02C01204P1

GLASS

Window, LH AFT Cab

1шт.

8

YT51C01021P1

HOOK

1шт.

9

PW02C01110P1

BRACKET

2шт.

13

PW02C01220P1

SPACER

2шт.

15

PM02C01172D1

SEAL,7mm W x 4.8mm H x 3000mm L

1шт.

16

PM02C01172D2

SEAL,7mm W x 4.8mm H x 2500mm L

2шт.

19

PM02C01357P1

HARNESS

1шт.

23

YT51C01077D1

SPACER

1шт.

24

PM02C01035D3

WEATHERSTRIP

STRIP, WEATHER, Serial Range: PJ04-03001-PJ04-03212

1шт.

24

PM02C01035D3

WEATHERSTRIP

STRIP, WEATHER, Serial Range: PH05-03501-PH05-03639

1шт.

PW02C01328D1

STRIP, WEATHER, Serial Range: PJ04-03213-PJ04-03469

1шт.

PW02C01328D1

STRIP, WEATHER, Serial Range: PH05-03640-PH05-03881

1шт.

53

PM51C00006F1

DOOR ASSY.

CAB, SEE FIG. 02-072

1шт.

55

PW02C01293P1

GLASS

1шт.

59

PM54S00001P1

ANTENNA

1шт.

63

YT02C01066P1

STOP

2шт.

71

2420R372D16

GROMMET

1шт.

80

ZS68C10025

CAPSCREW

CAP

2шт.

85

ZS28C08025

SCREW,Hex Socket Head, M8 x 25mm

CAP

2шт.

92

ZN18F10008

NUT

2шт.

96

ZW26X08000

LOCK WASHER

Lock

4шт.

101

ZW16X10000

WASHER

2шт.

102

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

10шт.

105

PM02C01353P1

WASHER

1шт.

115

2420R372D15

GROMMET

1шт.

117

PM02C01482D6

NUT

2шт.

120

PM02C01499P1

HARNESS

1шт.

123

YT51C01081D2

SEAL

1шт.

126

PM41C00015P1

HANDRAIL

1шт.

127

YR02C01571D2

SCREW

CAP

2шт.

128

ZW16H10000

WASHER

WASHER

2шт.

133

PW11E01034D1

HARNESS

1шт.

135

ZS28C08035

SCREW,Hex Socket Head, M8 x 35mm

CAP

2шт.

151

ZS18C08012

SCREW,Hex, M8 x 12mm

CAP

6шт.
