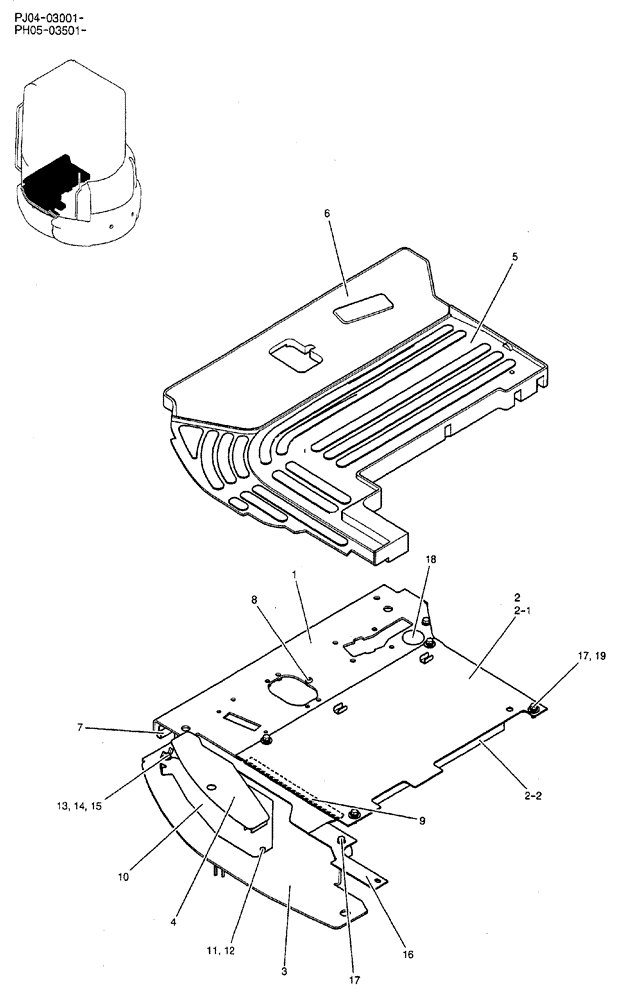

Запчасти Case CX50B (02-062) - PLATE GROUP, FLOOR (CAB) (05) - SUPERSTRUCTURE

PH03M00060F1

PLATE

GROUP, FLOOR

1шт.

1

PW03M01535P2

PLATE

1шт.

2

PH03M01479F1

COVER

COVER ASSY

1шт.

2-1

PW03M01592P1

COVER

COVER

1шт.

2-2

PH03M01478P1

FOAM INSULATION

1шт.

3

PH03M01452P2

HOLDER

BRACKET

1шт.

4

PH03M01458P1

COVER, Serial Range: PJ04-03001-PJ04-03338

1шт.

4

PH03M01458P1

COVER, Serial Range: PH05-03501-PH05-03778

1шт.

PH03M01458P2

COVER

COVER, Start Serial: PJ04-03339

1шт.

PH03M01458P2

COVER

COVER, Start Serial: PH05-03779

1шт.

5

PW26M00014P1

FLOOR MAT

1шт.

6

PV26M00005F1

MAT

ASSY, FLOOR

1шт.

7

PH21C01136DF

WEATHERSTRIP

1шт.

8

YN03M01159P1

GROMMET

1шт.

9

PW03M01545P1

RUBBER

1шт.

10

PW03M01598P1

COVER

1шт.

11

PW11M01071P1

PIN,8mm OD x 19mm L

1шт.

12

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

13

2420R585D23

BOLT,Wing, M8 x 20mm

WING

1шт.

14

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

15

ZW26X08000

LOCK WASHER

Lock

1шт.

16

PW03M01639P1

PLATE

1шт.

17

ZM22C08025

BOLT

SEMS, Serial Range: PJ04-03001-PJ04-03613

5шт.

17

ZM22C08025

BOLT

SEMS, Serial Range: PH05-03501-PH05-03922

5шт.

PM21C01202P1

BOLT

SEMS, Start Serial: PJ04-03614

5шт.

PM21C01202P1

BOLT

SEMS, Start Serial: PH05-03923

5шт.

18

PM03M01357P1

PLUG

1шт.

19

PV01P01007P1

WASHER

, Serial Range: PJ04-03001-PJ04-03613

4шт.

19

PV01P01007P1

WASHER

, Serial Range: PH05-03501-PH05-03922

4шт.
