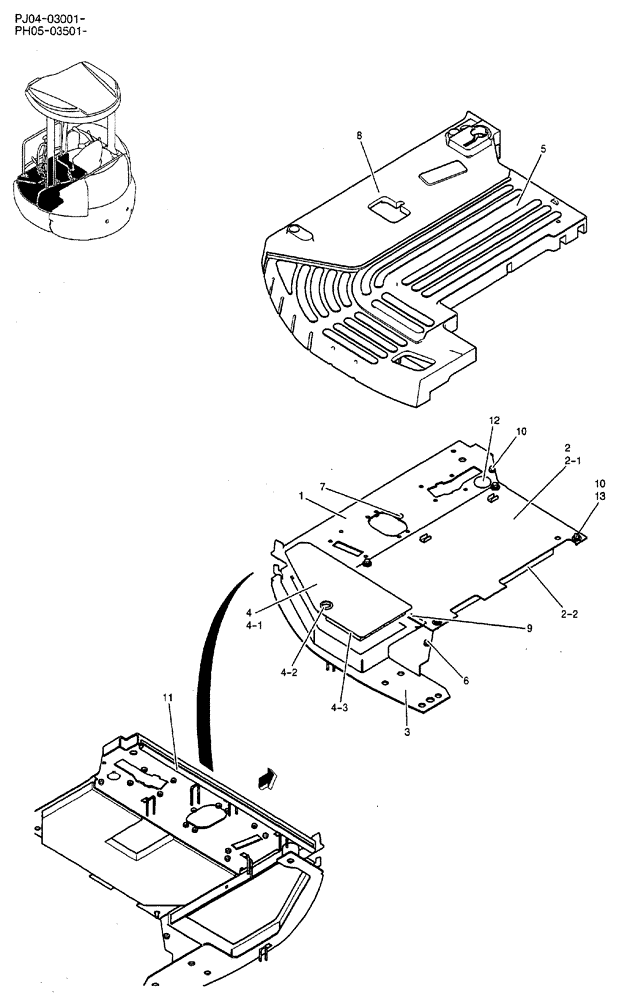

Запчасти Case CX50B (02-061) - PLATE GROUP, FLOOR (CANOPY) (05) - SUPERSTRUCTURE

PH03M00059F1

PLATE

GROUP, FLOOR

1шт.

1

PW03M01535P2

PLATE

1шт.

2

PH03M01479F1

COVER

COVER ASSY

1шт.

2-1

PW03M01592P1

COVER

COVER

1шт.

2-2

PH03M01478P1

FOAM INSULATION

INSULATION

1шт.

3

PW03M01616P1

BRACKET

PLATE

1шт.

4

PH03M01477F1

COVER ASSY

COVER ASSY

1шт.

4-1

PW03M01610P1

COVER

COVER

1шт.

4-2

2420R372D16

GROMMET

, Serial Range: PJ04-03001-PJ04-03170

1шт.

4-2

2420R372D16

GROMMET

, Serial Range: PH05-03501-PH05-03667

1шт.

4-3

PH03M01476P1

FOAM INSULATION

1шт.

5

PW26M00013P1

FLOOR MAT

1шт.

6

ZM22C08020

BOLT

SEMS

1шт.

7

YN03M01159P1

GROMMET

1шт.

8

PV26M00004F1

MAT

ASSY, FLOOR

1шт.

9

PW03M01545P1

RUBBER

1шт.

10

ZH22C08025

SEMS-BOLT, Serial Range: PJ04-03001-PJ04-03613

5шт.

10

ZH22C08025

SEMS-BOLT, Serial Range: PH05-03501-PH05-03922

5шт.

PM21C01202P1

BOLT

SEMS, Start Serial: PJ04-03614

5шт.

PM21C01202P1

BOLT

SEMS, Start Serial: PH05-03923

5шт.

11

PH21C01136DF

WEATHERSTRIP

1шт.

12

PM03M01357P1

PLUG

1шт.

13

PV01P01007P1

WASHER

, Serial Range: PJ04-03001-PJ04-03613

4шт.

13

PV01P01007P1

WASHER

, Serial Range: PH05-03501-PH05-03922

4шт.
