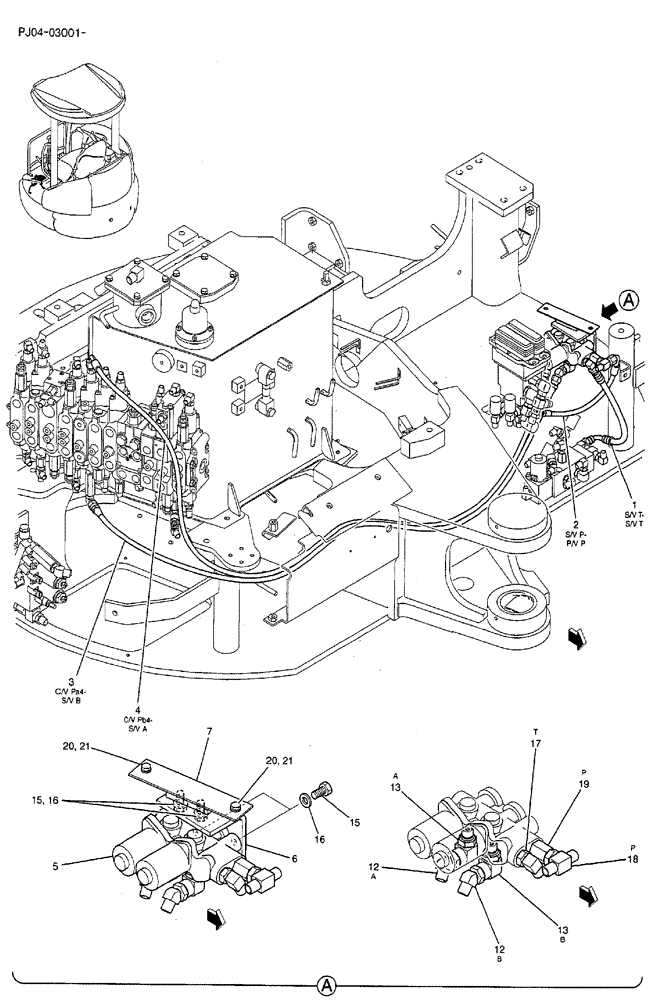

Запчасти Case CX50B (02-060) - CONTROL LINES, REMOTE (HAND CONTROL) (05) - SUPERSTRUCTURE

PY64H00032F1

LINE

CONTROL, VALVE

1шт.

1

HX32L04028DX

HOSE

1шт.

2

HX34L04034DX

HOSE,6.3mm ID x 340mm L

1шт.

3

HX24L04160DX

HOSE

1шт.

4

HX34L04200DX

HOSE

, Serial Range: PJ04-03001-PJ04-03218

1шт.

HX24L04200DX

HOSE

, Start Serial: PJ04-03219

1шт.

5

PY35V00005F2

VALVE

ASSY, SOLENOID (Used for Nibbler/Breaker Open/Close)

1шт.

SEE (C.P.M.)

1шт.

6

PH64H01050P1

BRACKET

1шт.

7

PH64H01047P1

SUPPORT

1шт.

12

HH45S04004G2

45 ELBOW

2шт.

13

PV64H01042P1

ELBOW

2шт.

15

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

4шт.

16

ZW16H10000

WASHER

4шт.

17

HH35S04004G1

90 ELBOW

1шт.

18

HH55L04004G2

TEE

1шт.

19

HH25R04004G5

HYD CONNECTOR

1шт.

20

ZS18C08020

SCREW,Hex, M8 x 20mm

, Serial Range: PJ04-03001-PJ04-03449

2шт.

ZM22C08020

BOLT

SEMS, Start Serial: PJ04-03450

2шт.

21

ZW16H08000

WASHER

, Serial Range: PJ04-03001-PJ04-03449

2шт.
