(02-058) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) P/N HX34L06135DX

Запчасти Case CX50B (02-058) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) P/N HX34L06135DX (05) - SUPERSTRUCTURE

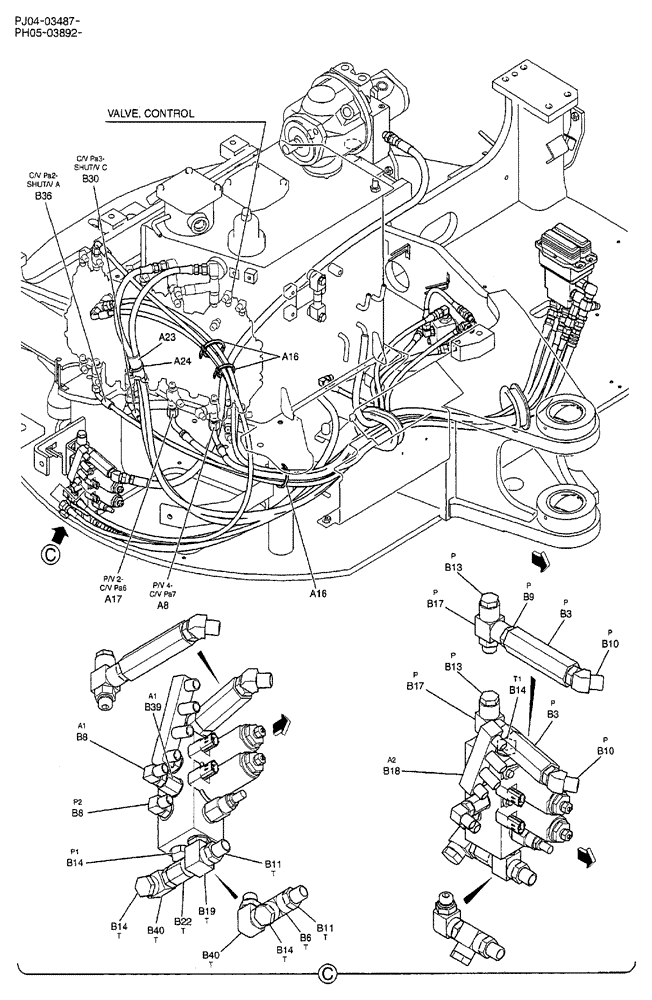

Схема запчастей Case CX50B - (02-058) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) P/N HX34L06135DX (05) - SUPERSTRUCTURE
b40
b6
b8
b8
b14
b14
a16
b40
b14
a16
b10
a24
b36
b11
a8
b13
b14
b22
a17
b11
b17
a23
b3
b3
b17
b9
b30
b19
b18
b10
b39
b13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

a8

HX34L06135DX

HOSE

HOSE

1шт.

a16

PY01P01043D8

CABLE TIE,102mm L

3шт.

a17

HX34L06145DX

HYDRAULIC HOSE

HOSE

1шт.

a23

2414Z199D30

PROTECTIVE SLEEVE

HOSE, GUARD

1шт.

a24

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.

b3

PY50V00001F1

FILTER

ASSY, INLINE, Serial Range: PJ04-03487-PJ04-04882

1шт.

b3

PY50V00001F1

FILTER

ASSY, INLINE, Serial Range: PH05-03892-PH05-04288

1шт.

YN50V00020F1

HYDRAULIC OIL FILTER

FILTER ASSY, INLINE, Serial Range: PJ04-04883-PH05-04289

1шт.

b6

HH55006006G1

TEE, Serial Range: PJ04-04883-PH05-04289

1шт.

b8

HH35S04004G1

90 ELBOW

2шт.

b9

2444Z3326

HYD CONNECTOR

CONNECTOR, Serial Range: PJ04-04883-PH05-04289

1шт.

b10

HH45S06006G1

45 ELBOW

1шт.

b11

HH25S06006G1

HYD CONNECTOR

1шт.

b13

ZE72X04000

PLUG

1шт.

b14

ZE72X06000

PLUG

3шт.

b17

PW64H01011P1

TEE

1шт.

b18

PH64H01057P1

CONNECTION

1шт.

b19

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

, Serial Range: PJ04-03487-PJ04-04882

1шт.

b19

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

, Serial Range: PH05-03892-PH05-04288

1шт.

b22

2444Z2891

HYD CONNECTOR

PJ04-03487 to PJ04-04882

1шт.

b22

2444Z2891

HYD CONNECTOR

, Serial Range: PH05-03892-PH05-04288

1шт.

b30

HX34L04140DX

HOSE,6.3mm ID x 1400mm L

1шт.

b36

HX34L04150DX

HOSE,6.3mm ID x 1500mm L

1шт.

b39

2444Z2525

HYD CONNECTOR

1шт.

b40

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.
