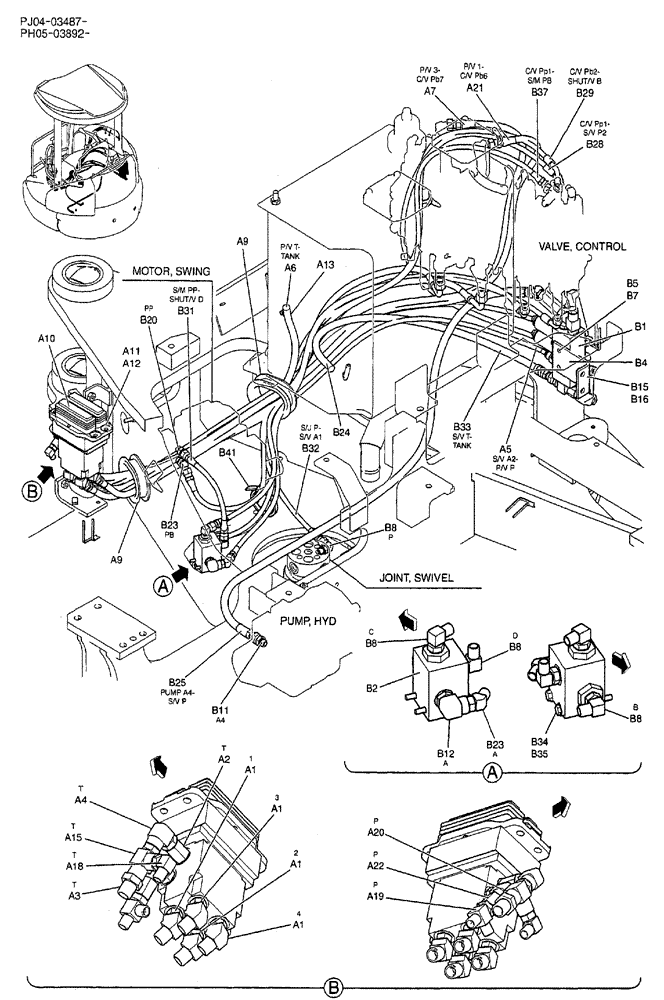

Запчасти Case CX50B (02-057) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) P/N PH62H00021F1 (05) - SUPERSTRUCTURE

PH62H00021F1

CONTROL LINES, PROPEL

1шт.

a1

HH45S06004G1

45 ELBOW

4шт.

a2

2444Z2525

HYD CONNECTOR

1шт.

a3

HH25S06004G1

HYD CONNECTOR

1шт.

a4

2444Z2894

90 ELBOW

ELBOW

1шт.

a5

HX24L04165DX

HOSE

1шт.

a6

PW68H01023DG

HOSE,9.5mm ID x 1000mm L

1шт.

a7

HX24L06220DX

HOSE

1шт.

a9

PH62H01001P1

GROMMET

2шт.

a10

PM30V00019F4

PILOT VALVE

VALVE ASSY, PILOT

1шт.

SEE (C.P.M.)

1шт.

a11

ZS18C08025

SCREW,Hex, M8 x 25mm

CAP

4шт.

a12

ZW16H08000

WASHER

4шт.

a13

ZC16X01800

CLIP

1шт.

a15

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

TEE

1шт.

a18

HH35S04004G1

90 ELBOW

1шт.

a19

HH55L04004G1

TEE

1шт.

a20

PH62H01003P1

ELBOW

(WITH FILTER)

1шт.

a21

HX24L06210DX

HOSE

1шт.

a22

PH62H01004P1

HYD CONNECTOR

CONNECTOR

1шт.

PH64H00026F1

CONTROL LINES, VALVE

1шт.

b1

PX35V00003F1

VALVE

ASSY, SOLENOID

1шт.

SEE (C.P.M.)

1шт.

b2

PH26V00001F1

VALVE

ASSY, SHUTTLE

1шт.

b4

PW64H01072P1

BRACKET

1шт.

b5

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

b7

ZW16H08000

WASHER

2шт.

b8

HH35S04004G1

90 ELBOW

4шт.

b11

HH25S06006G1

HYD CONNECTOR

1шт.

b12

2444Z2894

90 ELBOW

ELBOW

1шт.

b15

ZS18C10030

SCREW,Hex, M10 x 30mm

CAP

2шт.

b16

ZW16H10000

WASHER

WASHER

2шт.

b20

HH25S04004G1

HYD CONNECTOR

1шт.

b23

HH45S04004G1

45 ELBOW

2шт.

b24

ZC16X01800

CLIP

1шт.

b25

HX25L06170DY

HOSE,9.5mm ID x 1700mm L

1шт.

b28

HX34L04130DX

HOSE,6.3mm ID x 1300mm L

1шт.

b29

HX34L04180DX

HOSE

1шт.

b31

HX24L04028DX

HOSE

1шт.

b32

HX24L04140DX

HOSE

1шт.

b33

PW68H01023D3

HOSE,9.5mm ID x 880mm L

1шт.

b34

ZS18C06065

SCREW,Hex, M6 x 65mm

CAP

2шт.

b35

ZW16H06000

WASHER

2шт.

b37

HX24L04180DX

HOSE ASSY.

1шт.

b41

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.
