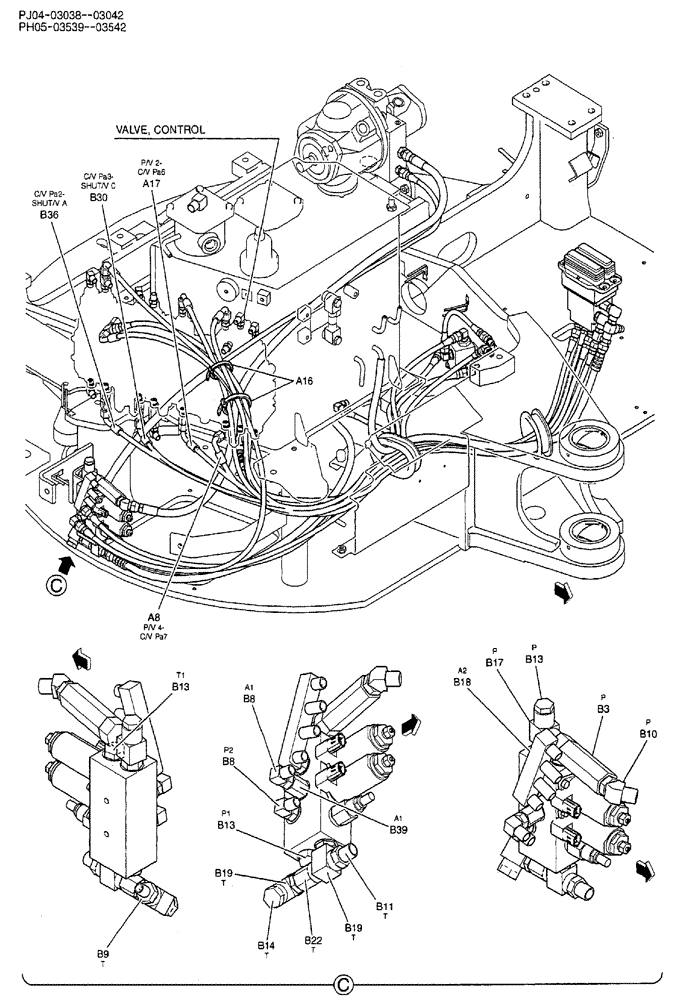

Запчасти Case CX50B (02-052) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) P/N HX34L04135DX (05) - SUPERSTRUCTURE

a8

HX34L04135DX

HOSE,6.3mm ID x 1350mm L

1шт.

a16

PY01P01043D8

CABLE TIE,102mm L

2шт.

a17

HX34L04145DX

HOSE,6.3mm ID x 1450mm L

1шт.

b3

PY50V00001F1

FILTER

ASSY, INLINE

1шт.

b8

HH35S04004G1

90 ELBOW

ELBOW

2шт.

b9

HH25S04006G1

90 ELBOW

1шт.

b10

HH45S06006G1

45 ELBOW

1шт.

b11

HH25S06006G1

HYD CONNECTOR

1шт.

b13

ZE72X04000

PLUG

3шт.

b14

ZE72X06000

PLUG

1шт.

b17

PW64H01011P1

TEE

1шт.

b18

PH64H01057P1

CONNECTION

1шт.

b19

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

2шт.

b22

2444Z2891

HYD CONNECTOR

1шт.

b30

HX34L04140DX

HOSE,6.3mm ID x 1400mm L

1шт.

b36

HX34L04150DX

HOSE,6.3mm ID x 1500mm L

1шт.

b39

2444Z2525

HYD CONNECTOR

1шт.
