(02-047) - CONTROL LINES, REMOTE (MULTI) P/N PY06H00009F1

Запчасти Case CX50B (02-047) - CONTROL LINES, REMOTE (MULTI) P/N PY06H00009F1 (05) - SUPERSTRUCTURE

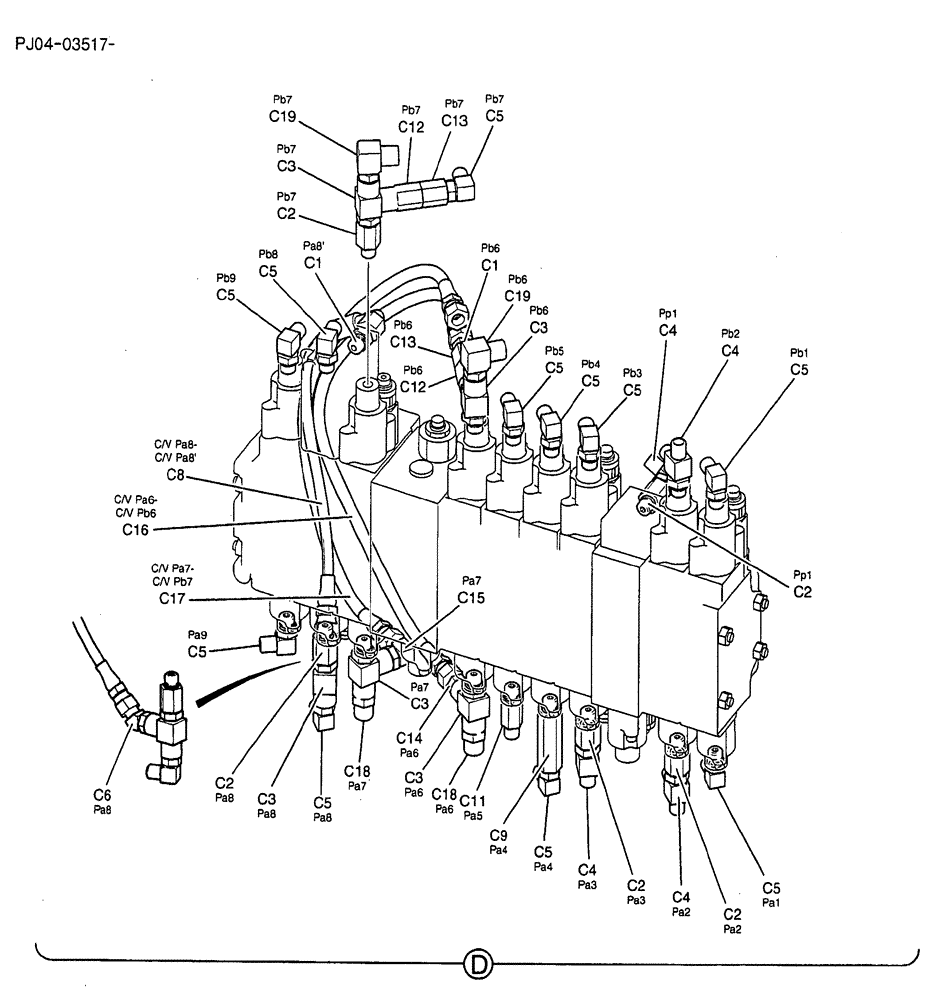

Схема запчастей Case CX50B - (02-047) - CONTROL LINES, REMOTE (MULTI) P/N PY06H00009F1 (05) - SUPERSTRUCTURE
c9
c3
c12
c5
c3
c11
c19
c5
c6
c17
c4
c2
c5
c3
c5
c5
c4
c5
c5
c3
c1
c18
c2
c3
c2
c15
c5
c16
c19
c1
c13
c4
c4
c12
c8
c14
c13
c5
c2
c5
c5
c18
c2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY06H00009F1

CONTROL LINES, MAIN

1шт.

c1

HH25S04004G1

HYD CONNECTOR

2шт.

c2

2444Z2525

HYD CONNECTOR

5шт.

c3

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

5шт.

c4

HH55L04004G1

TEE

4шт.

c5

HH35S04004G1

90 ELBOW

11шт.

c6

HH45S04004G1

45 ELBOW

1шт.

c8

HX34L04036DX

HOSE,6.3mm ID x 360mm L

1шт.

c9

HH25R04004G3

CONNECTION

1шт.

c11

PU64H01002P1

HYD CONNECTOR

1шт.

c12

HH25R04004G5

HYD CONNECTOR

2шт.

c13

YW06H01001P1

HYD CONNECTOR

CONNECTOR

2шт.

c14

HH25S04004G3

HYD CONNECTOR

CONNECTOR

1шт.

c15

HH35S04004G2

90 ELBOW

ELBOW

1шт.

c16

HX24L04074DX

HOSE

HOSE

1шт.

c17

HX24L04064DX

FLEXIBLE HOSE

HOSE

1шт.

c18

HH25S06004G3

HYD CONNECTOR

CONNECTOR

2шт.

c19

HH35S06004G1

90 ELBOW

2шт.
