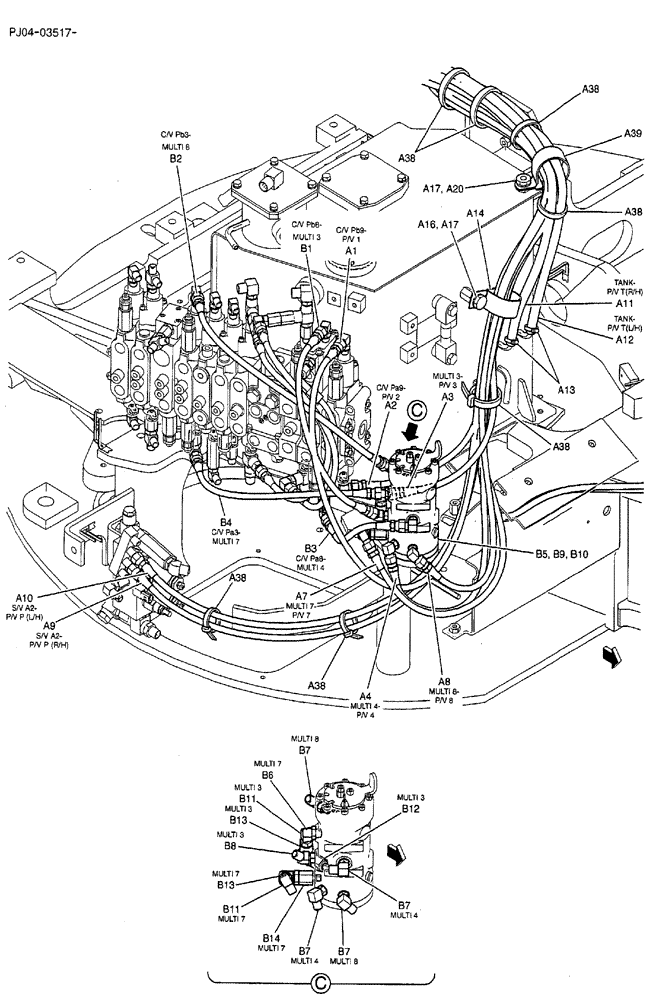

Запчасти Case CX50B (02-046) - CONTROL LINES, REMOTE (MULTI) P/N HX33L04195DR (05) - SUPERSTRUCTURE

a1

HX33L04195DR

HOSE

1шт.

a2

HX23L04125DB

HOSE,6.3mm ID x 1250mm L

1шт.

a3

HX33L04130DG

HOSE

1шт.

a4

HX23L04155DH

HOSE

1шт.

a7

HX23L04320DB

HOSE,6.3mm ID x 3200mm L

1шт.

a8

HX23L04310DG

HOSE

1шт.

a9

HX34L04195DX

HOSE,6.3mm ID x 1950mm L

1шт.

a10

HX24L04350DX

HOSE,6.3mm ID x 3500mm L

1шт.

a11

PW68H01023DA

HOSE,9.5mm ID x 800mm L

1шт.

a12

PW68H01023DF

HOSE,9.5mm ID x 2300mm L

1шт.

a13

ZC16X01800

CLIP

2шт.

a14

ZC46X50014

CLIP

2шт.

a16

ZS18C12020

SCREW,Hex, M12 x 20mm

1шт.

a17

ZW16H12000

WASHER

2шт.

a20

ZN18C12010

NUT

1шт.

a38

PY01P01043D8

CABLE TIE,102mm L

7шт.

a39

YW11P01010P1

CLIP

1шт.

PY64H00033F1

LINE

CONTROL, MULTI

1шт.

b1

HX24L04048DX

HOSE ASSY.

1шт.

b2

HX24L04058DX

HOSE

1шт.

b3

HX24L04028DX

HOSE

1шт.

b4

HX24L04044DX

HOSE

1шт.

b5

PX30V00060F1

CONTROL VALVE

ASSY

1шт.

SEE (C.P.M.)

1шт.

b6

HH25S04002G2

HYD CONNECTOR

1шт.

b7

HH35S04002G1

ELBOW

4шт.

b8

HH45S04002G1

45 ELBOW

1шт.

b9

ZS18C08025

SCREW,Hex, M8 x 25mm

CAP

4шт.

b10

ZW16H08000

WASHER

4шт.

b11

HH35S04004G1

90 ELBOW

2шт.

b12

HH25R02004G2

CONNECTION

1шт.

b13

2444Z2894

90 ELBOW

ELBOW

2шт.

b14

2444Z2335

CONNECTION

1шт.
