(02-044) - CONTROL LINES, REMOTE (MULTI) P/N PY06H00008F1

Запчасти Case CX50B (02-044) - CONTROL LINES, REMOTE (MULTI) P/N PY06H00008F1 (05) - SUPERSTRUCTURE

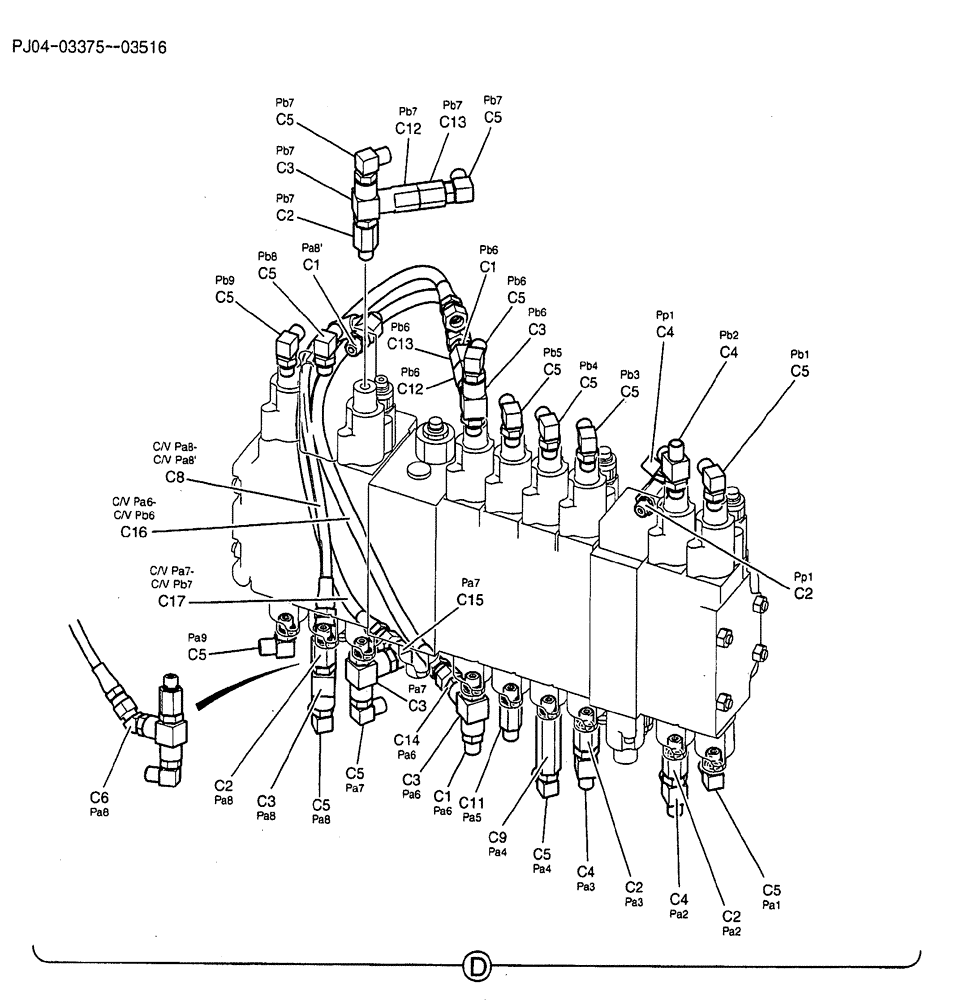

Схема запчастей Case CX50B - (02-044) - CONTROL LINES, REMOTE (MULTI) P/N PY06H00008F1 (05) - SUPERSTRUCTURE
c4
c1
c3
c5
c2
c13
c2
c15
c14
c3
c9
c11
c8
c3
c17
c3
c2
c13
c4
c4
c12
c1
c5
c2
c3
c5
c4
c1
c5
c5
c5
c5
c12
c5
c5
c6
c16
c5
c5
c2
c5
c5
c5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY06H00008F1

CONTROL LINES, MAIN

1шт.

c1

HH25S04004G1

HYD CONNECTOR

3шт.

c2

2444Z2525

HYD CONNECTOR

5шт.

c3

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

5шт.

c4

HH55L04004G1

TEE

4шт.

c5

HH35S04004G1

90 ELBOW

14шт.

c6

HH45S04004G1

45 ELBOW

1шт.

c8

HX34L04036DX

HOSE,6.3mm ID x 360mm L

1шт.

c9

HH25R04004G3

CONNECTION

1шт.

c11

PU64H01002P1

HYD CONNECTOR

1шт.

c12

HH25R04004G5

HYD CONNECTOR

2шт.

c13

PY68H01013P1

FITTING

CONNECTOR

2шт.

c14

HH25S04004G3

HYD CONNECTOR

CONNECTOR

1шт.

c15

HH35S04004G2

90 ELBOW

ELBOW

1шт.

c16

HX24L04074DX

HOSE

HOSE

1шт.

c17

HX24L04064DX

FLEXIBLE HOSE

HOSE

1шт.
