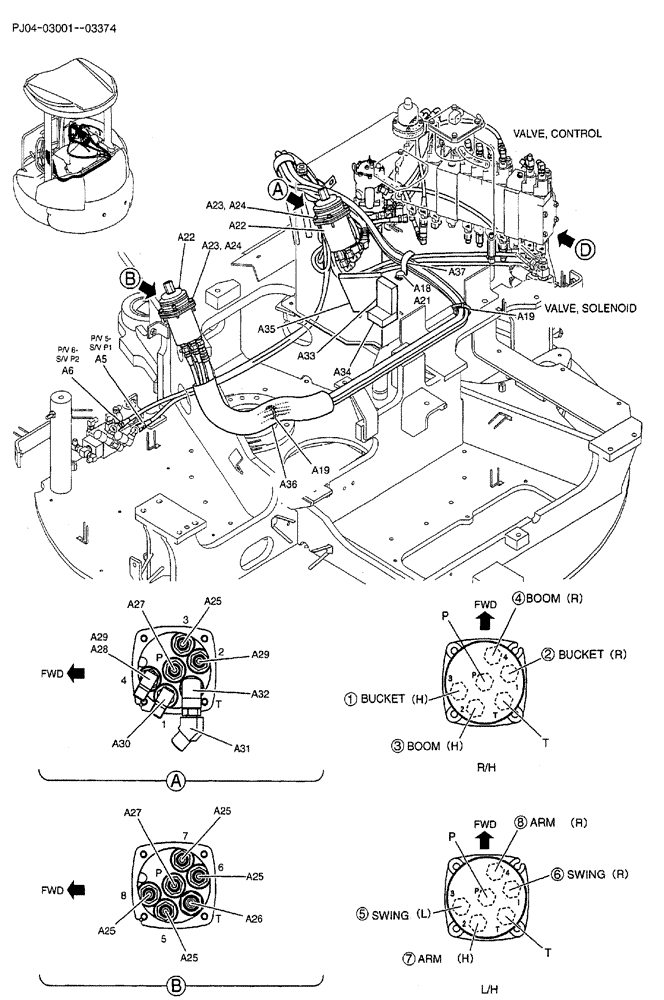

Запчасти Case CX50B (02-039) - CONTROL LINES, REMOTE (MULTI) P/N PY68H00012F1 (05) - SUPERSTRUCTURE

PY68H00012F1

LINE

CONTROL, REMOTE

1шт.

a5

HX23L04340DH

HOSE

1шт.

a6

HX23L04340DR

HOSE

1шт.

a18

ZS18C08016

SCREW,Hex, M8 x 16mm

CAP

1шт.

a19

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

2шт.

a21

ZW16H08000

WASHER

1шт.

a22

PX30V00043F1

VALVE

ASSY, PILOT

2шт.

SEE (C.P.M.)

1шт.

a23

ZS28C06030

SCREW,Hex Socket Head, M6 x 30mm

CAP

8шт.

a24

ZW16X06000

WASHER

8шт.

a25

HH25S04004G1

HYD CONNECTOR

5шт.

a26

HH25S06004G1

HYD CONNECTOR

1шт.

a27

HH25S04004G3

HYD CONNECTOR

2шт.

a28

2444Z2525

HYD CONNECTOR

1шт.

a29

HH35S04004G1

90 ELBOW

2шт.

a30

PU64H01002P1

HYD CONNECTOR

1шт.

a31

HH45S06004G1

45 ELBOW

1шт.

a32

2444Z2894

90 ELBOW

ELBOW

1шт.

a33

PM68H01054P1

FOAM INSULATION

1шт.

a34

PM68H01055P1

FOAM INSULATION

1шт.

a35

PH68H01042P1

RUBBER

1шт.

a36

PM68H01057P1

COVER

1шт.

a37

PW68H01041P1

CLAMP

1шт.
