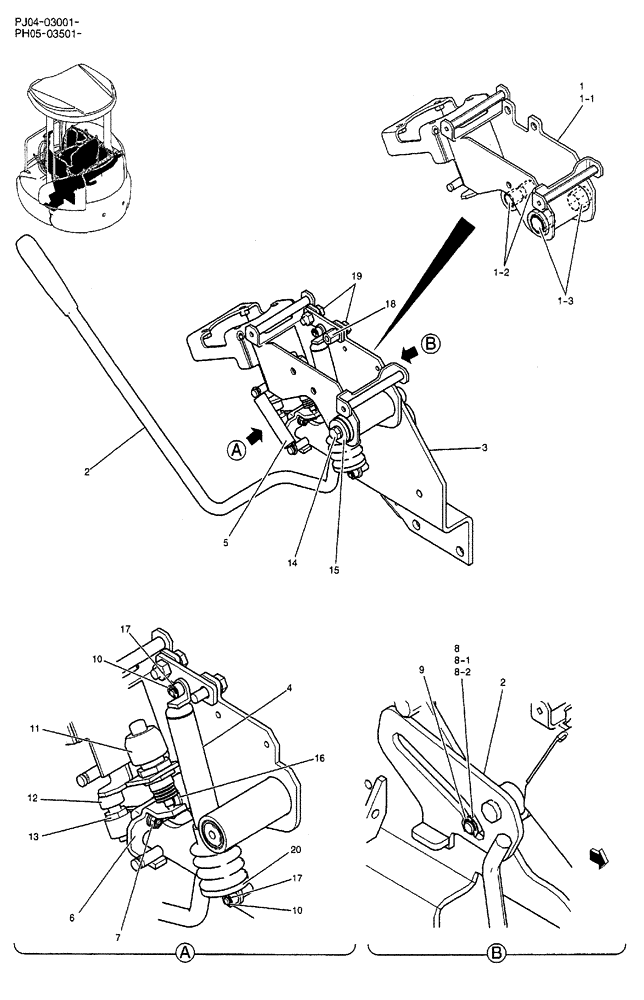

Запчасти Case CX50B (02-035) - CONTROL BOX ASSEMBLY (LEFT HAND) (05) - SUPERSTRUCTURE

PW03M00061F1

CONTROL

CONTROL BOX ASSY

1шт.

1

PW03M01500F1

CONTROL

BOX ASSY

1шт.

1-1

PW03M01501P3

CONTROL

BOX

1шт.

1-2

2405R312D1515

BUSHING,15mm ID x 17mm OD x 15mm L

2шт.

1-3

2405R312D2020

BUSHING

2шт.

2

PW03M01499P2

LOCK

, Serial Range: PJ04-03001-PJ04-03103

1шт.

2

PW03M01499P2

LOCK

, Serial Range: PH05-03501-PH05-03577

1шт.

2

PW03M01499P3

LOCK

, Serial Range: PJ04-03104-PH05-03578

1шт.

3

PW03M01421P2

SUPPORT

1шт.

4

PW03M01390P2

GAS STRUT

, Serial Range: PJ04-03001-PJ04-03976

1шт.

4

PW03M01390P2

GAS STRUT

, Serial Range: PH05-03501-PH05-04019

1шт.

4

PH03M01511F1

GAS STRUT

SPRING ASSY, Serial Range: PJ04-03977-PH05-04020

1шт.

5

PW03M01428P1

SPRING

1шт.

6

PW03M01415P1

SUPPORT

1шт.

7

ZM61C06020

BOLT

SEMS

2шт.

8

PW03M01392F1

ROLLER ASSY.,15mm OD x 15mm L

1шт.

8-1

PW03M01391P1

ROLLER

1шт.

8-2

2405R312D1015

BUSHING

1шт.

9

ZR36X00900

SNAP RING

RETAINING

1шт.

10

ZR36X00500

SNAP RING

RETAINING

2шт.

11

PA50S00001P1

LIMIT SWITCH

1шт.

12

PY06C01040P1

STOP

1шт.

13

ZN18F10008

NUT

1шт.

14

ZM12C08016

BOLT

SEMS

1шт.

15

PM02C01425P1

WASHER

1шт.

16

ZW16P14000

WASHER

1шт.

17

ZW16X06000

WASHER

, Serial Range: PJ04-03001-PJ04-03976

2шт.

17

ZW16X06000

WASHER

, Serial Range: PH05-03501-PH05-04019

2шт.

17

PH03M01512P1

COLLAR

WASHER, Serial Range: PJ04-03977-PH05-04020

2шт.

18

PW03M01593P2

LEVER

1шт.

19

ZM22C08025

BOLT

SEMS

2шт.

20

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

, Serial Range: PJ04-03977-PH05-04020

1шт.
