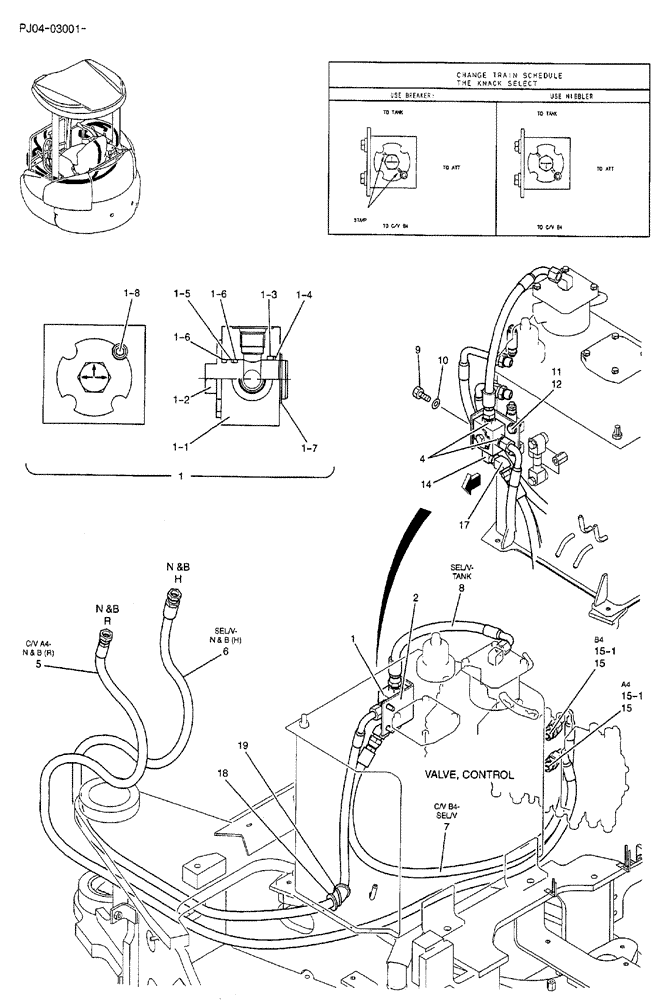

Запчасти Case CX50B (02-029) - HYDRAULIC LINES, UPPER (NIBBLER & BREAKER) (05) - SUPERSTRUCTURE

PY03H00009F1

LINE

HYD, UPP

1шт.

1

PA30V00005F1

VALVE

ASSY, SELECTOR

1шт.

1-1

PA30V01011P1

BODY

1шт.

1-2

PA30V01012P1

SHAFT

1шт.

1-3

ZD12G02500

O-RING,24.40mm ID x 30.60mm OD x 3.10mm

1шт.

1-4

ZD75G02500

BACK-UP RING

RING, BACK UP

1шт.

1-5

ZD85P02100

RING

BACK UP

1шт.

1-6

ZD12P02100

O-RING,2.4mm Thk x 20.8mm ID, 90 Duro

O-RING

2шт.

1-7

ZR16X02500

RING

RETAINING

1шт.

1-8

ZS28C06010

CAPSCREW,Hex Socket Head, M6 x 10mm

CAP

1шт.

2

PH03H01102P1

BRACKET

1шт.

4

HH25S08006G2

HYD CONNECTOR

2шт.

5

PH03H01106D1

HOSE,12.7mm ID x 2330mm L

1шт.

6

PH03H01106D2

HOSE

1шт.

7

PH03H01107D2

HOSE,12.7mm ID x 1120mm L

1шт.

8

HX32L08042DX

HOSE,12.7mm ID x 420mm L

HOSE

1шт.

9

ZS18C08020

SCREW,Hex, M8 x 20mm

4шт.

10

ZW16H08000

WASHER

4шт.

11

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

12

ZW16H10000

WASHER

WASHER

2шт.

14

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

15

HH25S0800861

CONNECTOR

2шт.

15-1

ZD12P01800

O-RING

1шт.

17

HH45S08006G1

45 ELBOW

1шт.

18

YN03H01075P1

BUSHING,21mm ID x 39mm OD x 50mm L

1шт.

19

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.
