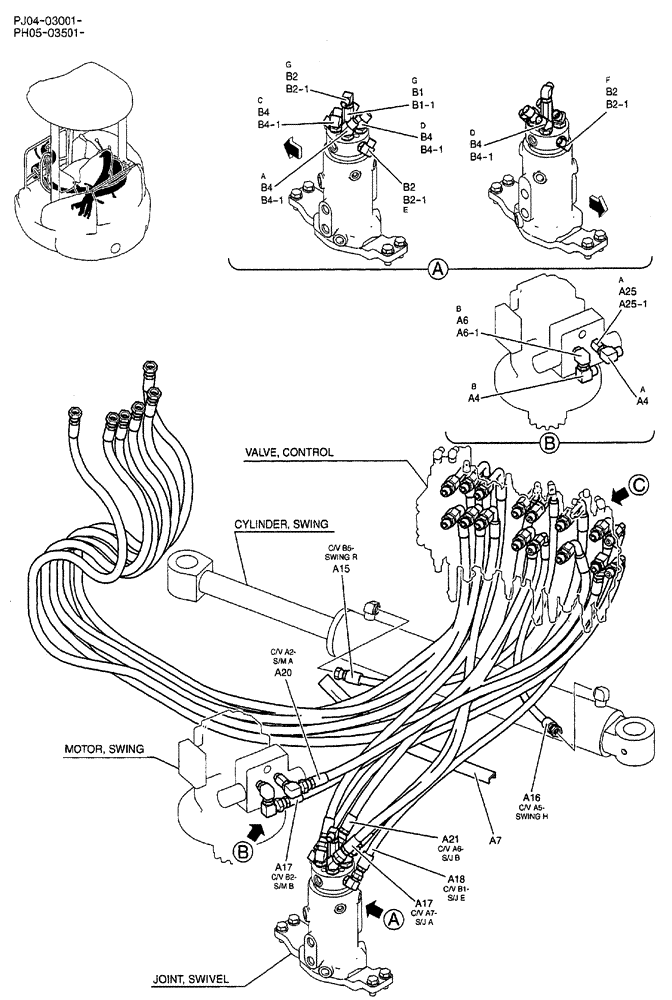

Запчасти Case CX50B (02-027) - HYDRAULIC LINES, UPPER P/N PH03H00014F1 (05) - SUPERSTRUCTURE

PH03H00014F1

HYD LINES, UPP

1шт.

a4

HH35S08006G1

90 ELBOW

2шт.

a6

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

a6-1

ZD12P01400

O-RING

1шт.

a7

YT64H01029D7

RUBBER

1шт.

a15

PW03H01101D5

HOSE,9.5mm ID x 860mm L

1шт.

a16

HX35L06058DY

HOSE,9.5mm ID x 580mm L

1шт.

a17

HX35L08120DX

HOSE,12.7mm ID x 1200mm L

2шт.

a18

HX35L06120DY

HOSE,9.5mm ID x 1200mm L

1шт.

a20

HX25L08105DY

HOSE,12.7mm ID x 1050mm L

1шт.

a21

HX35L08105DX

HOSE,12.7mm ID x 1050mm L

1шт.

a25

HH25R06006G1

HYD CONNECTOR

1шт.

a25-1

ZD12P01400

O-RING

1шт.

PH19H00009F1

HYD LINES, SWIVEL

1шт.

b1

HH25R06006G2

HYD CONNECTOR

1шт.

b1-1

ZD12P01400

O-RING

1шт.

b2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

ELBOW

3шт.

b2-1

ZD12P01400

O-RING

1шт.

b4

HH45S08008G1

45 ELBOW

4шт.

b4-1

ZD12P01800

O-RING

1шт.
