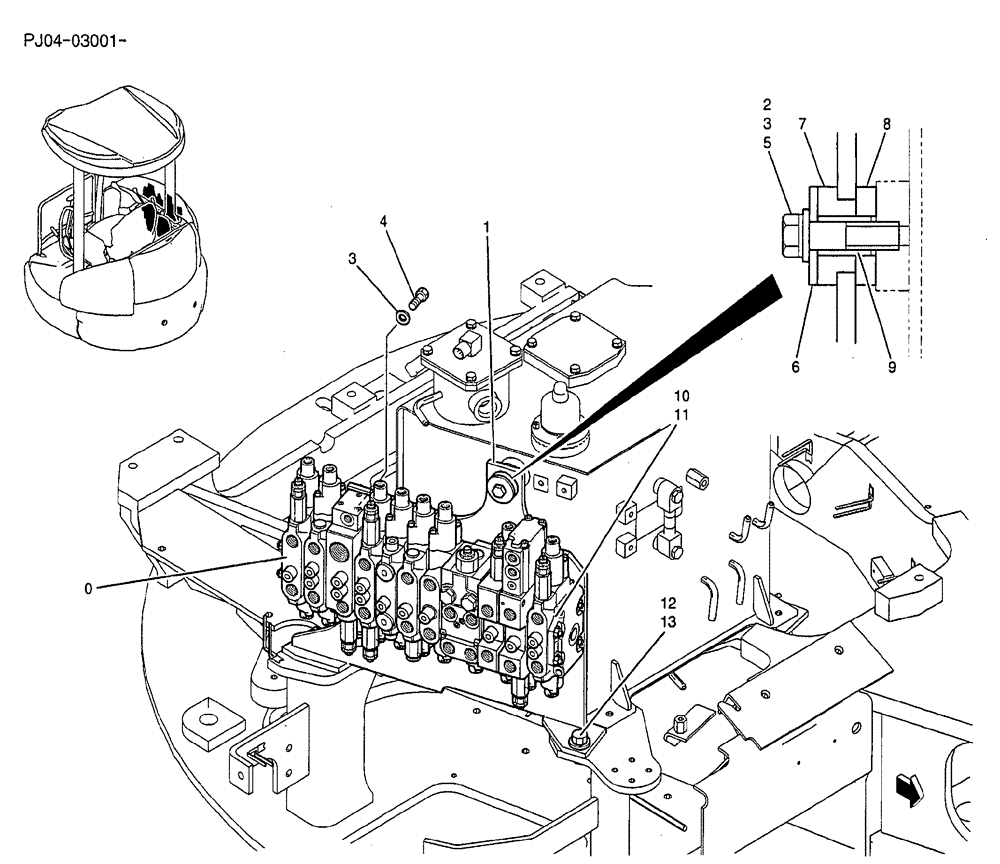

Запчасти Case CX50B (02-025) - VALVE INSTAL (05) - SUPERSTRUCTURE

0

PY30V00035F1

CONTROL VALVE

INSTAL ASSY, Serial Range: PJ04-03001-PJ04-03443

1шт.

SEE (C.P.M.)

1шт.

PY30V00035F2

CONTROL VALVE

VALVE ASSY, CONTROL, Start Serial: PJ04-03444

1шт.

SEE (C.P.M.)

1шт.

PY64H00030F1

VALVE

INSTAL

1шт.

1

PY64H01024P1

BRACKET

1шт.

2

ZS18C10050

SCREW,Hex, M10 x 50mm

CAP

1шт.

3

ZW16H10000

WASHER

WASHER

3шт.

4

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

5

ZW26X10000

LOCK WASHER

1шт.

6

2418T21137

WASHER

1шт.

7

PW64H01062P1

RUBBER

1шт.

8

2416Z649

CUSHION

RUBBER

1шт.

9

2418T17903D9

SPACER

1шт.

10

ZW16H08000

WASHER

1шт.

11

ZS18C08080

SCREW,Hex, M8 x 80mm

CAP

1шт.

12

ZW16H12000

WASHER

2шт.

13

ZS18C12040

SCREW,Hex, M12 x 40mm

CAP

2шт.
