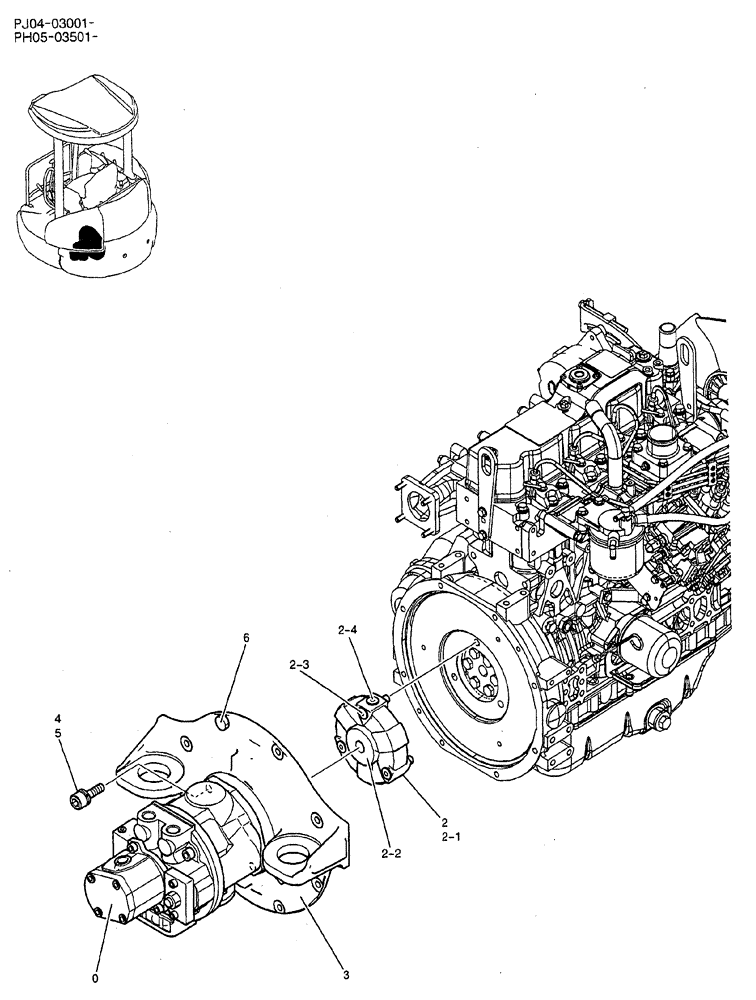

Запчасти Case CX50B (02-022) - POWER TAKE-OFF ASSEMBLY (05) - SUPERSTRUCTURE

0

PH10V00010F1

PUMP

ASSY, Serial Range: PJ04-03001-PJ04-03044

1шт.

SEE (C.P.M.)

1шт.

PH10V00010F1

PUMP

ASSY, Serial Range: PH05-03501-PH05-03546

1шт.

SEE (C.P.M.)

1шт.

PH10V00010F2

PUMP

ASSY, Serial Range: PJ04-03045-PH05-03547

1шт.

SEE (C.P.M.)

1шт.

PH30P00003F1

POWER TAKE-OFF ASSY

1шт.

2

PW30P01007F1

COUPLING

ASSY

1шт.

2-1

PW30P01002S001

COUPLING

1шт.

2-2

PW30P01002S002

HUB

1шт.

2-3

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

CAP

3шт.

2-4

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

CAP

3шт.

3

PW30P01005P1

BRACKET

, Serial Range: PJ04-03001-PJ04-03721

1шт.

3

PW30P01005P1

BRACKET

, Serial Range: PH05-03501-PH05-03972

1шт.

PW30P01005P2

BRACKET

BRACKET, Serial Range: PJ04-03722-PH05-03973

1шт.

4

PV17M01003D1

SCREW

CAP

2шт.

5

ZW16K12000

WASHER

2шт.

6

ZS18C10025

SCREW,Hex, M10 x 25mm

8шт.
