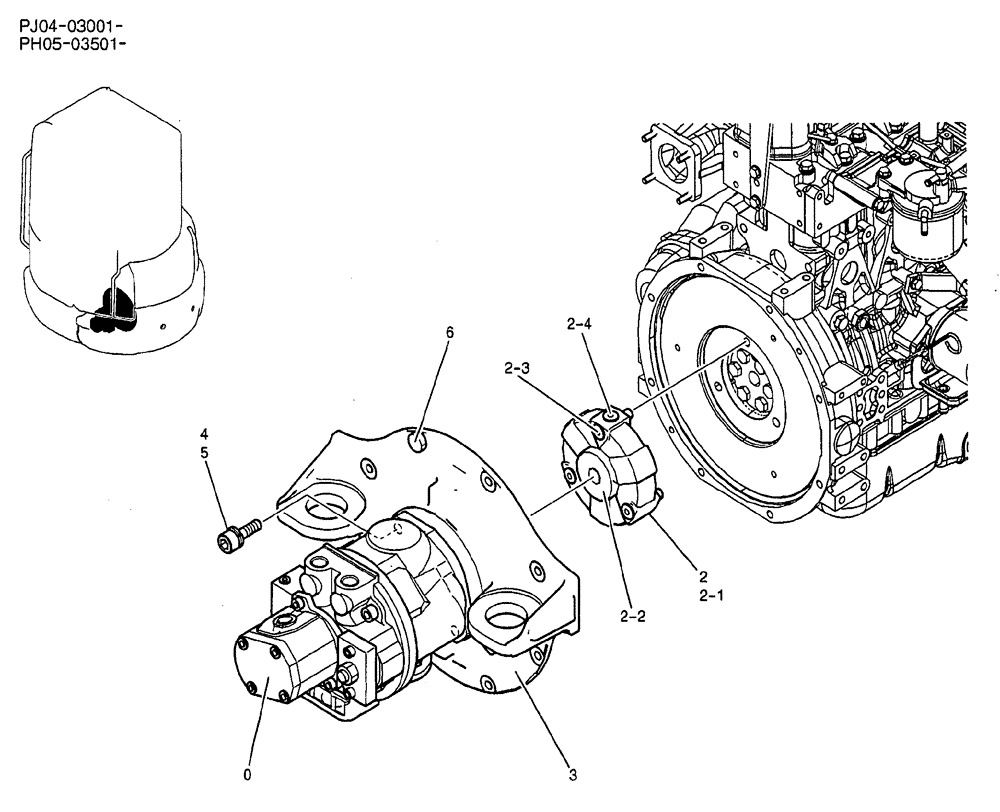

Запчасти Case CX50B (02-021) - POWER TAKE-OFF ASSEMBLY (COOLER) (05) - SUPERSTRUCTURE
6
2-4
2-1
4
5
2-2
2
0
2-3
3
№
Артикул
Название
Примечание
Количество
0
PH10V00008F2
PUMP
POWER TAKE-OFF ASSY PUMP ASSY
1шт.
SEE (C.P.M.)
1шт.
PH30P00003F1
POWER TAKE-OFF ASSY
1шт.
2
PW30P01007F1
COUPLING
ASSY
1шт.
2-1
PW30P01002S001
COUPLING
1шт.
2-2
PW30P01002S002
HUB
1шт.
2-3
PW30P01002S003
CAPSCREW,Hex Socket Head, M12 x 40mm
CAP
3шт.
2-4
PY30P01003S004
CAPSCREW,Hex Socket Head, M12 x 35mm
CAP
3шт.
3
PW30P01005P1
BRACKET
, Serial Range: PJ04-03001-PJ04-03721
1шт.
3
PW30P01005P1
BRACKET
, Serial Range: PH05-03501-PH05-03972
1шт.
PW30P01005P2
BRACKET
BRACKET, Serial Range: PJ04-03722-PH0503973
1шт.
4
PV17M01003D1
SCREW
CAP
2шт.
5
ZW16K12000
WASHER
2шт.
6
ZS18C10025
SCREW,Hex, M10 x 25mm
8шт.
Выбрано товаров: 14
