(02-020) - CONTROL ASSEMBLY (W/DECEL)

Запчасти Case CX50B (02-020) - CONTROL ASSEMBLY (W/DECEL) (05) - SUPERSTRUCTURE

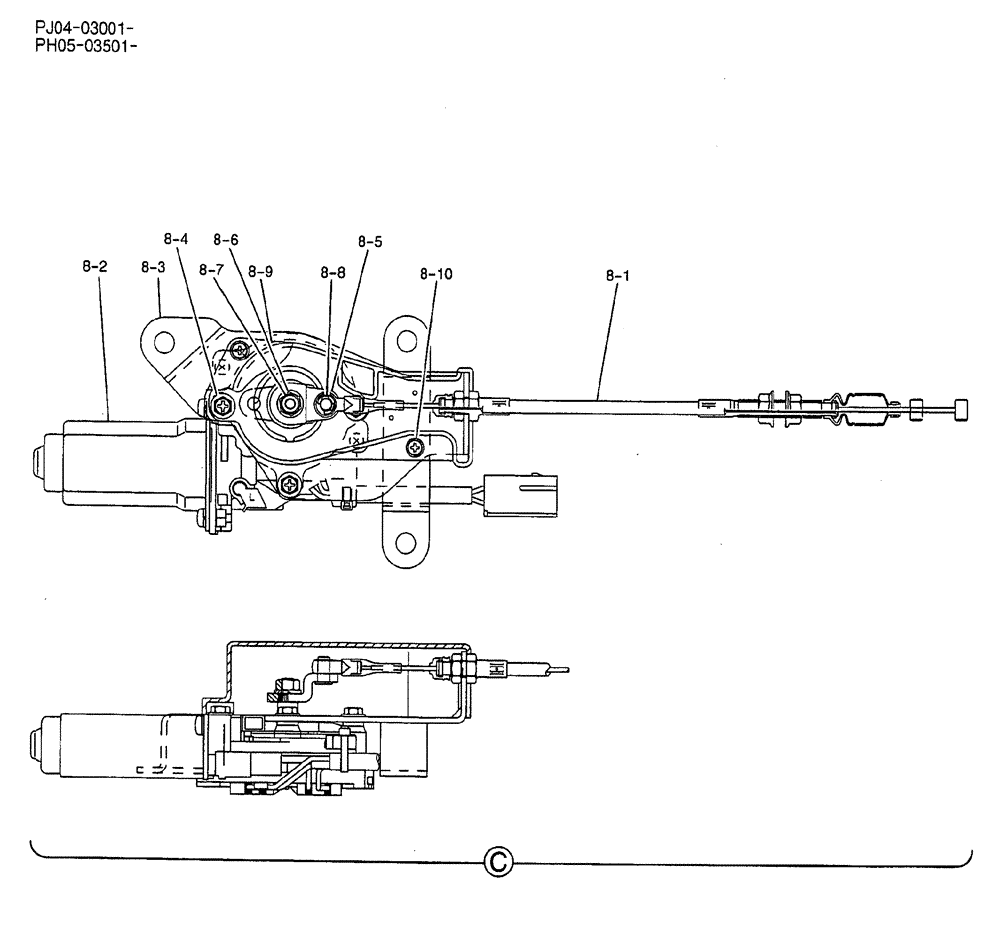

Схема запчастей Case CX50B - (02-020) - CONTROL ASSEMBLY (W/DECEL) (05) - SUPERSTRUCTURE
8-6
8-5
8-8
8-3
8-2
8-10
8-1
8-4
8-9
8-7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

8-1

PH20S00008S001

CABLE

1шт.

8-2

PM20S00009S002

GOVERNOR

MOTOR

1шт.

8-3

PW20S00012S003

BRACKET

1шт.

8-4

PM20S00009S004

SCREW

3шт.

8-5

PM20S00009S005

LEVER ASSY.

1шт.

8-6

PM20S00009S006

LOCK WASHER

1шт.

8-7

PM20S00009S007

NUT

1шт.

8-8

PM20S00009S008

RING

RETAINING

1шт.

8-9

PM20S00009S009

COVER

1шт.

8-10

PM20S00009S010

SCREW

2шт.
